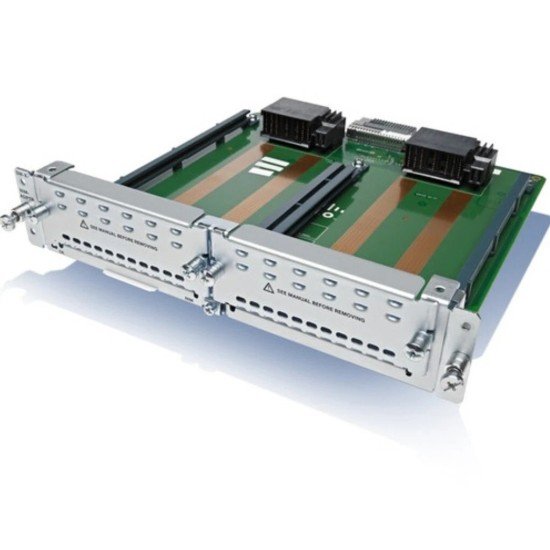

Cisco C-SM-NIM-ADPT Single-wide Service Module Carrier Card For 2x NIMs
The Cisco C‑SM‑NIM‑ADPT Single‑wide Service Module Carrier Card is a compact adapter card that enables support for two Network Interface Modules (NIMs) in compatible Cisco routers and switches. It allows flexible expansion of network interfaces, helping you add or upgrade connectivity options without replacing the chassis. Designed for reliability and seamless integration, it’s ideal for modular Cisco systems in enterprise and service provider environments.
Specification Table for the Cisco C‑SM‑NIM‑ADPT Single‑wide Service Module Carrier Card for 2× NIMs
| Specification | Details |
|---|
| Model / Part Number | Cisco C‑SM‑NIM‑ADPT |
| Product Type | Single‑wide service module carrier card (adapter) |
| Form Factor | SM‑X (Service Module form factor) |
| Supported Modules | Up to 2 × Network Interface Modules (NIMs) in one card |
| Expansion Slots | 2 × NIM slots |
| Backplane Connectivity | Dual 10 Gbps links to system backplane (no bottleneck even with 10 Gbps modules) |
| Online Insertion and Removal | Supported (hot‑swap capabilities for installed NIMs) |
| Compatible Platforms | Cisco Catalyst 8300 Series Edge Platforms and Cisco 8000 Series routers (SM‑X slots) |
| Compatibility With IOS XE | Requires appropriate Cisco IOS XE releases (e.g., 17.3.2+) |
| Function | Enables use of two NIM modules in a single‑wide SM‑X slot |
| Use Cases | WAN, voice, data, LTE, DSL network interface modules via NIM cards |
| Online Removal | Yes – supports full online insertion/removal of NIM cards |
| Physical | Metallic internal carrier adapter card (rack installable within the router chassis) |
Cisco C‑SM‑NIM‑ADPT Single‑wide Service Module Carrier Card For 2× NIMs - Description
The Cisco C‑SM‑NIM‑ADPT is a single‑wide service module carrier card designed to expand the modular capabilities of Cisco Catalyst 8300 Series Edge Platforms and similar routers that use SM‑X form‑factor slots. This adapter allows you to install and host two Network Interface Modules (NIMs) in a single SM‑X slot without limiting performance or functionality. It provides flexibility for deploying voice, WAN, or LAN connectivity modules and supports online insertion and removal for easy upgrades and maintenance.
Key Features
- Single‑wide SM‑X form‑factor carrier card supporting 2 NIM modules in one slot.
- Supports a wide range of Cisco NIMs including WAN, voice, and LAN interface modules.
- Connects to the platform backplane with dual 10 Gbps links, so it doesn’t bottleneck traffic even with high‑speed modules.
- Online insertion and removal support — add or remove NIMs without powering down the system.
- Modular design improves hardware flexibility and density for network edge devices.
How It Works
- Install into SM‑X Slot: Insert the C‑SM‑NIM‑ADPT carrier card into an SM‑X slot on a supported router platform.
- Insert NIM Modules: Plug up to two Cisco NIMs into the adapter card.
- Backplane Connection: The adapter uses dual 10 Gbps backplane links to ensure that high‑speed NIM modules can operate without bottlenecks.
- Hot‑Swap Support: Modules can be added or removed while the system is powered on to avoid network downtime.
Compatibility
- Compatible with Cisco Catalyst 8300 Series Edge Platforms that feature SM‑X module slots.
- Supports many types of Cisco NIMs such as Layer‑3 WAN, Ethernet, and other interface modules that plug into NIM slots.
Frequently Asked Questions (FAQ)
1. What does this carrier card do?
It enables you to install two NIM modules in a single SM‑X service module slot on Cisco routers.
2. Does it add network ports itself?
No — it acts as a carrier/adapter. You must install NIM modules that provide network interfaces.
3. Can NIMs be replaced while the router is running?
Yes — it supports online insertion and removal without powering down the system.
4. What platforms are supported?
Primarily Cisco Catalyst 8300 Series Edge Platforms with SM‑X slots.
5. Does it limit network performance?
No — it uses dual 10 Gbps backplane connections to ensure full throughput for installed modules.
- Call/WhatsApp: 01748173213
- ✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com
What is the price of Cisco C-SM-NIM-ADPT Single-wide Service Module Carrier Card For 2x NIMs in Bangladesh?
The lowest price of Cisco C-SM-NIM-ADPT Single-wide Service Module Carrier Card For 2x NIMs in Bangladesh is 45,000৳. You can buy the Cisco C-SM-NIM-ADPT at best price from our website or visit our Office.
For the most accurate pricing, stock availability, and warranty details, we recommend contacting us before placing your order.
