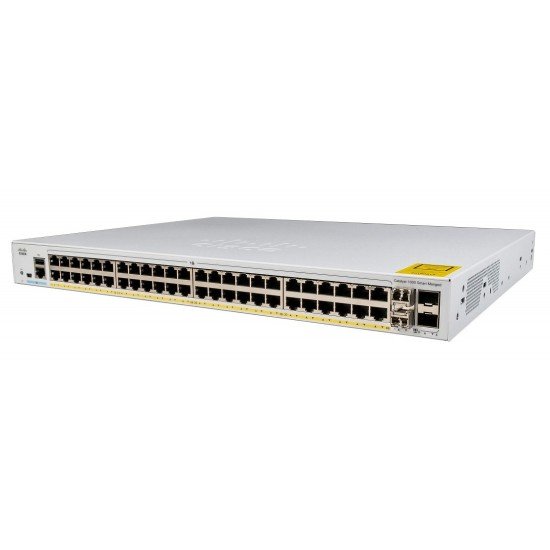

Cisco C1000-48FP-4G-L Catalyst 1000 Series Switch
The Cisco C1000-48FP-4G-L Catalyst 1000 Series Switch is a powerful, enterprise-grade Layer 2 managed switch designed for small to medium-sized businesses that require reliable, secure, and high-performance network connectivity. Developed by Cisco, this switch delivers advanced switching capabilities with simple management, making it ideal for modern office networks, branch deployments, and business-critical applications.
With 48 Gigabit Ethernet PoE+ ports and 4 Gigabit uplink ports, this switch provides flexible connectivity for IP phones, wireless access points, security cameras, and other PoE-enabled devices. It ensures stable data transfer, enhanced security, and efficient power management across your network infrastructure.
Key Features
- 48 x Gigabit Ethernet PoE+ ports for high-density device connectivity
- 4 x Gigabit uplink ports for fast backbone integration
- Power over Ethernet (PoE+) support for IP phones, cameras, and wireless APs
- Layer 2 switching with advanced network management features
- Energy-efficient design for reduced power consumption
- Enhanced security features including VLAN, ACLs, and port security
- Simple web-based GUI and CLI management options
- Rack-mountable design suitable for enterprise environments
- High reliability for 24/7 network operation
Cisco C1000-48FP-4G-L Specification Table
| Specification | Details |
|---|
| Model | Cisco C1000-48FP-4G-L |
| Series | Cisco Catalyst 1000 Series Layer 2 Managed Switch |
| Ethernet Ports | 48 × 10/100/1000 Mbps Gigabit Ethernet PoE+ (RJ-45) |
| Uplink Ports | 4 × 1G SFP (1000BASE-X) |
| PoE Standard | IEEE 802.3af / 802.3at PoE+ |
| PoE Power Budget | 740W total (Full PoE) |
| Switching Capacity | Part of Catalyst 1000 Series high-performance Gigabit switching |
| MAC Address Table | 16,000 entries |
| VLAN Support | Up to 256 active VLANs; VLAN IDs up to 4094 |
| Static Routing | Basic IPv4 static routing support |
| Jumbo Frames | Supported (up to ~9K MTU) |
| Management | CLI, Web UI, SNMP, RMON |
| Security Features | ACLs, 802.1X, DHCP Snooping, BPDU Protection |
| Console Ports | RJ-45 & USB (console/storage) |
| Form Factor | Fixed, rack-mountable 1U |
| Dimensions (W×D×H) | ~17.48 × 13.78 × 1.73 in (44.4 × 35 × 4.4 cm) |
| Weight | ~5.82 kg |
| Operating Temp. | Commercial range (0°C to ~40°C) |
| Power Input | AC 100–240V internal PSU |
| Use Case | SMB/enterprise access layer with PoE for APs, phones, cameras |
Installation Guide
Follow these steps for proper installation of the Cisco Catalyst 1000 switch:
Step 1: Unpack the Device
- Carefully remove the switch and accessories from the box. Ensure all components are included.
Step 2: Rack Mounting
- Attach mounting brackets to both sides of the switch
- Secure the switch into a standard 19-inch rack using screws
Step 3: Power Connection
- Connect the power cable to the switch power port
- Plug into a stable AC power source or UPS for protection
Step 4: Network Connection
- Connect Ethernet cables to the 48 PoE+ ports for end devices
- Use uplink ports to connect to router or core switch
Step 5: Configuration
- Access the switch via default IP address
- Login using admin credentials
- Configure VLANs, security, and network settings as needed
Step 6: Device Testing
- Check port LEDs for connectivity
- Ensure all connected devices are receiving power and network access
Compatibility
- IP Phones (VoIP systems)
- Wireless Access Points
- CCTV IP Cameras
- Routers and Firewalls
- Network Storage (NAS) devices
- Other Layer 2/Layer 3 network infrastructure devices
- Standard Ethernet-enabled devices
It integrates seamlessly into existing enterprise and SMB network environments.
Applications / Use Cases
- Corporate Office Networks
- Educational Institutions
- Hotels & Hospitality Networks
- Surveillance Systems (CCTV IP Cameras)
- ISP Access Networks
- Enterprise Branch Deployments
FAQ (Frequently Asked Questions)
1. What is the Cisco C1000-48FP-4G-L used for?
- It is used for building reliable enterprise and business networks with PoE support for devices like IP phones, cameras, and access points.
2. Does this switch support PoE+?
- Yes, it supports PoE+ on all 48 Gigabit ports, allowing power and data through a single cable.
3. Can I use this switch for CCTV systems?
- Yes, it is highly suitable for IP CCTV surveillance systems.
4. Is this a Layer 3 switch?
- No, this model is primarily a Layer 2 managed switch.
5. How many uplink ports are available?
- It has 4 Gigabit uplink ports for high-speed backbone connectivity.
6. Is it suitable for small businesses?
- Yes, it is ideal for small to medium-sized businesses and branch offices.
