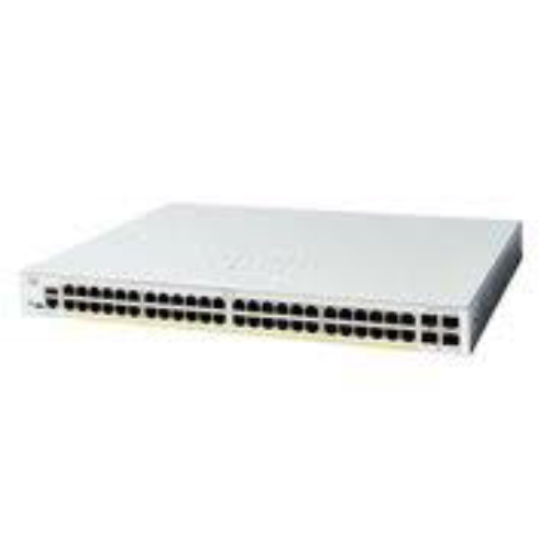

Cisco C1000-48T-4G-L – 48-Port Gigabit Managed Switch with 4× Gigabit Uplinks (Lifetime License)
The Cisco C1000-48T-4G-L is a robust 48-port Gigabit Managed Ethernet Switch designed for small to medium-sized business networks that require reliable performance, advanced Layer 2 features, and scalable connectivity. With 48 Gigabit Ethernet ports and 4 Gigabit SFP uplinks, this switch delivers high-speed network access and flexible fiber-ready connectivity for enterprise-grade deployments.
Ideal for campus access, branch offices, and wiring closets, the
Cisco Catalyst 1000-series provides easy management, security features, and efficient traffic control to keep your business network running smoothly.
Key Features
- 48 × 10/100/1000 Mbps Gigabit RJ-45 Ports for high-density connectivity
- 4 × Gigabit SFP Uplink Ports for fiber-optic links and high-speed backbone connections
- Layer 2 Managed Switch with VLAN, QoS, STP, and traffic prioritization
- Enterprise-Class Cisco IOS Software for reliable network operations
- Advanced Security Features including ACLs and port control
- Web UI, CLI & SNMP Management for easy configuration and monitoring
- Rack-Mountable 1U Design suitable for server rooms and data closets
- High Switching Capacity and forwarding performance for business traffic
Cisco C1000-48T-4G-L Specification Table
| Specification | Details |
|---|
| Model | Cisco C1000-48T-4G-L |
| Product Type | Managed Gigabit Ethernet Switch |
| Series | Cisco Catalyst 1000 Series |
| Switch Layer | Layer 2 (L2) Managed |
| Total Ports | 52 |
| RJ-45 Ports | 48 × 10/100/1000 Mbps Gigabit Ethernet (RJ-45) |
| Uplink Ports | 4 × 1G SFP (1000BASE-X) |
| Switching Capacity | ~104 Gbps |
| Forwarding Rate | ~77.38 Mpps |
| MAC Address Table | 16,000 entries |
| VLAN Support | Yes (up to 256 VLANs) |
| Static Routing | Supported (basic IPv4 static routes) |
| Jumbo Frames | Up to 10,240 bytes |
| Quality of Service (QoS) | Yes (traffic classification & prioritization) |
| Security Features | ACLs, DHCP Snooping, IGMP Snooping, RADIUS, SSH/SSL, BPDU Protection |
| Link Aggregation | Yes (802.3ad LACP) |
| Management Interfaces | CLI, Web UI, SNMP |
| Console Port | RJ-45 / Mini-USB |
| USB Port | 1 × USB 2.0 |
| Protocol Support | IEEE 802.1Q, 802.1p, 802.1D, 802.1s, 802.1x, 802.3ad, etc. |
| Operating Temp. | 0°C to 40°C (typical) |
| Dimensions (W×D×H) | ~17.3 × 11.34 × 1.73 in (Rack-mountable 1U) |
| Weight | ~3.95 kg (~8.7 lb) |
| Power Input | 110–220 V AC |
| Design | Fixed, rack-mountable 1U |
| Warranty | Enhanced Limited Lifetime License (L) |
How to Install Cisco C1000-48T-4G-L
1. Unbox & Inspect
- Unpack the switch and ensure all accessories (rack brackets, power cord) are included.
2. Mount in Rack
- Attach the rack ears and secure the switch in a standard 19-inch rack.
3. Power Connection
- Connect the AC power cable and switch on the unit.
4. Connect Devices
- Use Ethernet cables to connect computers, servers, IP phones, and other endpoints. Insert compatible SFP modules into uplink ports for fiber connections.
5. Initial Configuration
- Access the web interface or CLI via console/management port to configure VLANs, IP settings, security policies, and SNMP monitoring.
Compatibility
- Cisco routers, firewalls, and wireless controllers
- Gigabit SFP modules for fiber uplinks
- Standard IEEE networking protocols (802.3, 802.1Q, STP)
- Cisco DNA Center for centralized management (optional)
Frequently Asked Questions (FAQ)
1. Is this a managed switch?
- Yes — the Cisco C1000-48T-4G-L is a fully managed Layer 2 switch with VLAN, QoS, and security features.
2. Can it be used for fiber uplinks?
- Yes — it includes 4 Gigabit SFP uplink ports for fiber-optic connectivity.
3. Does this switch support PoE?
- No — this model does not support PoE or PoE+. For PoE power delivery, choose a PoE-enabled variant.
4. Is this suitable for business networks?
- Absolutely — it’s ideal for enterprise access layers, branch offices, and high-density user environments.
5. What management options are available?
- You can manage the switch via Web UI, CLI, and SNMP for flexible administration.
Why Buy Cisco C1000-48T-4G-L from Datacom Technologies BD?
- 100% Genuine Cisco products
- Competitive pricing in Bangladesh
- Fast delivery & professional support
- Trusted IT hardware supplier
Buy Cisco C1000-48T-4G-L – 48-Port Gigabit Managed Switch at the Best Price in Bangladesh.
In Bangladesh, you can get Cisco C1000-48T-4G-L – 48-Port Gigabit Managed Switch From Datacom Technologies BD. We have a large collection of latest Cisco Network Switch to purchase for your Data Center. Order Online Or Visit our Office to get yours at lowest price. The Cisco C1000-48T-4G-L – 48-Port Gigabit Managed Switch comes with 1 Year warranty.
