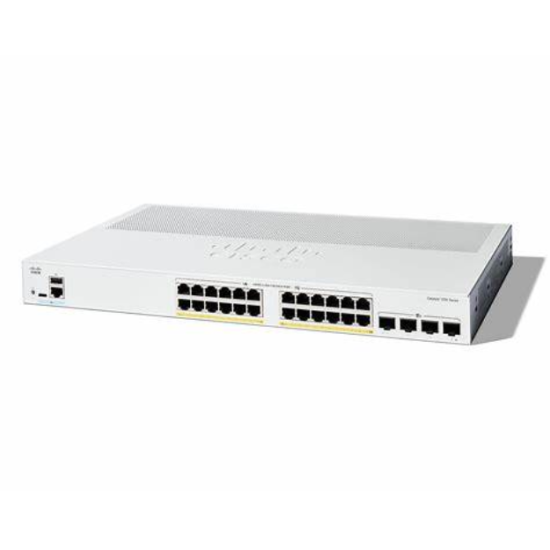

Cisco C1200-24P-4X – 24-Port Gigabit PoE+ Managed Switch
The Cisco C1200-24P-4X 24-Port Gigabit PoE+ Managed Switch is a powerful and scalable networking solution designed for small to medium-sized businesses. It delivers high-speed connectivity, advanced Layer 2/Layer 3 features, and PoE+ power delivery, making it ideal for modern enterprise networks, IP surveillance, and wireless deployments.
With 24 Gigabit PoE+ ports and 4×10G SFP+ uplinks, this switch ensures seamless data transfer, high bandwidth aggregation, and efficient power distribution across your network infrastructure.
Key Features of Cisco C1200-24P-4X
- 24 × 10/100/1000 Mbps PoE+ Ports (up to 30W per port)
- 195W Total PoE Power Budget for IP cameras, APs, and IP phones
- 4 × 10G SFP+ Uplink Ports for high-speed fiber connectivity
- Layer 2 & Layer 3 Features including VLAN, QoS, ACL, and static routing
- 128 Gbps Switching Capacity for high-performance networking
- Fanless Silent Design for noise-free operation
- Advanced Security Controls with access management and traffic filtering
- Web GUI, Mobile App & SNMP Management for easy configuration
- Rack-Mountable 1U Design for professional deployment
Cisco C1200-24P-4X Technical Specifications
| Specification | Details |
|---|
| Model | Cisco C1200-24P-4X |
| Product Type | Managed Gigabit PoE+ Switch |
| Switch Layer | Layer 2 / Layer 3 |
| Total Ports | 28 Ports |
| RJ-45 Ports | 24 × 10/100/1000 Gigabit Ethernet (PoE+) |
| Uplink Ports | 4 × 10G SFP+ |
| PoE Standard | IEEE 802.3af / 802.3at (PoE+) |
| PoE Power Budget | 195W |
| Max PoE per Port | Up to 30W |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.23 Mpps |
| MAC Address Table | ~8K entries |
| Packet Buffer | 1.5 MB |
| Jumbo Frame Support | Up to 9K bytes |
| VLAN Support | Yes (802.1Q VLAN) |
| Layer 3 Features | Static Routing (IPv4/IPv6) |
| QoS Support | Yes (Traffic prioritization) |
| Security Features | ACL, 802.1X, DHCP Snooping, Port Security |
| Multicast Support | IGMP Snooping |
| Management | Web UI, CLI, Cisco Business Dashboard |
| Link Aggregation | IEEE 802.3ad (LACP) |
| Design | Fanless (Silent Operation) |
| Power Consumption | ~30W (base), higher with PoE |
| Dimensions (W×D×H) | 445 × 299 × 44 mm |
| Weight | ~3.68 kg |
| Mounting | Rack-mountable (1U) |
| Use Case | SMB, Office Networks, IP Cameras, WiFi APs, VoIP |
How to Install Cisco C1200-24P-4X
1. Unbox the Device
- Check the package contents including switch, power cable, and mounting kit.
2. Rack Installation
- Attach rack brackets
- Mount into a standard 19-inch rack
3. Power Setup
- Connect AC power cable
- Turn on the switch
4. Connect Devices
- Use Ethernet cables for PCs, servers, and routers
- Connect PoE devices (IP cameras, access points, IP phones)
- Insert SFP+ modules for fiber uplinks
5. Configure the Switch
- Access via default IP using browser
- Setup VLAN, IP address, and security settings
- Monitor via web interface or Cisco dashboard
Compatibility
The Cisco C1200-24P-4X Managed PoE+ Switch is compatible with:
- Cisco routers, firewalls, and access points
- IP cameras (CCTV systems)
- VoIP phones and wireless access points
- Fiber modules (10G SFP+ transceivers)
- Standard IEEE networking protocols (802.3, 802.1Q, etc.)
- Enterprise LAN and SMB network environments
Frequently Asked Questions (FAQ)
- It is used for connecting and powering network devices like IP cameras, access points, and VoIP phones using PoE+.
2. Does this switch support PoE+?
- Yes, it supports PoE+ (IEEE 802.3af/at) with up to 30W per port.
3. What is the PoE power budget?
- The switch provides a total 195W PoE budget, suitable for multiple powered devices.
4. Can I use fiber uplinks?
- Yes, it has 4×10G SFP+ ports for high-speed fiber connectivity.
5. Is this switch suitable for CCTV networks?
- Yes, it is ideal for IP surveillance systems, powering cameras directly via PoE.
6. Does it support Layer 3 routing?
- Yes, it supports static routing, enabling inter-VLAN communication.
Why Buy Cisco C1200-24P-4X from Datacom Technologies BD?
- 100% genuine Cisco networking products
- Best price in Bangladesh
- Fast delivery & after-sales support
- Trusted IT hardware supplier
Buy Cisco C1200-24P-4X 24-Port Gigabit PoE+ Managed Switch at the Best Price in Bangladesh.
In Bangladesh, you can get Cisco C1200-24P-4X – 24-Port Gigabit PoE+ Managed Switch with 4× 10G Uplinks From Datacom Technologies BD. We have a large collection of latest Cisco Network Switch to purchase for your Data Center. Order Online Or Visit our Office to get yours at lowest price. The Cisco C1200-24P-4X – 24-Port Gigabit PoE+ Managed Switch comes with 1 Year warranty.
