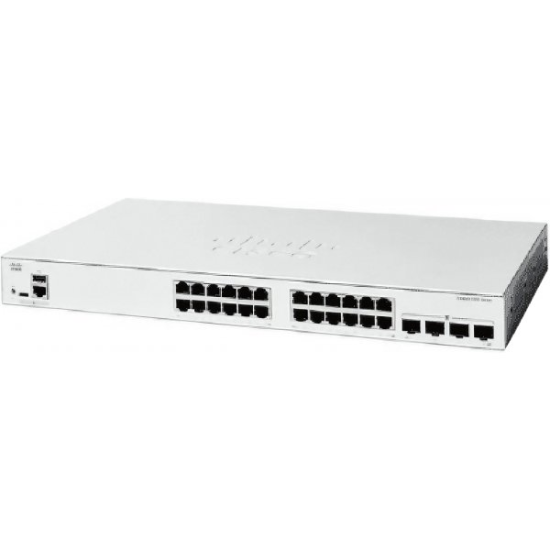

Cisco C1200-24T-4G – 24-Port Gigabit Managed Switch
The Cisco C1200-24T-4G 24-Port Gigabit Managed Switch is a high-performance and scalable networking solution designed for small to medium-sized businesses. Built with reliability and advanced Layer 2 features, this switch delivers seamless connectivity, enhanced security, and efficient traffic management for modern enterprise networks.
With
24 Gigabit Ethernet ports and
4 dedicated Gigabit uplink ports, the
Cisco C1200-24T-4G ensures high-speed data transfer and smooth integration into your existing network infrastructure.
Key Features of Cisco C1200-24T-4G
- 24 × 10/100/1000 Mbps Gigabit Ethernet Ports for high-speed LAN connectivity
- 4 × Gigabit SFP Uplink Ports for fiber connectivity and long-distance networking
- Layer 2 Managed Switching with VLAN, QoS, and traffic prioritization
- Advanced Security Features including Access Control Lists (ACLs) and port security
- Energy Efficient Ethernet (EEE) to reduce power consumption
- Web-based Management Interface for easy configuration and monitoring
- Rack-Mountable Design ideal for server rooms and data centers
- Reliable Cisco Performance for business-critical applications
Cisco C1200-24T-4G Technical Specifications
| Specification | Details |
|---|
| Model | Cisco C1200-24T-4G |
| Product Type | Managed Gigabit Ethernet Switch |
| Switch Layer | Layer 2 / Layer 3 |
| Total Ports | 28 Ports |
| RJ-45 Ports | 24 × 10/100/1000 Gigabit Ethernet |
| Uplink Ports | 4 × 1G SFP |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.66 Mpps |
| MAC Address Table | 8K entries |
| Packet Buffer | 1.5 MB |
| Jumbo Frame Support | Up to 9000 bytes |
| VLAN Support | Yes (802.1Q, up to 255 VLANs) |
| Layer 3 Features | Static Routing (IPv4/IPv6) |
| QoS Support | Yes (Traffic prioritization) |
| Security Features | ACL, 802.1X, DHCP Snooping, Port Security |
| Management | Web UI, CLI, Cisco Business Dashboard |
| Link Aggregation | IEEE 802.3ad (LACP) |
| Multicast Support | IGMP Snooping v1/v2/v3 |
| Power Consumption | ~14W (typical) |
| PoE Support | No |
| Design | Fanless (Silent Operation) |
| Dimensions (W×D×H) | 445 × 240 × 44 mm |
| Weight | ~2.6 kg |
| Operating Temperature | 0°C to 50°C |
| Mounting | Rack-mountable (1U) |
How to Install Cisco C1200-24T-4G
Follow these simple steps to install your switch:
1. Unbox and Inspect
- Carefully unpack the Cisco switch and ensure all accessories are included.
2. Rack Mount Setup
- Attach the mounting brackets
- Secure the switch into a standard 19-inch rack
3. Power Connection
- Connect the power cable
- Turn on the device
4. Connect Network Cables
- Use Ethernet cables to connect PCs, routers, or servers
- Insert SFP modules for fiber uplinks if required
5. Initial Configuration
- Access the web interface via default IP
- Configure VLANs, IP settings, and security options
Compatibility
The Cisco C1200-24T-4G Managed Switch is compatible with:
- Cisco routers and firewalls
- Layer 2 & Layer 3 enterprise networks
- Fiber modules (Gigabit SFP transceivers)
- Network devices such as PCs, IP phones, and servers
- Standard networking protocols (IEEE 802.3, 802.1Q, etc.)
This makes it ideal for integration into existing Cisco or multi-vendor environments.
Frequently Asked Questions (FAQ)
1. What is the use of Cisco C1200-24T-4G switch?
It is used to connect multiple devices within a network, providing fast and secure data communication for offices and businesses.
2. Does this switch support VLAN?
- Yes, it supports 802.1Q VLAN, allowing network segmentation and improved security.
3. Can I use fiber with this switch?
- Yes, the 4 SFP uplink ports allow fiber optic connectivity using compatible SFP modules.
4. Is this switch suitable for small businesses?
- Absolutely. It is designed for SMB networks, offering scalability and advanced management features.
5. Does it support PoE?
- No, the Cisco C1200-24T-4G does not support PoE. You will need a PoE switch if power over Ethernet is required.
6. How do I configure the switch?
- You can configure it via a web-based GUI or SNMP management interface.
Buy Cisco C1200-24T-4G – 24-Port Gigabit Managed Switch at the Best Price in Bangladesh.
In Bangladesh, you can get Cisco C1200-24T-4G – 24-Port Gigabit Managed Switch From Datacom Technologies BD. We have a large collection of latest Cisco Network Switch to purchase for your Data Center. Order Online Or Visit our Office to get yours at lowest price. The Cisco C1200-24T-4G – 24-Port Gigabit Managed Switch comes with 1 Year warranty.
