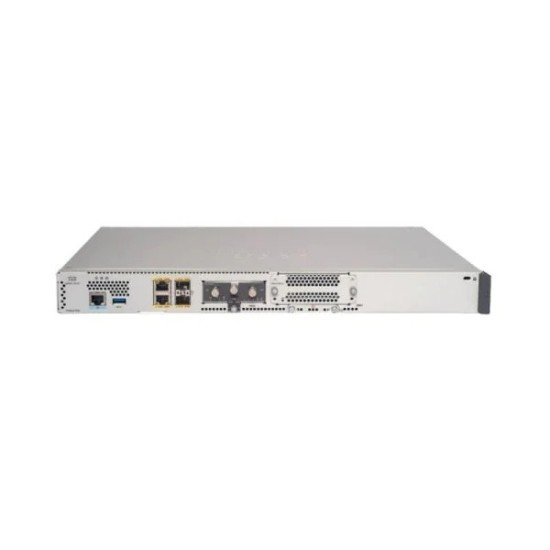

Cisco C8200L-1N-4T Catalyst 8200 Series Router
The Cisco C8200L‑1N‑4T Catalyst 8200 Series Router is a versatile next‑generation edge router ideal for secure WAN deployments and small to mid‑sized enterprise networks. It features 1 network module slot and 4× Gigabit Ethernet ports, providing flexible connectivity and high throughput for routing and security services. With built‑in support for Cisco SD‑WAN, advanced security, and cloud‑ready features, this router delivers reliable performance and simplified management across distributed networks.
Cisco C8200L-1N-4T Catalyst 8200 Series Router Specification Table:
| Specification | Details |
|---|
| Model / Part Number | Cisco C8200L‑1N‑4T |
| Series | Cisco Catalyst 8200 Series Edge Platforms |
| Router Type | Enterprise / Branch Edge Router (SD‑WAN capable) |
| Form Factor | 1 RU Rack‑mount |
| CPU | Intel x86 multi‑core processor (4 cores) |
| DRAM Memory | 4 GB (default) |
| Flash Memory | 8 GB onboard flash |
| M.2 Storage | Upgradeable (no default) |
| WAN Ports | 4 × Gigabit Ethernet WAN (2 × SFP + 2 × RJ45) |
| Expansion Slots | 1 × NIM slot, 1 × PIM slot |
| IPv4 Forwarding Throughput | Up to ~3.8 Gbps |
| SD‑WAN IPsec Throughput | Up to ~500 Mbps |
| IPsec VPN Throughput | Up to ~500 Mbps |
| SD‑WAN Overlay Tunnels | Up to ~1500 tunnels |
| IPsec SVTI Tunnels | Up to ~1500 |
| Access Control Lists (ACLs) | ~4000 ACLs per system |
| IPv4 Routes Supported | ~800,000 default (upgradable with memory) |
| IPv6 Routes Supported | ~800,000 default (upgradable) |
| NAT Sessions | ~600,000 with default memory |
| Firewall Sessions | ~512,000 |
| Queues | ~16,000 |
| VRF Instances | ~2000 |
| Supported Protocols | IPsec, NAT, OSPF, BGP, RIP, EIGRP, MPLS (varies by software) |
| Management Interfaces | Console, AUX, Ethernet management (varies) |
| Operating Temperature | Typical enterprise range (varies by region) |
| Power Supply | Internal AC PSU |
| Use Cases | Branch routing, SD‑WAN integration, secure VPN edge |
Cisco C8200L‑1N‑4T Catalyst 8200 Series Router — Full Description, Features, Installation, Compatibility & FAQ
The Cisco C8200L‑1N‑4T is a 1‑Rack Unit (1RU) enterprise edge router from the Cisco Catalyst 8200 Series, designed for branch offices, retail locations, and enterprise edge deployments. It provides modular scalability, cloud‑ready SD‑WAN services, and integrated security in a compact form factor. This model includes 4 × 1 Gigabit Ethernet WAN ports and a network interface module (NIM) slot for flexible expansion and connectivity options. The router is powered by Cisco IOS XE and supports modern routing, security, and SD‑WAN technologies to deliver efficient, secure, and reliable network connectivity for distributed sites.
Key Features
- 1RU rack‑mountable edge router for enterprise and branch locations.
- 4 × 1G WAN ports (2 × RJ45 copper + 2 × SFP) for versatile WAN connectivity.
- 1 NIM slot + 1 PIM slot for modular network expansion.
- Intel x86 multicore CPU with 4 GB DRAM (default) and 8 GB flash.
- Embedded IPsec VPN hardware acceleration supporting up to 500 Mbps IPsec throughput.
- Supports SD‑WAN overlay tunnels scale up to ~1500 with advanced policies.
- IPv4 forwarding throughput up to ~3.8 Gbps in non‑SD‑WAN mode.
- Modular and scalable architecture ideal for branch networks and distributed environments.
- Cisco IOS XE provides advanced routing, security, and programmability.
How to Install Cisco C8200L‑1N‑4T
1. Rack Mount the Router
- Attach rack ears/brackets to the router chassis.
- Mount into a standard 19‑inch rack and secure with screws.
2. Install Power Supply
- Connect the router to AC power (120 V/230 V).
- Ensure power redundancy or UPS support if needed.
3. Connect WAN and LAN Interfaces
- Use Ethernet cables for the RJ45 WAN connections.
- Insert SFP modules and fiber or copper SFP as required.
- Connect LAN side devices (switches, servers) as needed.
4. Optional Modules
- Install Network Interface Module (NIM) for additional interfaces or specialized connectivity.
- Use Pluggable Interface Modules (PIM) for cellular, DSL, or other WAN types.
5. Configure Router
- Connect a console cable to the console port.
- Use terminal software (PuTTY/Terminal) to access CLI.
- Configure management IP, routing protocols, VPN, SD‑WAN policies, and security features.
Compatibility
✔ Modular Expansion
- Network Interface Modules (NIMs) for additional WAN/LAN connectivity.
- PIM Modules for LTE/5G or alternative WAN interfaces.
✔ Software & SD‑WAN
- Works with Cisco SD‑WAN (vManage) for centralized management and policies.
- Compatible with Cisco Catalyst Center and programmable APIs.
✔ Security & Routing
- Supports IPsec VPN, advanced routing protocols (OSPF, BGP).
Frequently Asked Questions (FAQ)
1. What type of router is the C8200L‑1N‑4T?
It is a compact rack‑mount edge router designed for small to mid‑size branch deployments with SD‑WAN and secure WAN connectivity.
2. How many WAN ports does it have?
It includes 4 × 1 Gigabit Ethernet WAN ports (2 × RJ45 + 2 × SFP) for flexible WAN links.
3. What is the performance of this router?
It supports IPv4 routing up to ≈3.8 Gbps and ≈500 Mbps IPsec VPN throughput.
4. Can I expand the interfaces?
Yes — it includes 1 NIM slot and 1 PIM slot for additional modules and connectivity options.
5. Does it support SD‑WAN?
Yes — the Catalyst 8200 series supports Cisco SD‑WAN with overlay tunnel scaling.
- Call/WhatsApp: 01748173213
- ✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com
What is the price of Cisco C8200L-1N-4T Catalyst 8200 Series Router in Bangladesh?
The lowest price of Cisco C8200L-1N-4T Catalyst 8200 Series Router in Bangladesh is 160,000৳. You can buy the Cisco C8200L-1N-4T at best price from our website or visit our Office.
For the most accurate pricing, stock availability, and warranty details, we recommend contacting us before placing your order.
