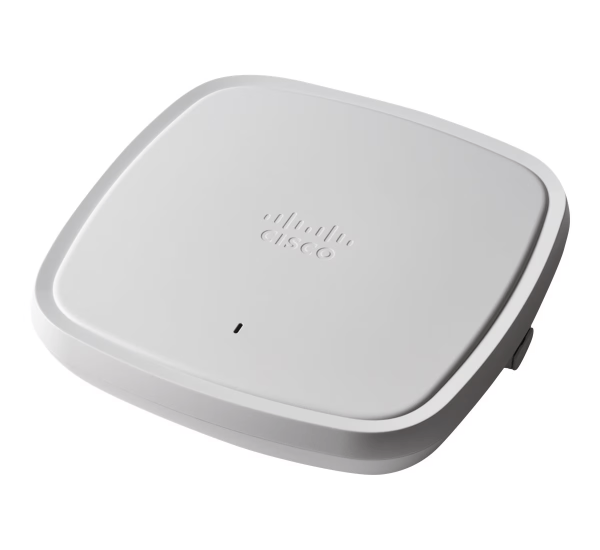

Cisco Catalyst C9105AXI-C Wi-Fi 6 Indoor Access Point – Dual-Radio 2x2 MIMO, 1.488 Gbps
The Cisco Catalyst C9105AXI-C is a compact enterprise Wi-Fi 6 indoor access point designed for entry-level and small to medium-sized wireless deployments. It provides simultaneous 2.4 GHz and 5 GHz connectivity using 2x2:2 MU-MIMO radios with integrated internal antennas.
The C9105AXI-C combines Wi-Fi 6 technologies including uplink and downlink OFDMA, MU-MIMO, BSS Coloring, Target Wake Time and 1024-QAM with Cisco enterprise wireless management capabilities. Its compact design makes it suitable for offices, branch locations, home and micro-office environments.
The access point supports a maximum aggregate PHY data rate of up to 1.488 Gbps and provides Gigabit Ethernet connectivity. Integrated Bluetooth Low Energy provides additional capability for enterprise IoT and location-aware applications.
Cisco C9105AXI-C Key Features
- Wi-Fi 6 (IEEE 802.11ax) enterprise indoor access point
- Dual-band, dual-concurrent 2x2:2 MU-MIMO radios
- 2.4 GHz and 5 GHz wireless operation
- Up to 1.488 Gbps maximum PHY data rate
- Integrated internal omnidirectional antennas
- Compact form factor for space-constrained deployments
- Gigabit Ethernet uplink
- Integrated Bluetooth Low Energy IoT radio
- Cisco Spectrum Intelligence capabilities
- Uplink and downlink OFDMA
- MU-MIMO and 802.11ax beamforming
- BSS Coloring and Target Wake Time
- 1024-QAM for higher Wi-Fi 6 data rates
- WPA3 enterprise security support
Technical Specifications
| Specification | Details |
|---|
| Brand | Cisco |
| Model | C9105AXI-C |
| Series | Cisco Catalyst 9105AX Series |
| Product Type | Indoor Enterprise Wireless Access Point |
| Wireless Standard | IEEE 802.11ax (Wi-Fi 6) |
| Radio Architecture | Dual-band, dual-concurrent |
| 2.4 GHz Radio | 2x2:2 MU-MIMO, two spatial streams |
| 5 GHz Radio | 2x2:2 MU-MIMO, two spatial streams |
| Maximum PHY Data Rate | Up to 1.488 Gbps |
| Channel Width | 20/40/80 MHz |
| Antennas | Integrated internal omnidirectional antennas |
| 2.4 GHz Antenna Gain | Up to 4 dBi peak |
| 5 GHz Antenna Gain | Up to 5 dBi peak |
| Ethernet | 1 x 10/100/1000BASE-T Gigabit Ethernet |
| Bluetooth | Integrated Bluetooth Low Energy |
| IoT | Built-in Bluetooth Low Energy IoT radio |
| RF Intelligence | Cisco Spectrum Intelligence |
| Wireless Features | OFDMA, MU-MIMO, BSS Coloring, TWT, beamforming |
| Security | WPA2, WPA3 and 802.1X enterprise security |
| Management | Cisco wireless controllers and Cisco DNA ecosystem |
| Power | PoE/PoE+ depending on deployment configuration |
| Operating Temperature | 0°C to 50°C |
| Dimensions | 150 x 150 x 30 mm |
| Weight | Approximately 329.5 g |
| Deployment | Indoor |
Compact Wi-Fi 6 Enterprise Access Point
The Cisco Catalyst C9105AXI-C is part of Cisco's compact Catalyst 9105AX Series. Cisco positions the 9105AXI for entry-level deployments, including small to medium-sized offices, branch environments, home offices and micro-offices requiring enterprise-grade wireless functionality.
Dual 2x2 Wi-Fi 6 Radios
The C9105AXI-C provides 2x2:2 MU-MIMO on both 2.4 GHz and 5 GHz. This dual-concurrent architecture enables simultaneous service across both Wi-Fi bands for modern and legacy client devices.
1.488 Gbps Maximum PHY Rate
With compatible Wi-Fi 6 clients and supported channel configurations, the C9105AXI-C can provide a maximum aggregate PHY data rate of up to 1.488 Gbps. Actual user throughput depends on client capability, RF conditions, channel width and protocol overhead.
Wi-Fi 6 Efficiency
OFDMA allows wireless resources to be shared efficiently among multiple clients, while MU-MIMO improves simultaneous multi-client transmission. BSS Coloring, Target Wake Time and 802.11ax beamforming further improve wireless efficiency.
Integrated Internal Antennas
The C9105AXI-C uses integrated internal omnidirectional antennas, simplifying installation and making the access point suitable for conventional indoor deployments.
Gigabit Ethernet Connectivity
The access point provides a 10/100/1000BASE-T Gigabit Ethernet interface for wired network connectivity and Power over Ethernet deployment.
Bluetooth Low Energy and IoT
The integrated Bluetooth Low Energy radio extends the access point's capabilities for enterprise IoT, asset tracking and location-aware applications.
Applications
- Small and medium-sized enterprise offices
- Branch office networks
- Home and micro-office deployments
- Retail and commercial locations
- Educational institutions
- Hospitality environments
- Enterprise IoT deployments
- Compact indoor WLAN installations
- Wi-Fi 6 network modernization
Compatibility
The Cisco Catalyst C9105AXI-C is a controller-based enterprise access point designed for Cisco wireless infrastructure. Cisco documentation lists support for Cisco Catalyst 9800 Series Wireless Controllers and supported legacy Cisco wireless controllers, subject to software release requirements.
Cisco documentation specifies Cisco Unified Wireless Network Software Release 8.10.MR3 or later and Cisco IOS XE Software Release 17.3.1 or later for the Catalyst 9105AX Series.
The “-C” suffix identifies a Cisco regulatory-domain variant. Country-specific regulatory approval, supported channels and permitted operating frequencies should be verified before deployment.
Cisco C9105AXI-C Price in Bangladesh
The Cisco C9105AXI-C price in Bangladesh may vary depending on regulatory domain, licensing, warranty, accessories and availability. For the latest Bangladesh price and purchasing information, contact Datacom Technologies (BD).
Contact: sales@datacom.com.bd
Why Choose Cisco Catalyst C9105AXI-C?
- Compact enterprise Wi-Fi 6 indoor access point
- Dual-band 2x2:2 MU-MIMO radios
- Up to 1.488 Gbps maximum PHY data rate
- Integrated internal omnidirectional antennas
- Gigabit Ethernet connectivity
- OFDMA and MU-MIMO for efficient multi-client operation
- Integrated Bluetooth Low Energy and IoT capability
- Cisco Spectrum Intelligence
- WPA3 and enterprise security support
- Suitable for small to medium-sized offices, branches and compact deployments
