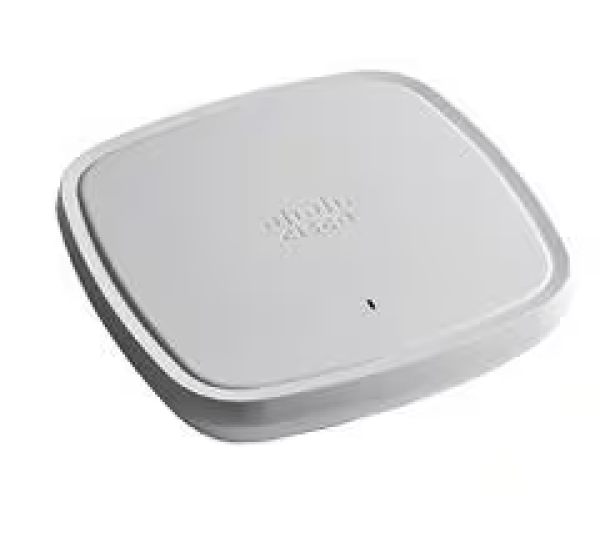

Cisco Catalyst C9130AXE-E Wi-Fi 6 Indoor Access Point – Dual-Radio, 4x4/8x8 MIMO, 5.38 Gbps

The Cisco Catalyst C9130AXE-E is a high-performance enterprise Wi-Fi 6 indoor access point designed for large and challenging wireless deployments. The C9130AXE uses an external antenna architecture, allowing network designers to select appropriate antenna patterns and gain characteristics for demanding RF environments.

The access point provides concurrent 2.4 GHz and 5 GHz wireless connectivity with a 4x4 MIMO 2.4 GHz radio and an 8x8 MIMO flexible 5 GHz radio. Cisco Flexible Radio Assignment enables the 5 GHz architecture to operate as an 8x8 radio or, where supported, as two independent 4x4 5 GHz radios.

The C9130AXE-E features a 5 Gbps multigigabit Ethernet interface, an 8-port Smart Antenna DART connector, Cisco RF ASIC technology, CleanAir capabilities, integrated Bluetooth Low Energy and IoT/scanning functionality. It is suitable for enterprise campuses, high-density offices and specialized indoor deployments.

Cisco C9130AXE-E Key Features

• Wi-Fi 6 (IEEE 802.11ax) enterprise indoor access point
• External antenna architecture for flexible RF deployment
• 4x4 MIMO 2.4 GHz radio
• 8x8 MIMO flexible 5 GHz radio
• Up to 5.38 Gbps maximum PHY data rate
• Flexible Radio Assignment for additional 5 GHz capacity
• 8-port Smart Antenna DART connector
• Supports Cisco Self-Identifying Antennas
• External antennas with supported gains up to 13 dBi depending on antenna configuration
• 5 Gbps multigigabit Ethernet uplink
• Integrated Cisco RF ASIC
• Cisco CleanAir and advanced RF management capabilities
• Integrated Bluetooth Low Energy and IoT/scanning radio
• OFDMA and MU-MIMO support
• PoE+ and Cisco UPOE support

Technical Specifications

High-Density Enterprise Wi-Fi 6

The Cisco Catalyst C9130AXE-E is engineered for large enterprise wireless deployments where high capacity, advanced RF intelligence and external antenna flexibility are important. Cisco positions the Catalyst 9130AXE for large deployments and challenging indoor environments.

4x4 2.4 GHz and 8x8 5 GHz MIMO

The C9130AXE-E combines a 4x4 MIMO 2.4 GHz radio with an 8x8 MIMO 5 GHz flexible radio. This architecture provides high spatial-stream capacity for compatible Wi-Fi 6 clients and supports demanding enterprise wireless applications.

Flexible Radio Assignment

Cisco Flexible Radio Assignment allows the 8x8 5 GHz radio to be configured according to deployment requirements. Where supported, it can be split into two independent 4x4 5 GHz radios to provide additional 5 GHz serving capacity.

External Antenna Flexibility

The C9130AXE-E uses an 8-port Smart Antenna DART connector and supports Cisco external antenna systems. Cisco documentation specifies supported external antenna configurations with gains up to 13 dBi depending on the antenna and connection method.

Advanced RF Intelligence

The integrated Cisco RF ASIC provides advanced RF analysis capabilities, while Cisco CleanAir technology helps detect and identify sources of wireless interference. These capabilities support more predictable performance in demanding enterprise environments.

5 Gbps Multigigabit Ethernet

The access point provides a 100/1000/2500/5000 Mbps multigigabit Ethernet interface. The 5 Gbps maximum link speed provides high-capacity wired backhaul for demanding Wi-Fi 6 applications.

Wi-Fi 6 Efficiency

OFDMA, MU-MIMO, BSS Coloring, Target Wake Time and 802.11ax beamforming improve spectrum utilization and help efficiently serve multiple connected devices.

Applications

• Large enterprise campus networks
• High-density corporate offices
• Challenging indoor RF environments
• Universities and educational institutions
• Healthcare facilities
• Large indoor facilities
• Video conferencing and collaboration
• High-definition video applications
• IoT-enabled enterprise networks
• Deployments requiring specialized external antennas

Compatibility

The Cisco Catalyst C9130AXE-E is designed for Cisco enterprise wireless infrastructure and supports Cisco Catalyst 9800 Series Wireless Controllers and compatible Cisco wireless management platforms.

The C9130AXE platform requires an appropriate external antenna system. Cisco supports Self-Identifying Antennas through the 8-port DART Smart Antenna connector, as well as supported conventional antenna configurations using the appropriate Cisco breakout cables.

The “-E” suffix identifies a Cisco regulatory-domain variant. Country-specific regulatory approval, supported channels and permitted operating frequencies should be verified before deployment.

Cisco C9130AXE-E Price in Bangladesh

The Cisco C9130AXE-E price in Bangladesh may vary depending on regulatory domain, external antenna selection, licensing, warranty, cabling, accessories and availability. For the latest Bangladesh price and purchasing information, contact Datacom Technologies (BD).

Contact: sales@datacom.com.bd

Why Choose Cisco Catalyst C9130AXE-E?

• Enterprise-grade Wi-Fi 6 access point for large indoor deployments
• 4x4 2.4 GHz and 8x8 5 GHz high-capacity radio architecture
• Up to 5.38 Gbps maximum PHY data rate
• External antenna flexibility for challenging RF environments
• 8-port Smart Antenna DART interface
• Supported antenna configurations up to 13 dBi depending on deployment
• 5 Gbps multigigabit Ethernet backhaul
• Cisco RF ASIC and CleanAir technology
• Integrated Bluetooth Low Energy and IoT/scanning capabilities
• Flexible Radio Assignment for additional 5 GHz capacity
• Suitable for high-density enterprise wireless deployments
