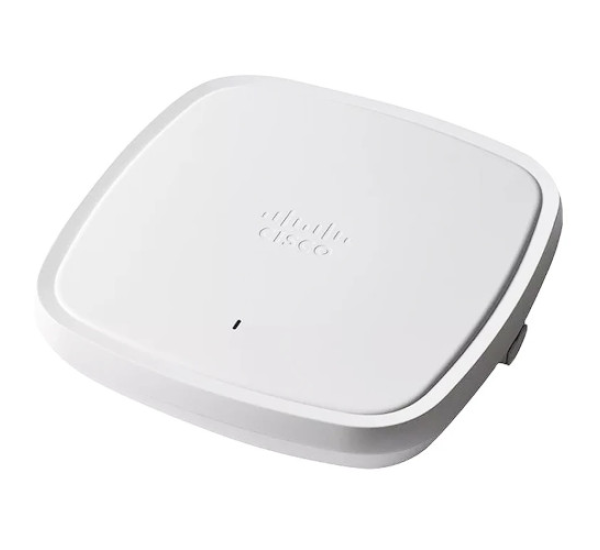

Cisco Catalyst C9130AXI-C Wi-Fi 6 Indoor Access Point – Dual-Radio, 4x4/8x8 MIMO, 5.38 Gbps
The Cisco Catalyst C9130AXI-C is an enterprise-class Wi-Fi 6 indoor access point designed for high-performance wireless deployments. It delivers concurrent 2.4 GHz and 5 GHz connectivity using a 4x4 MIMO 2.4 GHz radio and an 8x8 MIMO flexible 5 GHz radio, providing high capacity for demanding enterprise WLAN environments.
The C9130AXI-C supports Cisco Flexible Radio Assignment (FRA), allowing the 8x8 5 GHz radio to operate as a single high-capacity radio or be split into two independent 4x4 5 GHz radios. This flexible architecture allows wireless capacity to be adapted to changing client density and RF requirements.
With integrated internal antennas, a 5 Gbps multigigabit Ethernet interface, Cisco RF ASIC technology, CleanAir capabilities, Bluetooth Low Energy and IoT support, the C9130AXI-C provides a powerful platform for enterprise indoor wireless networking.
Cisco C9130AXI-C Key Features
- Wi-Fi 6 (IEEE 802.11ax) enterprise indoor access point
- Concurrent 2.4 GHz and 5 GHz operation
- 4x4 MIMO 2.4 GHz radio
- 8x8 MIMO flexible 5 GHz radio
- Up to 5.38 Gbps maximum PHY data rate
- Flexible Radio Assignment for optimized 5 GHz capacity
- Integrated internal omnidirectional antennas
- 5 Gbps multigigabit Ethernet uplink
- Integrated Cisco RF ASIC
- Cisco CleanAir and advanced RF management capabilities
- Integrated Bluetooth Low Energy and IoT functionality
- OFDMA and MU-MIMO for efficient multi-client connectivity
- Support for 802.3at PoE+ and Cisco 802.3bt UPOE
Technical Specifications
| Specification | Details |
|---|
| Brand | Cisco |
| Model | C9130AXI-C |
| Series | Cisco Catalyst 9130AX Series |
| Product Type | Indoor Enterprise Wireless Access Point |
| Wireless Standard | IEEE 802.11ax (Wi-Fi 6) |
| Radio Architecture | Dual-radio serving architecture with flexible 5 GHz radio |
| 2.4 GHz Radio | 4x4 MIMO, 4 spatial streams |
| 5 GHz Radio | 8x8 MIMO, 8 spatial streams |
| Flexible Radio Assignment | 8x8 5 GHz or dual 4x4 5 GHz configuration |
| Maximum PHY Data Rate | Up to 5.38 Gbps |
| Channel Width | 20/40/80/160 MHz |
| Antennas | Integrated internal omnidirectional antennas |
| Ethernet | 1 x 100/1000/2500/5000 Mbps Multigigabit Ethernet RJ-45 |
| Bluetooth | Integrated Bluetooth Low Energy 5.0 |
| IoT | Integrated IoT and BLE capabilities |
| RF Technology | Cisco RF ASIC and Cisco CleanAir technology |
| Security | WPA2, WPA3, 802.1X and enterprise security capabilities |
| Power | 802.3at PoE+ and Cisco 802.3bt UPOE |
| USB | USB 2.0 interface, subject to power configuration |
| Management | Cisco Catalyst 9800 Wireless Controllers and Cisco DNA ecosystem |
| Operating Temperature | 0°C to 50°C |
| Deployment | Indoor |
Enterprise Wi-Fi 6 Wireless Performance
The Cisco Catalyst C9130AXI-C is designed for enterprise environments requiring reliable Wi-Fi 6 connectivity, high wireless capacity and advanced RF management. Its radio architecture makes it suitable for corporate campuses, offices, educational institutions and other demanding indoor deployments.
4x4 2.4 GHz and 8x8 5 GHz MIMO
The C9130AXI-C combines a 4x4 MIMO 2.4 GHz radio with an 8x8 MIMO 5 GHz radio. This provides high spatial-stream capacity for compatible clients while maintaining support for devices operating on both major Wi-Fi bands.
Flexible Radio Assignment
Cisco Flexible Radio Assignment allows the 8x8 5 GHz radio to be configured as two independent 4x4 5 GHz radios. This can be useful where additional 5 GHz radio capacity is preferred for dense client environments.
Wi-Fi 6 Efficiency
Wi-Fi 6 technologies such as OFDMA, MU-MIMO, BSS Coloring and Target Wake Time improve spectrum utilization and help the access point efficiently serve multiple clients simultaneously.
Advanced RF Management
The integrated Cisco RF ASIC provides advanced RF intelligence and supports Cisco CleanAir capabilities for identifying and mitigating sources of wireless interference. This helps improve visibility and reliability in enterprise WLAN environments.
5 Gbps Multigigabit Connectivity
The C9130AXI-C provides a multigigabit Ethernet interface supporting speeds up to 5 Gbps. This high-speed wired uplink helps provide sufficient backhaul capacity for high-performance Wi-Fi 6 deployments.
Flexible PoE Deployment
The access point supports IEEE 802.3at PoE+ and Cisco 802.3bt UPOE. The available power budget can affect certain features and operating configurations, so the network switch and PoE infrastructure should be planned accordingly.
Applications
- Enterprise campus wireless networks
- Corporate office environments
- High-density indoor WLAN deployments
- Universities and educational institutions
- Healthcare facilities
- Video conferencing and collaboration networks
- High-definition video applications
- IoT-enabled enterprise environments
- All-wireless office deployments
Compatibility
The Cisco Catalyst C9130AXI-C is designed for Cisco enterprise wireless infrastructure and supports Cisco Catalyst 9800 Series Wireless Controllers and compatible Cisco wireless management platforms. Cisco IOS XE software support depends on the controller and deployment architecture.
The “-C” suffix identifies a Cisco regulatory-domain variant. Country-specific regulatory approvals, supported channels and permitted operating frequencies should be verified before deployment.
Cisco C9130AXI-C Price in Bangladesh
The Cisco C9130AXI-C price in Bangladesh may vary depending on regulatory domain, licensing, warranty, accessories, power requirements and availability. For the latest Bangladesh price and purchasing information, contact Datacom Technologies (BD).
Contact: sales@datacom.com.bd
Why Choose Cisco Catalyst C9130AXI-C?
- Enterprise-grade Wi-Fi 6 indoor access point
- 4x4 2.4 GHz and 8x8 5 GHz high-capacity architecture
- Up to 5.38 Gbps maximum PHY data rate
- Flexible Radio Assignment for additional 5 GHz capacity
- 5 Gbps multigigabit Ethernet backhaul
- Cisco RF ASIC and CleanAir technology
- Integrated Bluetooth Low Energy and IoT capabilities
- OFDMA and MU-MIMO for efficient multi-client operation
- PoE+ and Cisco UPOE support
- Suitable for enterprise campuses and demanding indoor wireless deployments
