| Specification | Details |
|---|

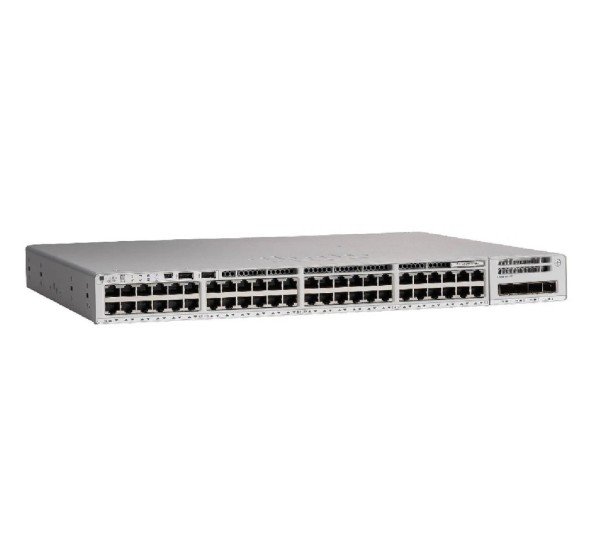

| Model | Cisco Catalyst C9200-48P-E |
| Series | Cisco Catalyst 9200 Series |
| Ports | 48 × 10/100/1000 Mbps RJ-45 PoE+ |
| PoE Standard | IEEE 802.3at PoE+ (up to 30W per port) |
| PoE Power Budget | Up to 740W (single PSU), expandable with dual PSU |
| Uplink Options | 1 × Modular uplink slot (1G / 10G / 40G modules supported) |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | Up to 261.9 Mpps |
| DRAM / Flash | 4 GB DRAM, 4 GB Flash |
| Stacking | StackWise-160, up to 8 switches |
| VLAN Support | Up to 4,096 VLAN IDs |
| MAC Address Table | 32,000 entries |
| Layer 3 Features | Static routing, OSPF, RIP, EIGRP |
| Security | MACsec-128, 802.1X, ACLs, Trust Anchor module |
| Management | CLI, Web UI, Cisco DNA Center, SNMP, NETCONF/RESTCONF |
| Jumbo Frames | Up to 9,198 bytes |
| Form Factor | 1U Rack-mountable |
| Dimensions (H×W×D) | Approx. 44.5 × 350 × 438 mm |
| Weight | Approx. 5.5 kg |
| Operating System | Cisco IOS XE |
| License | Network Essentials |
Description:
The Cisco Catalyst C9200-48P-E is an enterprise-grade access switch in the Catalyst 9200 Series designed to deliver robust, scalable, and secure connectivity for campus and branch networks. This 1 RU rack-mountable switch provides 48 Gigabit Ethernet ports with full PoE+ support, enabling it to power a wide range of devices such as IP phones, wireless access points, cameras, and IoT endpoints without requiring separate power sources.
Built on Cisco’s IOS XE operating system with the Network Essentials license, the C9200-48P-E supports critical Layer 2 switching features and essential Layer 3 routing protocols (like OSPF, EIGRP, and RIP) for flexible network deployment. Its modular uplink design allows for 1 G to 40 G expansion, while StackWise-160 technology lets up to eight units operate as a single logical switch, simplifying management and increasing resiliency.
With a switching capacity of up to 176 Gbps and advanced security features such as MACsec encryption and 802.1X authentication, it delivers high performance with secure access control. The switch also integrates with Cisco DNA Center and supports automation protocols (NETCONF/RESTCONF), making it ideal for scalable enterprise networks that require centralized orchestration and analytics.
