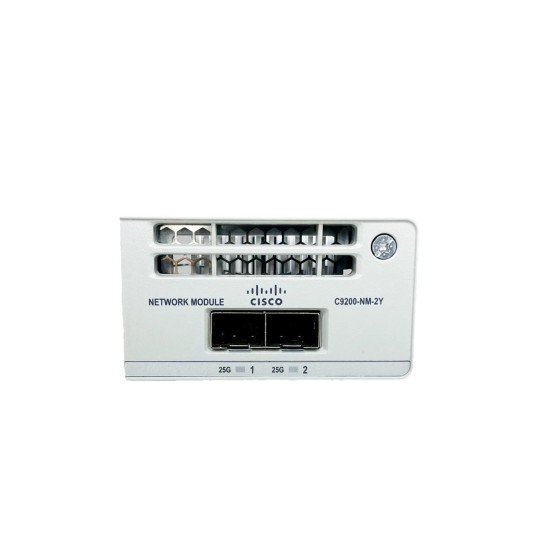

Cisco C9200-NM-2Y 2 x 25G Network Module
Cisco C9200-NM-2Y is a 2×25G network module designed for Catalyst 9200 series switches, delivering high-speed connectivity and enhanced network performance. It supports flexible deployment with reliable data transfer and scalability for enterprise networks. Buy the Cisco C9200-NM-2Y 2×25G Network Module at the best price in Bangladesh from Datacom Technologies BD.
Specification Table for Cisco C9200‑NM‑2Y 2 x 25G Network Module
| Specification | Details |
|---|
| Product Name | Cisco Catalyst C9200‑NM‑2Y Network Module |
| Manufacturer | Cisco Systems |
| Model / Part Number | C9200‑NM‑2Y |
| Product Type | Modular Uplink Network Module |
| Compatibility | Cisco Catalyst 9200 Series modular switches (multigigabit models only) |
| Interface Type | 2 × 25 GbE SFP28 ports |
| Supported Speeds | 25 Gbps (per port), backward with SFP+/SFP optics where supported |
| Form Factor | Plug‑in module for network module bay |
| Hot‑Swappable | Yes |
| Media Support | SFP28 optics, SFP+ optics, DAC/AOC cables (depending on optics) |
| Maximum Throughput | 25 Gbps per port (total up to 50 Gbps logical if aggregated) |
| Installation | Tool‑less, field replaceable |
| Software Support | Cisco IOS XE, Cisco DNA Center integration |
| Use Case | High‑speed uplinks, aggregation, core/aggregation connectivity |
| Backward Compatibility | Supports lower‑speed optics on SFP28 ports where platform/software allows |
Cisco C9200‑NM‑2Y – 2 × 25G Network Module Overview
The
Cisco C9200‑NM‑2Y is a network expansion module for
Cisco Catalyst 9200 Series switches. It adds
two high‑speed 25 Gigabit Ethernet (25G) uplink ports to the switch via SFP28 slots. This lets you connect the switch to core switches, aggregation switches, servers, or other high‑speed network devices at much faster speeds than standard
1G or 10G uplinks.
This module is hot‑swappable, meaning it can be inserted or removed without powering off the switch. It gives you flexibility and future‑proofs your network as bandwidth needs grow.
Key Features
- 2 × 25G SFP28 Ports – Two high‑performance uplink ports for ultra‑fast connectivity (up to 25 Gbps each).
- Hot‑Swappable Module – Install or replace without shutting down your switch.
- Backward Compatibility – Supports 25 G SFP28 optics and often 10 G SFP+ optics (and sometimes 1 G SFP depending on switch software), providing flexibility for different link speeds.
- Flexible Media Support – Works with fiber optics and direct attach cables (DAC/AOC), depending on your transceiver choice.
- Scalable Uplinks – Allows growth of network capacity without replacing the entire switch.
- Plug‑In Module – Easy to install in the dedicated uplink bay on supported Catalyst 9200 models.
How It Works
- Insert the Module: Open the uplink module slot on the back of your supported Cisco Catalyst 9200 Series switch.
- Plug in Transceivers: Insert 25G SFP28 optical transceivers (or compatible SFP+ for 10G links) into the module ports.
- Connect Cables: Connect fiber or DAC/AOC cables from this module to other switches, routers, or network devices.
- Configure Switch: Use Cisco IOS XE commands to configure the uplink interfaces as needed.
- Verify Connectivity: Confirm links with show commands (e.g., show interfaces status).
- This modular module approach allows flexibility and future expansion without upgrading the entire switch.
Compatibility
The Cisco C9200‑NM‑2Y is compatible with Cisco Catalyst 9200 Series switches that have a modular uplink bay — typically the multigigabit (PXG) models:
✔️ Supported Platforms:
- C9200‑24PXG Series
- C9200‑48PXG Series
⚠️ Not supported on fixed‑uplink variants like 9200L or models without a module slot.
You use this module to expand uplinks without changing the switch’s fixed ports.
Frequently Asked Questions (FAQ)
1. What does this module do?
It adds two 25 Gbps uplink ports to your Catalyst 9200 switch, allowing higher‑speed network connections.
2. What kind of optics does it use?
It uses SFP28 transceivers. These optics must be purchased separately based on the link distance and medium (fiber or copper DAC).
3. Can it run at 10 G?
Yes — with 10G SFP+ modules in the ports, it can operate at 10 Gbps where supported.
4. Is it hot‑swappable?
Yes — it can be installed or replaced while the switch is powered on.
5. Can it support 1 G optics?
Many switches support 1 G optics in SFP28 ports, but check your specific switch model and IOS XE version for exact support.
6. What is the total bandwidth?
Each port supports up to 25 Gbps, so combined uplink capacity can reach 50 Gbps (if both are active).
Summary
The Cisco C9200‑NM‑2Y Network Module is a modular uplink card that enhances the speed and capacity of Cisco Catalyst 9200 switches by providing 2 high‑speed 25G uplink ports. It’s ideal for networks that require faster connections to core switches, servers, or aggregation layers — and it’s hot‑swappable, backward compatible, and flexible for future upgrades.
