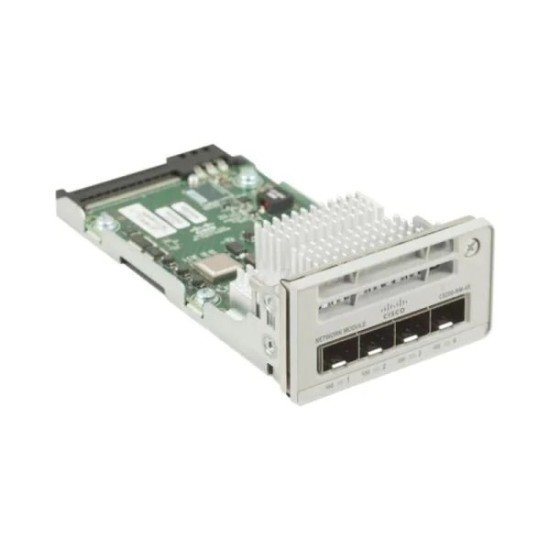

Cisco C9200-NM-4X Catalyst 9200 Network Module
Cisco C9200-NM-4X is a high-performance network module for Catalyst 9200 series switches, providing 4x10G/25G connectivity. It enhances network speed, scalability, and reliability for enterprise environments. Purchase the Cisco C9200-NM-4X Catalyst 9200 Network Module at the best price in Bangladesh from Datacom Technologies BD.
Specification Table for the Cisco C9200‑NM‑4X Catalyst 9200 Network Module
| Specification | Details |
|---|
| Product Name | Cisco C9200‑NM‑4X Network Module |
| Manufacturer | Cisco Systems |
| Model / Part Number | C9200‑NM‑4X / C9200‑NM‑4X= |
| Product Type | Modular Uplink Network Module |
| Series Compatibility | Cisco Catalyst 9200 Series modular uplink switches |
| Module Form Factor | Hot‑swappable plug‑in uplink module |
| Ports | 4 × SFP+ ports supporting 1G / 10G optics |
| Supported Speeds | 1 Gbps and 10 Gbps per port |
| Total Aggregate Bandwidth | Up to 40 Gbps (4 × 10G) |
| Media Support | SFP/SFP+ optics, DAC/AOC cables (depending on optics) |
| Installation | Tool‑less, hot‑swappable for easy field upgrades |
| Backward Compatibility | Supports both 1G and 10G SFP/SFP+ modules |
| Use Case | Provides additional high‑speed uplink ports for aggregation or core connectivity |
| Operating Environment | Enterprise campus, branch office, data center networks |
| Software Support | Cisco IOS XE with Catalyst 9200 switch platforms |
| Hot‑Swap Support | Yes (no switch downtime for replacement |
Product Overview
The Cisco C9200‑NM‑4X is a modular uplink network expansion card designed for Cisco Catalyst 9200 Series switches. It adds four 10 Gigabit Ethernet (SFP+) ports to the switch, giving you high‑speed uplinks or extra network connections for servers, core switches, or aggregation links. This module helps modernize and scale your network without replacing the entire switch.
Key Features
- 4 × 10G SFP+ Ports – Provides four high‑speed ports for uplinks or network links up to 10 Gbps each.
- SFP+ Flexibility – Works with a wide range of SFP+ optics (fiber or DAC) for different distances and media types.
- Supports 1G/10G – Each port can operate at 1 Gbps or 10 Gbps depending on the optics used.
- Hot‑Swappable – Install or replace the module without powering down the switch in most cases.
- Plug‑In Module – Fits into the dedicated network module slot on supported Catalyst 9200 switches.
- Scalable Uplink Capacity – Enables network growth and better bandwidth for backhaul or core connections.
How It Works
- Prepare the Switch: Power off or prepare the switch for maintenance (hot‑swap is often allowed).
- Insert Module: Slide the C9200‑NM‑4X into the uplink module bay on the back of the Catalyst 9200 switch.
- Install Optics: Insert SFP+ transceivers (10G or 1G) into the four ports.
- Connect Cables: Attach fiber or DAC/AOC cables to the corresponding devices (core switch, server, etc.).
- Configure Interfaces: Use Cisco IOS XE commands to configure port speeds, trunking, VLANs, or routing as needed.
- Verify Connectivity: Check link status and traffic with show interfaces status.
- This modular design gives flexibility for uplink speeds and future growth.
Compatibility
The Cisco C9200‑NM‑4X is supported on Cisco Catalyst 9200 Series switches that have a modular uplink slot. It is not compatible with model variants without a network module slot (e.g., certain 9200L or CX series with fixed uplinks).
Compatible Switch Platforms
✔️ Catalyst 9200 modular models with expansion slot
⟶ Examples include:
- C9200‑24T / C9200‑24P
- C9200‑48T / C9200‑48P
(Exact models depend on hardware configuration and module slot availability)
⚠️ Not compatible with fixed‑uplink variants that have no network module bay.
Frequently Asked Questions (FAQ)
1. What is the Cisco C9200‑NM‑4X used for?
It adds four modular uplink ports to a Catalyst 9200 switch, giving fast 10 Gbps connectivity for uplinks or other network links.
2. What port speeds does it support?
Each port can operate at 1 Gbps or 10 Gbps depending on the SFP/SFP+ optics used.
3. Can I use it without optics?
No — the module requires SFP+ transceivers (sold separately) for network connections.
4. Is it hot‑swappable?
Yes — it can be installed or removed without shutting down the switch in many deployments.
5. Does this module carry PoE?
No — uplink modules like this provide data ports only. PoE is delivered by the switch’s normal Ethernet ports.
6. Can it be used for downlinks as well?
Yes — ports can connect to any device that supports 1G/10G Ethernet (servers, other switches, storage, etc.).
Summary
The Cisco C9200‑NM‑4X is a flexible, 4‑port 10G SFP+ network module for Catalyst 9200 switches. It upgrades your switch with high‑speed uplinks and extra bandwidth options, making it suitable for growing enterprise networks, core links, and high‑traffic environments. Its modular, hot‑swappable design means you can expand without replacing your switch.
