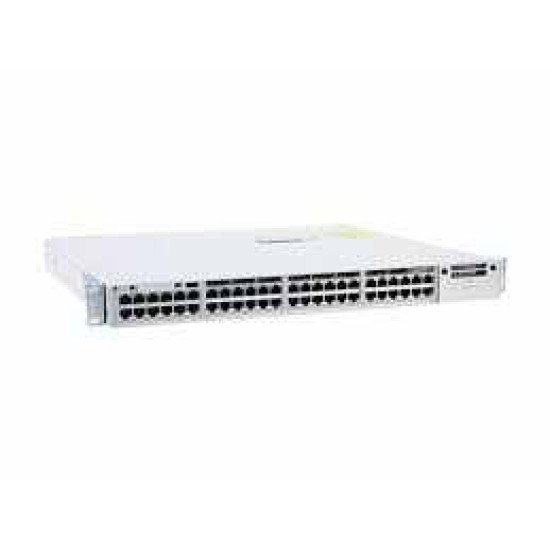

Cisco C9300-48T-E – 48-Port Gigabit Stackable LAN Switch | Enterprise Network Switch
The Cisco C9300-48T-E is a powerful 48-port enterprise LAN switch designed for secure, scalable, and high-performance campus networks. As part of the Cisco Catalyst 9300 Series, this switch provides 48 Gigabit Ethernet data ports with modular uplink flexibility and advanced Layer 2 and Layer 3 networking capabilities.
Built for modern enterprise environments, the C9300-48T-E supports Cisco StackWise-480 technology, enabling multiple switches to operate as a single logical unit for simplified management and high availability. It runs Cisco IOS XE with the Network Essentials license, offering advanced routing, security, and automation features for campus networks, branch offices, and enterprise infrastructures.
SPECIFICATION TABLE
| Feature | Details |
|---|
| Product Name | Cisco C9300-48T-E 48-Port Enterprise LAN Switch |
| Brand | Cisco Systems |
| Series | Catalyst 9300 |
| Switch Type | Stackable Layer 3 Enterprise Switch |
| Access Ports | 48 × 10/100/1000 Gigabit Ethernet (RJ-45) |
| Uplink Options | Modular uplinks (1G / 10G / 25G / 40G modules supported) |
| Software License | Network Essentials |
| Switching Capacity | Up to 256 Gbps |
| Forwarding Rate | Up to ~190 Mpps |
| Stacking Technology | Cisco StackWise-480 (up to 8 switches) |
| Stack Bandwidth | 480 Gbps |
| Memory | 8 GB DRAM |
| Flash Storage | 16 GB |
| Power Supply | Default 350W AC (PWR-C1-350WAC) |
| PoE Support | No (Data-only model) |
| Operating Temperature | 0°C to 40°C |
| Form Factor | 1RU rack-mountable |
| Application | Enterprise campus networks, access layer switching |
Specifications may vary depending on uplink modules and configuration.
Cisco C9300-48T-E Description
The Cisco C9300-48T-E is designed to serve as a core access-layer switch for enterprise networks, delivering high availability, security, and scalability. Equipped with 48 Gigabit Ethernet data ports, it supports high-density device connectivity for workstations, servers, IP phones, and network infrastructure devices.
The switch integrates Cisco StackWise-480, allowing up to eight switches to be stacked together to function as a single logical device. This architecture simplifies management, increases redundancy, and provides high-bandwidth inter-switch communication.
Powered by Cisco IOS XE, the switch supports advanced networking capabilities including Layer 3 routing, VLAN segmentation, access control lists (ACLs), and QoS traffic prioritization. It also integrates seamlessly with Cisco DNA Center, enabling centralized management, network automation, and enhanced visibility across the infrastructure.
Security features such as 802.1X authentication, MACsec encryption, and secure boot help protect the network against unauthorized access and cyber threats. With its modular uplink design, organizations can easily scale bandwidth as network demands grow.
The C9300-48T-E is ideal for organizations seeking a reliable, scalable access switch for enterprise campus networks, branch offices, and high-performance business environments.
KEY FEATURES
48 × Gigabit Ethernet RJ-45 data ports
Advanced Layer 2 / Layer 3 switching and routing
Cisco StackWise-480 stacking for scalability and redundancy
Flexible modular uplink options (1G / 10G / 25G / 40G)
Integrated Cisco DNA Center support for automation and monitoring
Network Essentials software license included
Advanced security features (802.1X, ACLs, MACsec)
Enterprise-grade reliability and rack-mountable design
WHERE IT CAN BE USED
Enterprise campus networks
Corporate office network infrastructure
Data center access layer
Branch office connectivity
High-density workstation and endpoint networks
Government and enterprise IT environments
