| Specification | Details |
|---|
| Model | Cisco Catalyst C9200L-24T-4G-E |
| Product Type | Managed Layer 2/Layer 3 Access Switch |
| Ports | 24 × 10/100/1000 Mbps RJ‑45 |
| Uplink Ports | 4 × 1G SFP ports |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.23 Mpps (64-byte packets) |
| Stacking | StackWise-80, up to 8 switches |
| Software License | Cisco IOS XE Network Essentials |
| MAC Address Table | 16,000 entries |
| VLANs Supported | Up to 1024 VLANs |
| SVIs Supported | Up to 512 |
| Jumbo Frames | Up to 9,216 bytes |
| Memory | 2 GB DRAM, 4 GB Flash |
| Power Supply | 1 × 125W AC (field-replaceable) |
| Fans | Redundant, field-replaceable |
| Dimensions (H×W×D) | 1.73″ × 17.5″ × 11.3″ (approx.) |
| Weight | ~4.5 kg |
| Layer 3 Routing | Static routing, RIP, OSPF, EIGRP stub |
| Security Features | 802.1X, MACsec, ACLs, Control Plane Protection |
| Monitoring & Telemetry | NetFlow, SPAN, EEM, RESTCONF/NETCONF |
Product Description:

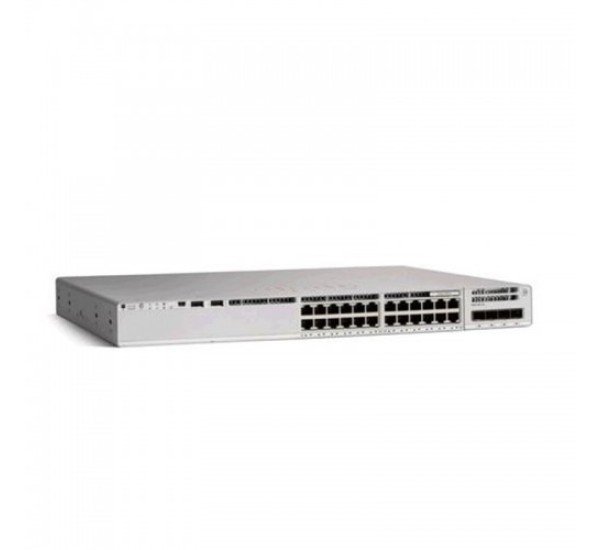

The Cisco Catalyst C9200L-24T-4G-E is a high-performance, enterprise-grade 24-port managed switch designed for campus access and small to medium business networks. It provides 24 Gigabit Ethernet RJ‑45 ports for wired connectivity and four 1G SFP uplink ports for flexible network expansion. This switch supports Cisco’s IOS XE Network Essentials software, delivering robust Layer 2 switching and essential Layer 3 routing capabilities to simplify network operations and improve efficiency.
With StackWise-80 technology, multiple switches can be stacked into a single logical unit, enabling simplified management, increased redundancy, and high-speed inter-switch communication. It supports a MAC address table of 16,000 entries, up to 1024 VLANs, and 512 SVIs, providing flexible segmentation and routing options for enterprise networks.
Designed for reliability, the C9200L-24T-4G-E features hot-swappable power supplies and fans, ensuring uninterrupted operation. Security features such as 802.1X authentication, MACsec encryption, ACLs, and control plane protection safeguard network traffic. The switch also supports advanced monitoring and automation, including NetFlow, SPAN, and RESTCONF/NETCONF, making it ideal for modern enterprise networks requiring scalability, resiliency, and efficient management.
