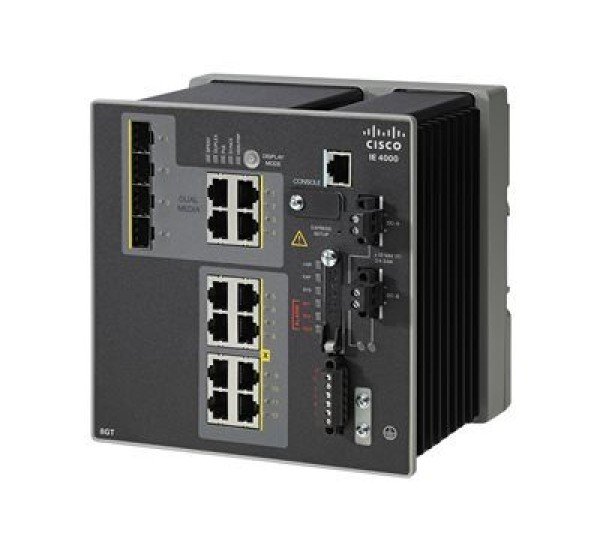

Cisco IE-4000-8GT4G-E

The Cisco IE-4000-8GT4G-E is a fully managed, ruggedized industrial Ethernet switch from Cisco's renowned Industrial Ethernet (IE) series. It's designed for mission-critical applications in harsh environments where reliability, advanced features, and integration with enterprise networks are paramount.

The model name decodes as follows:

• IE-4000: Series

• 8GT: 8 x 10/100/1000 (Gigabit) Twisted-Pair (Copper) RJ45 Ports

• 4G: 4 x 1 Gigabit SFP (Fiber) Uplink Ports

• E: Enhanced Software Image (includes advanced Layer 3 features)

Key Features & Specifications

• Total Ports: 12

• Copper Ports: 8 x 10/100/1000BaseT(X) RJ45

• Fiber Uplink Ports: 4 x 100/1000 SFP Slots (requires separate SFP transceivers)

• Software Image: Enhanced (Layer 3 Lite)

• Form Factor: Compact, DIN-rail mountable

• Power Input: 24 VDC (standard) or 110/240 VAC (with a separate power supply module)

Detailed Analysis

1. Port Configuration & Use Cases

This configuration is highly versatile and designed for aggregation or core roles within an industrial cell/area.

• 8x Gigabit Copper Ports: These connect to a variety of devices requiring high bandwidth.

  • Typical Devices: PLCs, HMIs, industrial servers ( historians), drives, and high-resolution machine vision cameras.

• 4x Gigabit SFP Fiber Ports: This is a significant number of uplinks, offering immense flexibility.

  • Usage:

    • High-Speed Uplinks: Connect to the plant's backbone network.

    • Fiber Ring Topology: Use multiple ports to create redundant fiber rings.

    • Link Aggregation: Bundle ports for a multi-Gigabit trunk connection to a server or core switch.

    • Long-Distance Connectivity: Use single or multimode SFPs to connect over kilometers.

2. "Fully Managed" / Enhanced Software Image

This is a key differentiator from "smart" switches like the Moxa SDS-3008. The IE-4000 with the "E" image offers advanced Layer 3 capabilities.

• Advanced Layer 3 Features (Layer 3 Lite):

  • Static Routing & RIP: Allows the switch to route traffic between different IP subnets/VLANs, reducing the load on the core router for local traffic.

  • EIGRP Stub: Can participate in Cisco's advanced EIGRP routing protocol for seamless integration into larger Cisco networks.

• Industrial Network Virtualization:

  • Cisco Field Network Director (FND): Part of the "Cisco DNA" framework for centralized management, monitoring, and automation of industrial networks.

• Advanced Security:

  • Cisco TrustSec: Provides software-defined segmentation and encryption.

  • 802.1X, TACACS+, RADIUS: For robust network access control and authentication.

• High Availability & Redundancy:

  • Cisco REP (Resilient Ethernet Protocol): A Cisco proprietary protocol for creating fast-converging ring topologies.

  • DLR (Device Level Ring): For converged networks that include Allen-Bradley Stratix switches.

• Quality of Service (QoS): Highly granular traffic prioritization for deterministic performance.

3. Industrial Ruggedness

Built to the highest industrial standards, often exceeding those of many competitors.

• Operating Temperature: -40 to 75°C (-40 to 167°F)

• Certifications: UL 61010-2-201 (Industrial Equipment), Class I Division 2 Hazardous Locations, ATEX Zone 2, IEC 61850-3/ IEEE 1613 (Electrical Substations), EN 50121-4 (Railway).

• Robust Design: Conformal coated PCB, resistant to humidity, dust, and corrosive gases.

Comparison with Moxa SDS-3008

Pros and Cons

Pros:

• Extreme Robustness & Certifications: Built for the most demanding and hazardous environments.

• Advanced Feature Set: True Layer 3 routing and advanced security features.

• Seamless Cisco Integration: Ideal for companies with a "Cisco-only" IT policy. Works seamlessly with Cisco DNA Center and FND.

• High Port Density & Flexibility: 12 ports with a strong mix of copper and fiber.

• Unmatched Support & Ecosystem: Backed by Cisco's global support and extensive documentation.

Cons:

• High Cost: Significantly more expensive than comparable "smart" switches from vendors like Moxa.

• Complexity: Requires a high level of networking expertise, particularly with Cisco IOS CLI.

• Vendor Lock-in: Advanced features like REP and FND work best in an all-Cisco environment.

• No Integrated PoE: This specific model does not provide Power over Ethernet.

Who is this switch for?

The Cisco IE-4000-8GT4G-E is designed for:

• Large-scale Manufacturing & Process Plants: As a distribution switch in a cell/area zone.

• Oil & Gas and Mining: In harsh, remote locations with extreme temperatures and hazardous areas.

• Power Utility Substations: Where IEC 61850-3 certification is required.

• Transportation (Rail, Airports): For critical network infrastructure.

• Any organization with a standardized Cisco IT infrastructure that needs to extend it securely and reliably into the operational technology (OT) space
