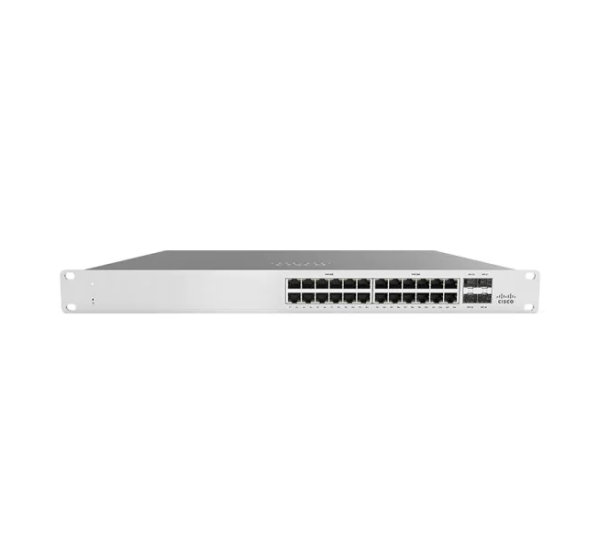

Cisco Meraki MS120-24P-HW 24-Port Gigabit PoE+ Cloud Managed Network Switch – 370W
The Cisco Meraki MS120-24P-HW is a 24-port Layer 2 Gigabit Ethernet cloud-managed switch designed for branch offices, small and medium-sized business networks, campus access deployments and IP device connectivity. It combines 24 Gigabit RJ45 access ports with PoE/PoE+ capability and four 1GbE SFP uplink interfaces.
With a 370W PoE budget, the MS120-24P-HW can provide network connectivity and power to compatible wireless access points, IP phones, surveillance cameras and other powered Ethernet devices. The switch is managed through the Cisco Meraki Dashboard, providing centralized configuration, monitoring, firmware management and troubleshooting.
Cisco Meraki MS120-24P-HW Key Features
- 24 × 10/100/1000 Mbps RJ45 Gigabit Ethernet ports
- PoE and PoE+ support with 370W available power budget
- 4 × 1GbE SFP uplink interfaces
- 56Gbps switching capacity
- Layer 2 access switching
- Cloud-managed through Cisco Meraki Dashboard
- Dedicated management interface
- 802.1Q VLAN tagging
- 802.1X authentication
- DHCP snooping
- IPv4 and IPv6 ACL support
- SNMP and Syslog integration
- Automatic firmware upgrades
- Voice and video QoS capabilities
Cisco Meraki MS120-24P-HW Technical Specifications
| Specification |
Details |
| Brand |
Cisco Meraki |
| Model |
MS120-24P-HW |
| Product Type |
Cloud-Managed Layer 2 Gigabit PoE+ Switch |
| RJ45 Ethernet Ports |
24 × 10/100/1000 Mbps |
| SFP Uplinks |
4 × 1GbE SFP |
| Dedicated Management Interface |
1 |
| Switching Capacity |
56Gbps |
| PoE Capability |
PoE / PoE+ |
| PoE Budget |
370W |
| Maximum Power Load |
Approximately 425W |
| Management |
Cisco Meraki Dashboard |
| Layer |
Layer 2 |
| VLAN |
802.1Q VLAN tagging |
| Authentication |
802.1X |
| Network Services |
DHCP Snooping, DHCP Relay |
| Security |
IPv4/IPv6 ACL support |
| QoS |
Voice and video QoS |
| Mounting |
1U Rack Mount |
| Dimensions |
1.73 × 17.32 × 10 inches (4.4 × 44 × 25 cm) |
| Weight |
Approximately 4.20 kg |
| Operating Temperature |
0°C to 45°C |
| Operating Humidity |
5% to 95% |
| Power Supply |
Fixed internal power supply |
Cisco Meraki MS120-24P-HW PoE+ Networking
The MS120-24P-HW supports PoE and PoE+ device powering through its copper access ports. Its 370W PoE budget makes it suitable for deployments where multiple network-connected devices need both Ethernet connectivity and centralized power.
Compatible powered devices may include wireless access points, VoIP phones, IP cameras and other IEEE-compliant PoE/PoE+ equipment. Actual power availability per port depends on the connected device and the switch's overall PoE budget.
Cloud Management with Cisco Meraki Dashboard
The MS120-24P-HW is designed for centralized cloud management through the Cisco Meraki Dashboard. Administrators can configure switch ports, monitor network activity, review client and port statistics, manage firmware updates and perform remote troubleshooting from the dashboard.
Security and Network Management
- 802.1X authentication
- 802.1Q VLAN tagging
- DHCP snooping
- DHCP relay
- IPv4 and IPv6 ACL support
- SNMP and Syslog integration
- Voice and video QoS
- Remote packet capture tools through Meraki Dashboard
- Automatic firmware upgrades
Cisco Meraki MS120-24P-HW Applications
- Small and medium-sized business networks
- Branch office network access
- Campus access switching
- IP surveillance camera networks
- VoIP and IP telephone deployments
- Wireless access point connectivity
- PoE-powered IoT deployments
- Enterprise LAN access networks
Cisco Meraki MS120-24P-HW Compatibility
The MS120-24P-HW is compatible with supported Cisco Meraki networking environments and can provide Ethernet and PoE/PoE+ connectivity to standards-compliant network devices. Its four 1GbE SFP interfaces can be used with compatible Meraki-supported optical or copper SFP modules for uplink connectivity.
Before deployment, verify the required Meraki licensing, Dashboard organization requirements, supported SFP optics and the power requirements of connected PoE devices.
Cisco Meraki MS120-24P-HW Price in Bangladesh
For the latest Cisco Meraki MS120-24P-HW price in Bangladesh, contact Datacom Technologies (BD). Pricing and availability may vary depending on product condition, sourcing, warranty and Meraki licensing requirements.
Why Choose Cisco Meraki MS120-24P-HW?
- 24-port Gigabit Ethernet access switching
- 370W PoE/PoE+ power budget for compatible devices
- Four 1GbE SFP uplink ports
- Centralized cloud management through Meraki Dashboard
- Layer 2 switching with enterprise security and management features
- Suitable for branch, campus and SMB network deployments
Buy Cisco Meraki MS120-24P-HW in Bangladesh
To purchase the Cisco Meraki MS120-24P-HW 24-Port Gigabit PoE+ Network Switch in Bangladesh, contact Datacom Technologies (BD) for current pricing, product sourcing, compatibility information and licensing guidance.
