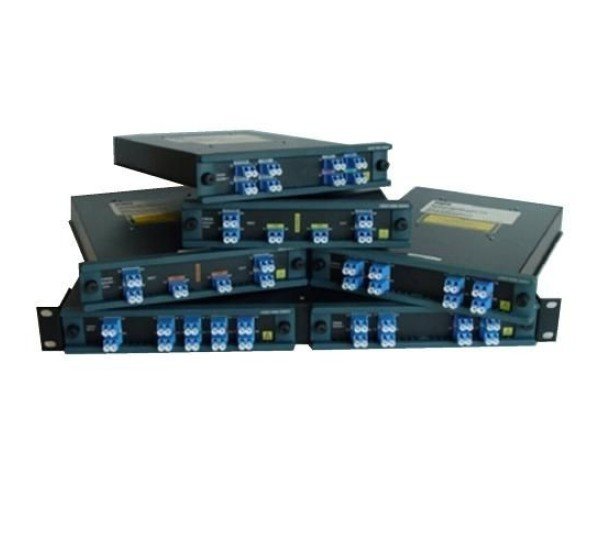

Cisco CWDM-OADM1-1470 1470nm Dual Single-Channel CWDM OADM Module – Passive Optical Add/Drop
The Cisco CWDM-OADM1-1470 is a passive Coarse Wavelength Division Multiplexing (CWDM) Optical Add/Drop Multiplexer module designed to add and drop the 1470nm optical channel in a CWDM network. It supports dual single-channel add/drop operation, allowing the same wavelength to be added or dropped in both directions of an optical ring.
Unlike an optical transceiver such as a Cisco CWDM SFP, the CWDM-OADM1-1470 is a passive optical networking component. It does not generate, receive or electrically convert Ethernet signals. Instead, it works with compatible Cisco CWDM transceivers to route the 1470nm wavelength through a CWDM optical infrastructure.
Cisco CWDM-OADM1-1470 Key Features
- Passive CWDM Optical Add/Drop Multiplexer
- Dedicated 1470nm CWDM wavelength
- Dual single-channel OADM architecture
- Adds and drops the 1470nm channel in both directions of an optical ring
- Other CWDM wavelengths pass through the OADM
- Transparent to 1300nm wavelengths for compatible legacy services
- Color-coded gray connector identification for the 1470nm channel
- Integrated monitor port for optical power meter or optical spectrum analyzer
- Designed for compatible Cisco CWDM chassis and optical networking platforms
Cisco CWDM-OADM1-1470 Technical Specifications
| Specification |
Details |
| Brand |
Cisco |
| Model |
CWDM-OADM1-1470= |
| Device Type |
Dual Single-Channel CWDM Optical Add/Drop Multiplexer |
| Optical Technology |
Coarse Wavelength Division Multiplexing (CWDM) |
| Channel Wavelength |
1470nm |
| OADM Function |
Dual Add/Drop |
| Network Architecture |
Ring; point-to-point possible |
| Network Fiber Strands |
2 |
| Maximum Gigabit Ethernet Links |
2 |
| Network Interface |
Dual optical fiber connection |
| Equipment Interface |
Dual SC-type optical connectors |
| Channel Color Code |
Gray |
| Monitor Port |
Supported for optical power meter or optical spectrum analyzer |
| 1300nm Transparency |
Supported |
| Device Type |
Passive optical component |
| Power Requirement |
Passive; no electrical power required |
| Form Factor |
CWDM chassis plug-in module |
1470nm CWDM Optical Add/Drop
The CWDM-OADM1-1470 is specifically designed for the 1470nm CWDM channel. In a CWDM ring, it can add a local 1470nm service onto the optical network and drop the corresponding 1470nm service from the network. Other CWDM wavelengths are passed through the OADM.
Dual Single-Channel OADM Architecture
Cisco's dual single-channel OADM architecture allows the 1470nm channel to be added and dropped in both directions of an optical ring. This supports bidirectional CWDM ring deployments while using two network fiber strands.
Compatibility with Cisco CWDM Transceivers
The OADM equipment-side connectors are designed to interface with compatible, color-matched Cisco CWDM GBIC or CWDM SFP transceivers. For the 1470nm channel, the corresponding CWDM optical transceiver should use the same 1470nm wavelength.
Optical Monitoring
The Cisco CWDM-OADM1-1470 includes a monitor port that can be connected to an optical power meter or optical spectrum analyzer. This provides a way to monitor optical channel power and assist with CWDM network troubleshooting without directly disrupting the primary optical service.
1300nm Transparency
Cisco documentation specifies that the dual single-channel OADM modules are transparent to the 1300nm wavelength. This capability can allow compatible legacy SONET, SDH or ATM services to coexist with CWDM services on the same optical infrastructure.
Applications
- CWDM optical ring networks
- 1470nm wavelength add/drop applications
- Enterprise campus optical networks
- Metropolitan-area optical networks
- Service-provider access networks
- Multi-service CWDM infrastructure
- Legacy 1300nm and CWDM wavelength integration
- Optical network monitoring and troubleshooting
Compatibility
The CWDM-OADM1-1470 is intended for use within Cisco CWDM passive optical systems and compatible CWDM chassis. Cisco documentation states that two OADM modules can be installed in the Cisco CWDM-CHASSIS-2 2-slot chassis.
The OADM should be paired with a compatible 1470nm CWDM GBIC or CWDM SFP on the equipment side. Optical components should be matched by wavelength and the fiber topology should be engineered according to the complete CWDM link budget.
Important: Passive OADM, Not a Transceiver
Although this product is sometimes listed online as an optical transceiver module, the Cisco CWDM-OADM1-1470 is actually a passive optical add/drop module. It does not contain an Ethernet transmitter or receiver and does not provide an independent 1Gbps or 10Gbps electrical interface. Its purpose is wavelength routing within a CWDM optical network.
End-of-Sale Information
Cisco has announced the CWDM-OADM1-1470= as part of the end-of-sale Cisco CWDM OADM product family. Cisco states that there is currently no replacement product available. Cisco's published lifecycle information lists August 31, 2029 as the end of hardware support for the affected CWDM OADM products.
Cisco CWDM-OADM1-1470 Price in Bangladesh
The price of the Cisco CWDM-OADM1-1470 in Bangladesh depends on product condition, sourcing, availability and warranty/support requirements. As this is an end-of-sale passive optical module, availability may vary. Contact Datacom Technologies (BD) for the latest price and availability.
Sales: sales@datacom.com.bd
Why Choose Cisco CWDM-OADM1-1470?
- Dedicated 1470nm CWDM optical channel
- Dual single-channel add/drop architecture
- Suitable for CWDM ring deployments
- Passive operation with no electrical power requirement
- Supports optical monitoring through a dedicated monitor port
- Transparent to compatible 1300nm services
- Designed for integration with Cisco CWDM optical transceivers
Buy Cisco CWDM-OADM1-1470 in Bangladesh
Looking for a Cisco CWDM-OADM1-1470 1470nm OADM module in Bangladesh? Contact Datacom Technologies (BD) for pricing, availability and CWDM compatibility guidance.
