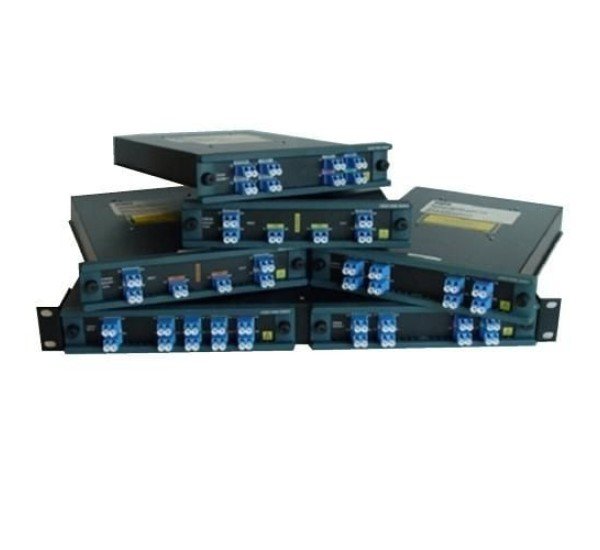

Cisco CWDM-OADM1-1510 1510nm Dual Single-Channel CWDM OADM Module – Passive Optical Add/Drop
The Cisco CWDM-OADM1-1510 is a passive Coarse Wavelength Division Multiplexing (CWDM) Optical Add/Drop Multiplexer module designed to add and drop the 1510nm optical channel within a CWDM network. It provides dual single-channel add/drop functionality, allowing the 1510nm wavelength to be added or dropped in both directions of a CWDM optical ring.
Unlike an active Ethernet optical transceiver, the CWDM-OADM1-1510 is a passive optical networking component. It does not generate, receive or electrically convert Ethernet signals. Instead, it routes the 1510nm optical wavelength through a compatible Cisco CWDM passive optical system.
Cisco CWDM-OADM1-1510 Key Features
- Passive CWDM Optical Add/Drop Multiplexer
- Dedicated 1510nm CWDM wavelength
- Dual single-channel OADM architecture
- Adds and drops the 1510nm channel in both directions of an optical ring
- Other CWDM wavelengths pass through the OADM
- Blue color-coded connector identification for the 1510nm channel
- Integrated monitor port for optical power meter or optical spectrum analyzer
- Designed for compatible Cisco CWDM chassis and optical transceivers
Cisco CWDM-OADM1-1510 Technical Specifications
| Specification |
Details |
| Brand |
Cisco |
| Model |
CWDM-OADM1-1510= |
| Device Type |
Dual Single-Channel CWDM Optical Add/Drop Multiplexer |
| Optical Technology |
Coarse Wavelength Division Multiplexing (CWDM) |
| Channel Wavelength |
1510nm |
| OADM Function |
Dual Add/Drop |
| Network Architecture |
Ring; point-to-point possible |
| Network Fiber Strands |
2 |
| Maximum Gigabit Ethernet Links |
2 |
| Connector Color Code |
Blue |
| Monitor Port |
Supported for optical power meter or optical spectrum analyzer |
| Optical Interface |
Dual optical fiber connection |
| Form Factor |
CWDM chassis plug-in module |
| Operating Temperature |
0 to 60°C |
| Storage Temperature |
-40 to 85°C |
| Power Requirement |
Passive; no electrical power required |
1510nm CWDM Optical Add/Drop
The Cisco CWDM-OADM1-1510 is specifically designed for the 1510nm CWDM channel. In a CWDM ring, it can add a local 1510nm service onto the optical network and drop the corresponding 1510nm service from the network. Other CWDM wavelengths continue through the optical path.
Dual Single-Channel OADM Architecture
Cisco's dual single-channel OADM architecture allows the 1510nm channel to be added and dropped in both directions of an optical ring. Cisco specifies two network fiber strands for the OADM and a maximum of two Gigabit Ethernet links in this architecture.
1510nm Blue Color Coding
Cisco uses color coding to identify the individual CWDM wavelengths. The CWDM-OADM1-1510 uses a blue connector color code, corresponding to the 1510nm CWDM channel.
Optical Monitoring
The OADM architecture includes a monitor port that can be connected to an optical power meter or optical spectrum analyzer. This provides optical monitoring and troubleshooting capability within the CWDM network without replacing the primary optical path.
Cisco CWDM Transceiver Compatibility
The CWDM-OADM1-1510 is designed to work with compatible Cisco 1510nm CWDM optical transceivers. The equipment-side optical channel should be matched to the 1510nm wavelength. Cisco's CWDM passive system uses wavelength-matched optical transceivers with the corresponding OADM channel.
Applications
- CWDM optical ring networks
- 1510nm wavelength add/drop applications
- Enterprise campus optical networks
- Metropolitan-area optical networks
- Service-provider access networks
- Multi-service CWDM infrastructure
- Optical network expansion over existing fiber
- Optical network monitoring and troubleshooting
Compatibility
The Cisco CWDM-OADM1-1510 is intended for use within Cisco CWDM passive optical systems and compatible CWDM chassis. Cisco identifies the CWDM-CHASSIS-2= as a 2-slot, 1RU chassis for the CWDM passive optical system.
The OADM should be paired with a compatible 1510nm CWDM optical transceiver. Verify the wavelength, connector type, chassis compatibility and complete optical link budget before deployment.
Important: Passive OADM, Not an Active Transceiver
Although this product may be described by some sellers as a “transceiver OADM module,” the Cisco CWDM-OADM1-1510 is a passive optical add/drop module. It does not contain an Ethernet transmitter or receiver and does not provide an independent electrical network interface. Its purpose is wavelength routing within a CWDM optical network.
End-of-Sale Information
Cisco has announced the CWDM-OADM1-1510= as part of the end-of-sale Cisco CWDM OADM product family. Cisco states that there is currently no replacement available for the CWDM OADM modules. Cisco's published lifecycle information gives August 31, 2029 as the end of hardware support for the affected products.
Cisco CWDM-OADM1-1510 Price in Bangladesh
The price of the Cisco CWDM-OADM1-1510 in Bangladesh depends on product condition, sourcing, availability and warranty/support requirements. As this is an end-of-sale passive optical module, availability may vary. Contact Datacom Technologies (BD) for the latest price and availability.
Sales: sales@datacom.com.bd
Why Choose Cisco CWDM-OADM1-1510?
- Dedicated 1510nm CWDM optical channel
- Dual single-channel add/drop architecture
- Suitable for CWDM ring deployments
- Passive operation with no electrical power requirement
- Integrated optical monitoring capability
- Blue color-coded 1510nm channel identification
- Designed for integration with Cisco CWDM optical transceivers
- Suitable for enterprise and metropolitan optical infrastructure
Buy Cisco CWDM-OADM1-1510 in Bangladesh
Looking for a Cisco CWDM-OADM1-1510 1510nm OADM module in Bangladesh? Contact Datacom Technologies (BD) for pricing, availability and CWDM compatibility guidance.
