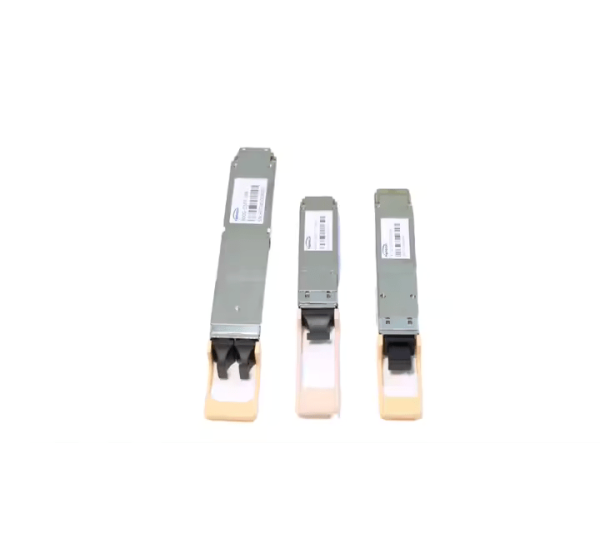

Cisco QSFP-200G-FR4 200G 2KM Transceiver Module

About Cisco QSFP-200G-FR4-S 200GBASE-FR4 2km QSFP56 Transceiver Module in Bangladesh

The Cisco QSFP-200G-FR4-S is a high-speed 200G QSFP56 optical transceiver designed for 200 Gigabit Ethernet networking over duplex single-mode fiber. Supporting 200GBASE-FR4 and link distances of up to 2 kilometers, it provides a high-density optical connectivity solution for modern data centers, enterprise networks, cloud infrastructure and high-performance network environments.

The module uses a duplex LC optical connector and operates over duplex single-mode fiber (SMF). Cisco specifies four CWDM wavelengths of 1270nm, 1290nm, 1310nm and 1330nm for the 200GBASE-FR4 optical interface. :contentReference[oaicite:2]{index=2}

Cisco QSFP-200G-FR4-S 200G Transceiver Specifications & Features

Overview

The Cisco QSFP-200G-FR4-S provides 200 Gigabit Ethernet connectivity using the QSFP56 form factor and 200GBASE-FR4 optical technology. It is designed for high-bandwidth network connections where longer reach than short-range multimode fiber solutions is required.

With a maximum specified reach of 2km over duplex SMF, the module is suitable for interconnecting data center switches, routers, network devices and other compatible 200GbE platforms across relatively long fiber links. :contentReference[oaicite:3]{index=3}

Buy Cisco QSFP-200G-FR4-S 200G Transceiver in Bangladesh

Purchase the Cisco QSFP-200G-FR4-S 200GBASE-FR4 2km QSFP56 Transceiver Module from Datacom Technologies (BD). We supply Cisco optical transceivers, QSFP/QSFP56 modules, enterprise networking equipment, data center hardware and high-speed optical connectivity solutions in Bangladesh with competitive pricing and technical consultation.

Key Features

• 200Gbps / 200GE data rate
• QSFP56 form factor
• 200GBASE-FR4 optical standard
• Up to 2km transmission distance
• Duplex single-mode fiber support
• Duplex LC optical connector
• Four CWDM optical wavelengths
• 1270nm, 1290nm, 1310nm and 1330nm wavelengths
• 200GAUI-4 electrical interface
• CEI-56G-VSR-PAM4 support
• Host-side FEC
• Up to 4dB supported insertion loss
• 0°C to 70°C operating temperature
• Designed for compatible Cisco networking platforms

Applications

• 200G Ethernet Networks
• Data Center Interconnects
• Enterprise Core Networking
• Cloud Data Centers
• High-Speed Switch Uplinks
• Router-to-Switch Connections
• Data Center Spine-and-Leaf Networks
• Server and Network Aggregation
• High-Performance Computing Networks
• Metro Data Center Connectivity

200Gbps High-Speed Networking

The Cisco QSFP-200G-FR4-S is designed for 200 Gigabit Ethernet connectivity, providing four times the nominal bandwidth of a 50GbE connection and twice the bandwidth of a 100GbE connection.

This high bandwidth makes the module suitable for modern data center networks where large volumes of east-west traffic, storage traffic, virtualization traffic and application data must be transferred efficiently.

200GBASE-FR4 Optical Technology

The QSFP-200G-FR4-S follows the 200GBASE-FR4 optical configuration. Cisco specifies four CWDM wavelengths that carry the 200GbE signal through the optical interface. :contentReference[oaicite:4]{index=4}

The four specified nominal wavelengths are 1270nm, 1290nm, 1310nm and 1330nm. Multiplexing and demultiplexing of these optical wavelengths are handled within the transceiver. :contentReference[oaicite:5]{index=5}

2km Transmission Distance

The Cisco QSFP-200G-FR4-S supports link lengths of up to 2km over duplex single-mode fiber. This makes it suitable for data center interconnects and other network deployments where a 200G link must extend beyond the shorter distances typically associated with multimode SR4 optics. :contentReference[oaicite:6]{index=6}

Actual achievable distance depends on fiber quality, connector performance, insertion loss, patch panels and the overall optical link budget.

Duplex LC Connector

The module uses a duplex LC optical connector. Duplex LC connectivity provides separate transmit and receive optical paths through a compact connector design.

Cisco specifies PC or Ultra-Physical Contact (UPC) patch cords for supported connections. :contentReference[oaicite:7]{index=7}

Single-Mode Fiber Support

The QSFP-200G-FR4-S is designed for duplex single-mode fiber (SMF). Cisco identifies the supported fiber as SMF with a G.652 core specification in its optical documentation. :contentReference[oaicite:8]{index=8}

Using the appropriate single-mode fiber infrastructure helps maintain the optical characteristics required for reliable 200G transmission over the specified 2km distance.

Four CWDM Wavelengths

The 200G-FR4 optical architecture uses four wavelength channels at 1270nm, 1290nm, 1310nm and 1330nm. Each optical lane carries part of the overall 200GbE signal. :contentReference[oaicite:9]{index=9}

The wavelengths are multiplexed into the duplex fiber connection within the module, allowing a high-bandwidth 200G connection to operate over a standard duplex SMF infrastructure.

QSFP56 Form Factor

The Cisco QSFP-200G-FR4-S uses the QSFP56 form factor. QSFP56 is designed for high-speed 200G networking and provides a compact optical interface suitable for high-density switch and router deployments.

Its compact form factor allows network operators to deploy high-bandwidth interfaces without requiring the physical space of multiple lower-speed optical modules.

200GAUI-4 Electrical Interface

The module uses a 200GAUI-4 electrical host interface and supports CEI-56G-VSR-PAM4 electrical signaling. Cisco specifies 200GAUI-4/CEI-56G-VSR-PAM4 for the QSFP-200G-FR4-S. :contentReference[oaicite:10]{index=10}

This electrical architecture enables the host networking platform to communicate with the four-lane optical interface of the FR4 transceiver.

Host FEC

Cisco specifies that FEC is performed on the host platform for the QSFP-200G-FR4-S. :contentReference[oaicite:11]{index=11}

Therefore, the host switch, router, NIC or other networking platform must provide the appropriate FEC functionality for the supported 200G link.

Optical Link Budget

Cisco specifies a maximum supported insertion loss of 4dB for the QSFP-200G-FR4-S. The documented average transmit power per lane ranges from -4.2dBm to 4.7dBm, while the average receive power per lane is specified from -8.2dBm to 4.7dBm. :contentReference[oaicite:12]{index=12}

Optical link performance depends on the complete fiber path, including patch cords, connectors, splices and patch panels.

Data Center Interconnect

The 2km reach of the QSFP-200G-FR4-S makes it useful for connecting network infrastructure across data center facilities, equipment rooms and other locations where a 200G single-mode fiber link is required.

It can be used for switch-to-switch, router-to-switch and other compatible 200GbE optical connections.

Enterprise Network Applications

The Cisco QSFP-200G-FR4-S can be deployed in high-bandwidth enterprise networks where 200GbE connectivity is required between core, aggregation and data center networking devices.

• Core network uplinks
• Data center spine connections
• Leaf-to-spine links
• High-speed aggregation
• Storage network connectivity
• Cloud infrastructure

Operating Temperature

The Cisco 200G QSFP56 optical modules are specified for an operating temperature range of 0°C to 70°C. Storage temperature is specified from -40°C to 85°C. :contentReference[oaicite:13]{index=13}

The transceiver should be installed in a networking platform that provides appropriate airflow and environmental conditions within the specified operating range.

Mechanical Specifications

Cisco specifies the module dimensions with pull tab as approximately 8.5 x 18.4 x 78.3/93.3mm (H x W x D). The maximum weight for optical modules is 100g. :contentReference[oaicite:14]{index=14}

Cisco Platform Compatibility

Cisco states that its QSFP modules are supported on Cisco switches, routers and NICs as well as selected third-party host platforms and NICs. Compatibility should be checked against the Cisco Transceiver Modules Compatibility Matrix and the exact host platform before installation. :contentReference[oaicite:15]{index=15}

Optical transceiver compatibility can depend on the switch or router model, software release, port type and transceiver support policy. Always verify the exact Cisco platform before ordering.

200G FR4 vs 200G SR4

Compatibility Considerations

Before installing the Cisco QSFP-200G-FR4-S, verify:

• Host device supports QSFP56 200G optics
• Host port supports 200GBASE-FR4
• Cisco software and firmware support the transceiver
• Duplex LC SMF infrastructure is available
• Fiber link budget is within the supported optical limits
• Host-side FEC is supported
• Operating temperature remains within specification

Do not assume that every QSFP56 port supports every 200G optical module. Confirm compatibility with the exact Cisco switch, router, NIC or other host platform.

Benefits

• 200Gbps high-speed Ethernet connectivity
• Up to 2km reach over single-mode fiber
• 200GBASE-FR4 support
• Compact QSFP56 form factor
• Duplex LC connector
• Four CWDM wavelengths
• Suitable for data center interconnects
• Suitable for high-density enterprise networks
• Supports 200GAUI-4 electrical signaling
• Designed for compatible Cisco networking platforms

Why Buy from Datacom Technologies (BD)?

Datacom Technologies (BD) supplies Cisco optical transceivers, QSFP/QSFP56 modules, enterprise networking equipment, data center hardware and high-speed optical connectivity solutions in Bangladesh. Customers can receive competitive pricing, technical consultation, deployment assistance and nationwide delivery.

• Call/WhatsApp: +8801748173213
• Email: sales@datacom.com.bd
• Alternative Email: datacomtechnologiesbd@gmail.com
• Office: Tropical Center, 218, Dr. Kudroti Khuda Road, New Elephant Road, Dhaka-1205, Bangladesh

Frequently Asked Questions (FAQ)

Q1: What is the Cisco QSFP-200G-FR4-S?
The Cisco QSFP-200G-FR4-S is a 200G QSFP56 optical transceiver supporting 200GBASE-FR4 over duplex single-mode fiber.

Q2: What is the maximum transmission distance?
The module supports link lengths of up to 2km over duplex single-mode fiber. :contentReference[oaicite:16]{index=16}

Q3: What connector does it use?
It uses a duplex LC optical connector. :contentReference[oaicite:17]{index=17}

Q4: What fiber type is required?
The module is designed for duplex single-mode fiber (SMF). :contentReference[oaicite:18]{index=18}

Q5: What wavelengths does QSFP-200G-FR4-S use?
Cisco specifies four CWDM wavelengths: 1270nm, 1290nm, 1310nm and 1330nm. :contentReference[oaicite:19]{index=19}

Q6: What is the data rate?
The nominal data rate is 200GE / 200Gbps. :contentReference[oaicite:20]{index=20}

Q7: What form factor does it use?
The transceiver uses the QSFP56 form factor.

Q8: Does it support 200GBASE-FR4?
Yes. Cisco identifies QSFP-200G-FR4-S as a 200GBASE-FR4 transceiver. :contentReference[oaicite:21]{index=21}

Q9: What electrical interface does it use?
Cisco specifies 200GAUI-4 and CEI-56G-VSR-PAM4 electrical signaling. :contentReference[oaicite:22]{index=22}

Q10: Where is QSFP-200G-FR4-S commonly used?
It is suitable for data center interconnects, high-speed switch links, enterprise core networks, cloud infrastructure and other compatible 200GbE deployments.

Q11: Is QSFP-200G-FR4-S compatible with multimode fiber?
No. The Cisco FR4 module is designed for duplex single-mode fiber. For short-range multimode applications, Cisco offers other 200G QSFP56 modules such as SR4. :contentReference[oaicite:23]{index=23}

Q12: Does the module require FEC?
Cisco states that FEC is performed on the host platform. :contentReference[oaicite:24]{index=24}

Q13: What is the operating temperature?
Cisco specifies 0°C to 70°C for its 200G QSFP56 optical modules. :contentReference[oaicite:25]{index=25}

Q14: Is QSFP-200G-FR4-S compatible with Cisco switches and routers?
Cisco states that its QSFP modules are supported on Cisco switches, routers and NICs as well as selected third-party platforms. Exact compatibility should be verified for the target device. :contentReference[oaicite:26]{index=26}

Q15: Where can I buy Cisco QSFP-200G-FR4-S in Bangladesh?
You can contact Datacom Technologies (BD) for Cisco QSFP56 transceivers, optical modules, enterprise networking equipment and data center connectivity solutions with competitive pricing and nationwide delivery.
