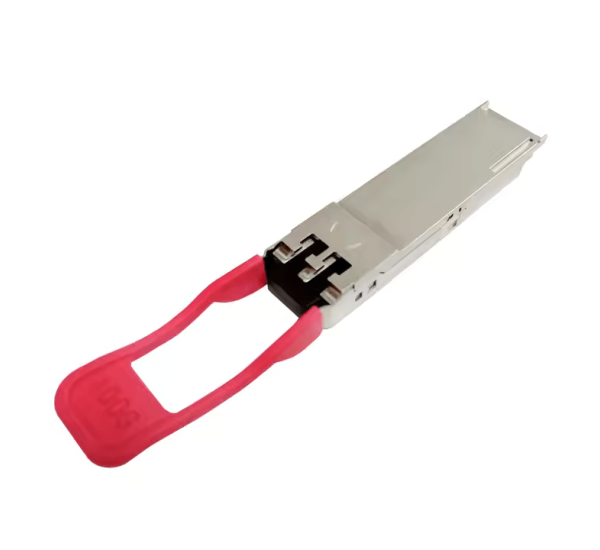

Cisco QSFP-200G-FR4-S Transceiver Module

About Cisco QSFP-200G-FR4-S 200G QSFP56 2km Duplex LC SMF Transceiver Module in Bangladesh

The Cisco QSFP-200G-FR4-S is a 200Gbps QSFP56 optical transceiver designed for high-speed Ethernet connectivity over single-mode fiber. It supports the 200GBASE-FR4 standard and provides link distances of up to 2 kilometers using duplex LC single-mode fiber.

The transceiver uses four CWDM optical wavelengths at 1270nm, 1290nm, 1310nm and 1330nm. The four optical wavelengths are multiplexed and demultiplexed inside the module to deliver a single 200Gbps Ethernet connection over duplex SMF. Cisco specifies G.652 single-mode fiber and a duplex LC connector for this module. Cisco

Cisco QSFP-200G-FR4-S Specifications & Features

Overview

The Cisco QSFP-200G-FR4-S provides high-bandwidth 200Gbps Ethernet connectivity for data center and high-performance networking environments. Its QSFP56 form factor combines four optical lanes using CWDM wavelengths into a duplex single-mode fiber connection.

According to Cisco, the module supports link lengths of up to 2km over SMF and is compliant with IEEE 802.3 200GBASE-FR4 requirements as well as 200GAUI-4 and CEI-56G-VSR-PAM4 standards. Cisco

Buy Cisco QSFP-200G-FR4-S 200G Transceiver in Bangladesh

Purchase the Cisco QSFP-200G-FR4-S 200G QSFP56 FR4 transceiver from Datacom Technologies (BD). We supply Cisco networking products, optical transceivers, fiber networking components, switches, routers and data center infrastructure in Bangladesh with competitive pricing, technical consultation and nationwide delivery.

Key Features

• 200Gbps Ethernet connectivity
• QSFP56 optical transceiver form factor
• 200GBASE-FR4 compliant
• Up to 2km reach over single-mode fiber
• Duplex LC optical connector
• G.652 single-mode fiber support
• 1270nm, 1290nm, 1310nm and 1330nm CWDM wavelengths
• 200GAUI-4 electrical interface
• CEI-56G-VSR-PAM4 support
• Up to 4dB supported insertion loss
• 0°C to 70°C operating temperature
• Suitable for compatible Cisco networking platforms

200Gbps High-Speed Networking

The QSFP-200G-FR4-S provides a 200Gbps Ethernet interface for high-bandwidth data center networking. It is designed for environments where higher port density and greater bandwidth are required between switches, routers, servers and other network infrastructure.

Its 200GBASE-FR4 architecture is particularly useful for data center interconnects and high-speed switch-to-switch links where single-mode fiber is preferred.

200GBASE-FR4 Optical Technology

The Cisco QSFP-200G-FR4-S uses four CWDM optical wavelengths to transmit the 200Gbps Ethernet signal. Cisco specifies wavelengths of 1270nm, 1290nm, 1310nm and 1330nm. Multiplexing and demultiplexing of these four wavelengths are managed within the transceiver. Cisco

This architecture enables a 200Gbps connection over a duplex single-mode fiber pair rather than requiring a large parallel-fiber MPO connection.

2km Transmission Distance

The QSFP-200G-FR4-S supports link lengths of up to 2 kilometers over compatible single-mode fiber. This makes it suitable for many data center, campus and infrastructure interconnection scenarios where distances exceed the reach of short-range multimode optics.

Actual achievable distance depends on fiber quality, connector losses, patch panels, insertion loss and the complete optical link budget.

Duplex LC Connector

The transceiver uses a duplex LC optical connector. Cisco specifies PC or UPC connector types for supported patch cords and does not support APC patch cords for this module. Cisco

Duplex LC connectivity uses two optical fibers, with one fiber dedicated to transmission and the other to reception.

Single-Mode Fiber Support

The QSFP-200G-FR4-S is designed for single-mode fiber and Cisco specifies G.652 fiber for the module.

Single-mode fiber is appropriate for longer-distance optical networking and provides the optical characteristics required by the 200GBASE-FR4 implementation.

Optical Wavelengths

The four wavelengths operate on the CWDM grid and are multiplexed within the transceiver. Cisco specifies these four wavelengths for the QSFP-200G-FR4-S. Cisco

QSFP56 Form Factor

The QSFP-200G-FR4-S uses the QSFP56 form factor. QSFP56 is designed for high-speed 200Gbps networking and provides a compact optical interface suitable for modern high-density data center equipment.

The Cisco module has maximum dimensions of approximately 8.5 × 18.4 × 78.3/93.3mm, depending on the pull-tab configuration. Cisco lists a maximum optical-module weight of 100 grams. Cisco

200GAUI-4 and PAM4 Electrical Interface

The QSFP-200G-FR4-S uses a 200GAUI-4 electrical interface and supports the CEI-56G-VSR-PAM4 electrical standard. Cisco specifies the module for 200GE operation using this high-speed electrical architecture. Cisco

FEC Performed by Host Platform

Cisco specifies that FEC is performed on the host platform for the QSFP-200G-FR4-S. The networking device hosting the transceiver therefore handles the forward error correction function required by the link.

Optical Link Budget

Cisco specifies a maximum supported insertion loss of 4dB for the QSFP-200G-FR4-S. The documented average transmit power per lane ranges from -4.2dBm to 4.7dBm, while average receive power per lane ranges from -8.2dBm to 4.7dBm. Cisco

For reliable deployment, the complete optical path should be evaluated, including fiber length, patch cables, connectors, patch panels and other sources of insertion loss.

Operating Temperature

The QSFP-200G-FR4-S is specified for an operating temperature range of 0°C to 70°C. This makes it suitable for standard data center and controlled networking environments.

Storage temperature for Cisco's 200G QSFP56 optical modules is specified from -40°C to 85°C. Cisco

Data Center Applications

• 200G switch-to-switch connections
• Data center interconnects
• High-speed aggregation networks
• Core and distribution networking
• Server and network infrastructure
• High-performance computing environments
• Enterprise data center networks
• Short-distance metro or campus interconnection where supported

Compatibility

Cisco states that its QSFP modules are supported on Cisco switches, routers and NICs as well as third-party host platforms and NICs, subject to the applicable transceiver compatibility matrix. Cisco

Before purchasing, verify that the target Cisco device specifically supports QSFP-200G-FR4-S and that the required software and firmware versions are compatible with the module.

QSFP-200G-FR4-S vs QSFP-200G-SR4-S

The two modules serve different optical environments. Cisco specifies the FR4 module for 2km duplex SMF, while the SR4-S module is intended for shorter multimode-fiber connections. Cisco

Installation Considerations

• Confirm QSFP56 port compatibility
• Verify Cisco platform support
• Use compatible G.652 single-mode fiber
• Use duplex LC PC/UPC patch cords
• Verify the complete optical link budget
• Keep the total insertion loss within the specified limit
• Check transceiver and host firmware compatibility

Benefits

• 200Gbps high-speed Ethernet connectivity
• 2km single-mode fiber reach
• Duplex LC connectivity
• 200GBASE-FR4 compliance
• Four CWDM wavelengths
• Compact QSFP56 form factor
• Suitable for high-density data center networks
• Supports modern PAM4-based electrical interfaces
• Suitable for compatible Cisco switches, routers and NICs

Why Buy from Datacom Technologies (BD)?

Datacom Technologies (BD) supplies Cisco optical transceivers, networking modules, switches, routers, fiber-optic components and data center infrastructure in Bangladesh. Customers can receive competitive pricing, technical consultation, deployment assistance and nationwide delivery.

• Call/WhatsApp: +8801748173213
• Email: sales@datacom.com.bd
• Alternative Email: datacomtechnologiesbd@gmail.com
• Office: Tropical Center, 218, Dr. Kudroti Khuda Road, New Elephant Road, Dhaka-1205, Bangladesh

Frequently Asked Questions (FAQ)

Q1: What is the Cisco QSFP-200G-FR4-S?
The Cisco QSFP-200G-FR4-S is a 200Gbps QSFP56 optical transceiver supporting 200GBASE-FR4 over duplex single-mode fiber.

Q2: What is the maximum transmission distance?
The module supports link lengths of up to 2km over compatible single-mode fiber.

Q3: What connector does QSFP-200G-FR4-S use?
It uses a duplex LC optical connector.

Q4: What fiber type does it require?
Cisco specifies single-mode fiber with G.652 characteristics.

Q5: What wavelengths does the module use?
The module uses four CWDM wavelengths: 1270nm, 1290nm, 1310nm and 1330nm.

Q6: Is QSFP-200G-FR4-S a 200GBASE-FR4 module?
Yes. Cisco identifies the module as a 200GBASE-FR4 transceiver.

Q7: What is the form factor?
The module uses the QSFP56 form factor.

Q8: Does QSFP-200G-FR4-S support multimode fiber?
No. Cisco specifies the module for single-mode fiber. Multimode applications should use an appropriate SR4/SR4-S transceiver.

Q9: What is the maximum supported insertion loss?
Cisco specifies a maximum supported insertion loss of 4dB for the QSFP-200G-FR4-S.

Q10: What electrical interface does it use?
The module uses 200GAUI-4 and supports CEI-56G-VSR-PAM4.

Q11: Is FEC performed inside the transceiver?
Cisco specifies that FEC is performed on the host platform.

Q12: What is the operating temperature?
The specified operating temperature is 0°C to 70°C.

Q13: Can it be used with Cisco switches and routers?
Cisco states that its QSFP modules are supported on Cisco switches, routers and NICs, subject to the applicable compatibility matrix.

Q14: Is QSFP-200G-FR4-S suitable for data centers?
Yes. It is designed for high-speed 200Gbps Ethernet networking and is particularly suitable for data center links requiring up to 2km of single-mode fiber reach.
