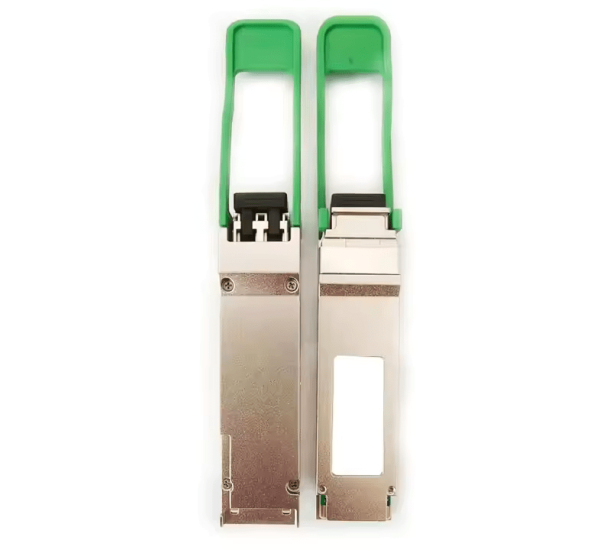

Cisco QSFP-200G-LR4 Transceiver Module

About Cisco QSFP-200G-LR4 200G QSFP56 LR4 Transceiver Module in Bangladesh

The Cisco QSFP-200G-LR4 is a high-speed 200Gbps optical transceiver designed for modern data center, enterprise networking and high-bandwidth infrastructure. Using the QSFP56 form factor and LR4 optical technology, the module provides up to 10km connectivity over single-mode fiber with duplex LC connectors.

The QSFP-200G-LR4 is designed for long-distance 200G Ethernet optical links where high bandwidth, extended reach and reliable single-mode fiber connectivity are required.

Cisco QSFP-200G-LR4 200G Transceiver Specifications & Features

Overview

The Cisco QSFP-200G-LR4 provides 200Gbps optical connectivity for high-performance networking environments. Its QSFP56 form factor enables high port density while LR4 technology provides extended optical reach over single-mode fiber.

The LR4 configuration is designed for links of up to 10km, making it suitable for data center interconnects, campus-scale infrastructure and other applications requiring longer-reach 200G connectivity.

Buy Cisco QSFP-200G-LR4 Transceiver in Bangladesh

Purchase the Cisco QSFP-200G-LR4 200G QSFP56 LR4 Transceiver Module from Datacom Technologies (BD). We supply Cisco optical transceivers, switches, routers, data center networking equipment and enterprise network components in Bangladesh with competitive pricing, technical consultation and nationwide delivery.

Key Features

• 200Gbps high-speed optical connectivity
• QSFP56 form factor
• LR4 long-reach optical technology
• Up to 10km transmission distance
• Single-Mode Fiber (SMF) support
• Duplex LC optical connector
• 1295–1309nm wavelength range
• PAM4 optical modulation
• Designed for 200G Ethernet
• High-density data center networking
• Suitable for long-distance optical interconnects

200Gbps High-Speed Connectivity

The Cisco QSFP-200G-LR4 provides a 200Gbps network interface for high-bandwidth networking environments. It is designed for applications where higher port bandwidth and efficient optical connectivity are required.

200G connectivity is suitable for modern data center switching, aggregation, backbone and high-performance infrastructure where large volumes of network traffic must be transported efficiently.

QSFP56 Form Factor

The QSFP-200G-LR4 uses the QSFP56 form factor. Cisco identifies QSFP56 as its 200Gbps transceiver platform, with products such as the QSFP-200G-SR4-S and QSFP-200G-SL4 listed within the 200G QSFP56 family. :contentReference[oaicite:2]{index=2}

The compact QSFP56 design supports high-density network deployments by allowing multiple high-speed optical ports to be installed within a relatively small physical footprint.

LR4 Long-Reach Optical Technology

LR4 is intended for long-reach optical connectivity over single-mode fiber. The Cisco QSFP-200G-LR4 configuration provides up to 10km reach, making it appropriate for extended optical links where shorter-reach multimode solutions are insufficient.

LR4 optical modules use multiple wavelengths to transport the high-speed optical signal over a duplex single-mode fiber connection.

1295–1309nm Wavelength

The QSFP-200G-LR4 operates across the approximately 1295nm to 1309nm optical wavelength range. This wavelength region is commonly used for long-reach single-mode fiber Ethernet applications.

The exact optical characteristics and operating limits should be checked against the module's official Cisco documentation and the specific hardware platform before deployment.

10km Optical Reach

The Cisco QSFP-200G-LR4 is designed for optical links up to 10km over single-mode fiber. This extended reach makes it suitable for connecting network infrastructure across larger facilities and distributed data center environments.

Actual link distance depends on fiber characteristics, optical loss, connectors, patch panels, splices and the complete optical link budget.

Duplex LC Connector

The QSFP-200G-LR4 uses a duplex LC optical interface. Duplex LC connectivity uses separate transmit and receive paths over a pair of single-mode fibers.

Use compatible single-mode LC fiber cabling and ensure correct polarity when installing the transceiver.

Single-Mode Fiber Connectivity

The LR4 transceiver is designed for Single-Mode Fiber (SMF). SMF is appropriate for longer-distance optical networking because it supports substantially greater transmission distances than typical multimode fiber configurations.

For a reliable 10km deployment, use suitable single-mode fiber infrastructure and verify the total optical loss against the module's specified link budget.

PAM4 Modulation

The 200G QSFP56 LR4 architecture uses PAM4 signaling to achieve high data rates while maintaining a compact optical module form factor. PAM4 uses four signal levels to carry more information per symbol than conventional two-level signaling.

The use of PAM4 is an important characteristic of modern 200G optical networking technology.

200G Ethernet Applications

The Cisco QSFP-200G-LR4 is designed for high-bandwidth Ethernet networking. Typical applications include:

• Data center interconnects
• Core networking
• High-speed aggregation
• Enterprise backbone connectivity
• Cloud infrastructure
• High-performance computing networks
• Distributed data center links
• Telecommunications infrastructure

Data Center Interconnect

The 10km reach of the QSFP-200G-LR4 makes it particularly suitable for data center interconnect applications where network equipment may be separated by significant physical distances.

It can provide high-bandwidth optical connectivity between compatible switches, routers or other network devices across a facility or interconnected infrastructure.

High-Density Networking

The QSFP56 form factor allows network equipment manufacturers to provide high port density while supporting 200Gbps per optical interface.

This makes the QSFP-200G-LR4 suitable for environments where rack space, switch port density and aggregate bandwidth are important considerations.

Optical Link Compatibility

Successful deployment requires compatible 200G optical ports, supported transceiver firmware and appropriate single-mode fiber infrastructure.

• Compatible 200G QSFP56 port
• Supported Cisco networking platform
• Single-mode fiber
• Duplex LC cabling
• Compatible optical wavelength
• Appropriate optical link budget

Always verify transceiver compatibility against the exact Cisco switch or router model before purchase.

Cisco QSFP-200G-LR4 vs 200G SR4

Cisco's current 200G QSFP56 portfolio includes short-reach SR4 and SL4 modules, while LR4 is intended for substantially longer single-mode optical links. :contentReference[oaicite:3]{index=3}

Enterprise Networking Applications

The Cisco QSFP-200G-LR4 is suitable for enterprise and service-provider environments requiring high-speed optical connectivity.

• Enterprise core networks
• Data center networks
• Cloud computing infrastructure
• Telecommunications networks
• Internet service provider infrastructure
• High-performance computing
• Storage networking
• Network aggregation

Deployment Considerations

Before deploying the QSFP-200G-LR4, confirm that the target Cisco platform supports the exact transceiver model and required 200G operating mode.

Optical compatibility should also be checked across the complete link, including the remote transceiver, fiber type, connectors, wavelength, distance and optical loss.

Benefits

• 200Gbps high-speed connectivity
• QSFP56 high-density form factor
• Up to 10km optical reach
• Single-mode fiber support
• Duplex LC connectivity
• LR4 long-reach architecture
• PAM4 signaling
• Suitable for data center interconnects
• Ideal for enterprise backbone networks
• Designed for high-bandwidth Ethernet infrastructure

Why Buy from Datacom Technologies (BD)?

Datacom Technologies (BD) supplies Cisco optical transceivers, switches, routers, data center networking equipment and enterprise network components in Bangladesh. Customers can receive competitive pricing, technical consultation, deployment assistance and nationwide delivery.

• Call/WhatsApp: +8801748173213
• Email: sales@datacom.com.bd
• Alternative Email: datacomtechnologiesbd@gmail.com
• Office: Tropical Center, 218, Dr. Kudroti Khuda Road, New Elephant Road, Dhaka-1205, Bangladesh

Frequently Asked Questions (FAQ)

Q1: What is the Cisco QSFP-200G-LR4?
The Cisco QSFP-200G-LR4 is a 200Gbps QSFP56 LR4 optical transceiver designed for long-distance Ethernet connectivity over single-mode fiber.

Q2: What is the data rate?
The module provides 200Gbps optical connectivity.

Q3: What is the form factor?
The QSFP-200G-LR4 uses the QSFP56 form factor.

Q4: What is the maximum transmission distance?
The LR4 configuration is designed for optical links up to 10km over suitable single-mode fiber.

Q5: What type of fiber does QSFP-200G-LR4 use?
It is designed for Single-Mode Fiber (SMF).

Q6: What connector does the QSFP-200G-LR4 use?
The LR4 configuration uses a duplex LC optical connector.

Q7: What wavelength does it use?
The LR4 optical configuration operates across approximately 1295–1309nm.

Q8: What modulation does the module use?
The 200G QSFP56 LR4 architecture uses PAM4 signaling.

Q9: Is QSFP-200G-LR4 suitable for data center interconnects?
Yes. Its 200Gbps bandwidth and up to 10km single-mode fiber reach make it suitable for long-distance data center and enterprise network interconnects.

Q10: Is QSFP-200G-LR4 compatible with 200G SR4?
They are different optical solutions. LR4 is intended for long-distance SMF links using duplex LC, while SR4 is a short-reach multimode solution generally using MPO connectivity. The exact port and transceiver compatibility must be verified for the network equipment.

Q11: Can QSFP-200G-LR4 be used with any Cisco switch?
No. Transceiver compatibility depends on the exact Cisco switch, router, line card, firmware and supported optic list. Verify the target platform before installation.

Q12: Is QSFP-200G-LR4 suitable for enterprise networks?
Yes. It is designed for high-bandwidth Ethernet applications including enterprise core, aggregation, data center and backbone networking.
