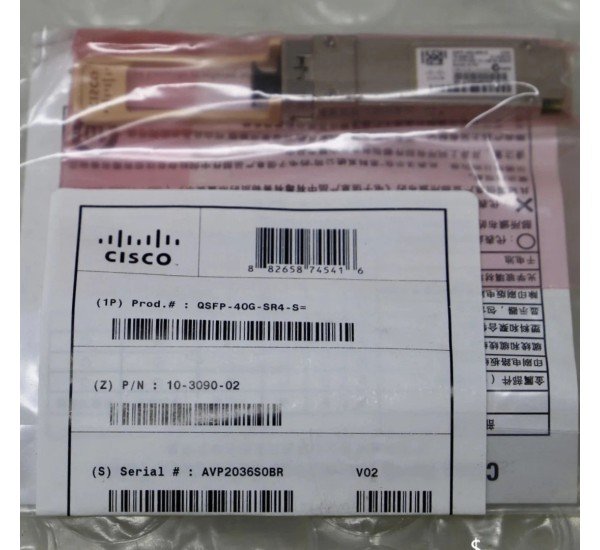

Cisco QSFP-40G-SR4-S= Transceiver Module – 40GBASE-SR4 S-Class 850nm MPO-12
The Cisco QSFP-40G-SR4-S= is a Cisco S-Class 40GBASE-SR4 QSFP transceiver module designed for high-speed 40 Gigabit Ethernet connectivity over parallel multimode fiber. It operates at 850nm and uses a 12-fiber MPO/MTP multifiber interface.
The S-Class module is optimized for enterprise and data center 40GbE deployments, supporting link lengths of up to 100 meters on laser-optimized OM3 and 150 meters on OM4/OM5 multimode fiber. Unlike the standard QSFP-40G-SR4, the S-Class QSFP-40G-SR4-S does not support 4x10G breakout connectivity.
Cisco QSFP-40G-SR4-S= Key Features
- 40GBASE-SR4 S-Class QSFP transceiver
- 850nm optical wavelength
- Four-lane parallel multimode fiber architecture
- 12-fiber MPO/MTP multifiber connector
- Up to 100m reach over laser-optimized OM3 MMF
- Up to 150m reach over OM4/OM5 MMF
- IEEE 40GBASE-SR4 optical specification alignment
- Enterprise-class S-Class design
- Does not support 4x10G breakout connectivity
- Does not support FCoE
Cisco QSFP-40G-SR4-S= Technical Specifications
| Specification |
Details |
| Brand |
Cisco |
| Model |
QSFP-40G-SR4-S= |
| Product Type |
40G QSFP Transceiver Module |
| Class |
S-Class |
| Ethernet Standard |
40GBASE-SR4 |
| Data Rate |
40Gbps |
| Optical Wavelength |
850nm |
| Fiber Type |
Multimode Fiber (MMF) |
| Optical Architecture |
4-lane parallel optics |
| Connector |
12-fiber MPO/MTP |
| OM3 Reach |
Up to 100m |
| OM4/OM5 Reach |
Up to 150m |
| 4x10G Breakout |
Not supported |
| FCoE |
Not supported |
| Form Factor |
QSFP+ |
Applications
- 40 Gigabit Ethernet data center networks
- Enterprise network infrastructure
- Data center switch-to-switch connections
- High-density core and aggregation networking
- Short-reach 40GbE optical links
- OM3 and OM4/OM5 multimode fiber deployments
Compatibility
The Cisco QSFP-40G-SR4-S= is designed for compatible Cisco 40GbE QSFP ports supporting 40GBASE-SR4. Cisco documents the module across compatible Cisco switching and networking platforms. Verify the specific host platform, software release, port support, and Cisco compatibility requirements before deployment.
Important: QSFP-40G-SR4-S= is an S-Class module and does not support 4x10G breakout connectivity. For 40G-to-4x10G applications, Cisco recommends compatible alternatives such as QSFP-40G-SR4 or QSFP-40G-CSR4.
Cisco QSFP-40G-SR4-S= Price in Bangladesh
Looking for the Cisco QSFP-40G-SR4-S= price in Bangladesh? Pricing can vary depending on product condition, sourcing, warranty, and availability. Contact Datacom Technologies (BD) for the latest price and procurement options.
Why Choose Cisco QSFP-40G-SR4-S=?
- 40Gbps high-speed Ethernet connectivity
- 850nm parallel multimode fiber optics
- Up to 150m reach over OM4/OM5 fiber
- MPO-12 interface for high-density fiber connectivity
- Cisco S-Class design for compatible enterprise networking platforms
- Ideal for dedicated 40GbE optical links where breakout is not required
Buy Cisco QSFP-40G-SR4-S= in Bangladesh
Datacom Technologies (BD) supplies Cisco networking and optical networking equipment in Bangladesh. For the Cisco QSFP-40G-SR4-S=, including price, availability, compatibility verification, and procurement support, contact our sales team.
Email: sales@datacom.com.bd
Note: Verify the exact Cisco part number, host platform, MPO polarity, fiber type, and application requirements before ordering. The S-Class QSFP-40G-SR4-S= does not support 4x10G breakout connectivity.
