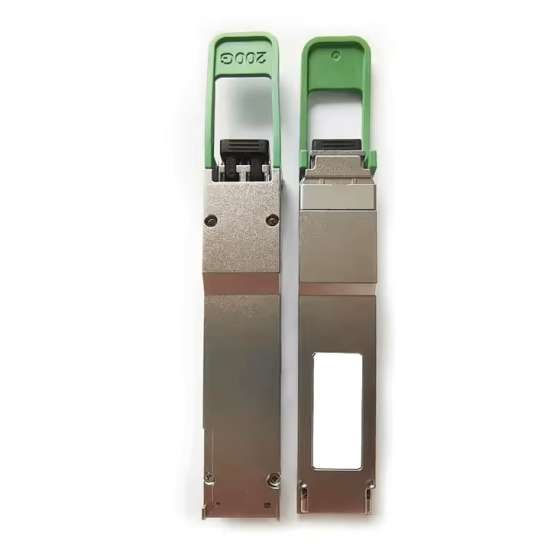

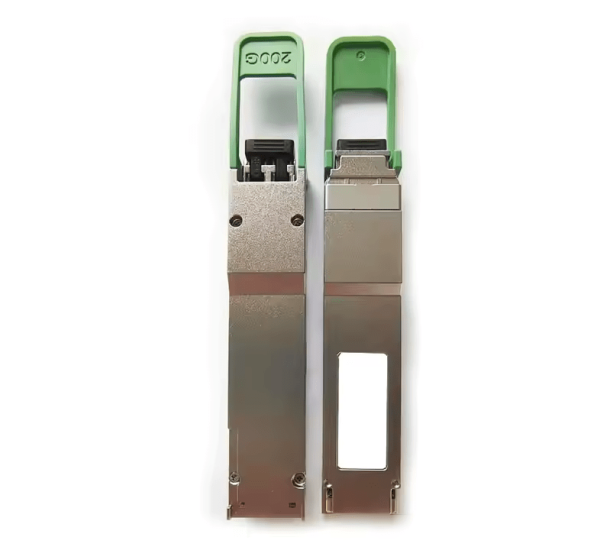

Cisco QSFP56-200G-SR4 Module

About Cisco QSFP-200G-SR4-S 200G QSFP56 100m MPO-12 Transceiver Module in Bangladesh

The Cisco QSFP-200G-SR4-S is a high-speed 200G QSFP56 optical transceiver designed for short-reach data center and enterprise network interconnects. It supports 200 Gigabit Ethernet over multimode fiber using four parallel optical lanes at a nominal wavelength of 850nm.

The module uses an MPO-12 UPC optical connector and supports link distances of up to 70 meters over OM3 and 100 meters over OM4 or OM5 multimode fiber. Cisco specifies the module as 200GBASE-SR4 compliant and suitable for 200GE connectivity. :contentReference[oaicite:2]{index=2}

Cisco QSFP-200G-SR4-S Specifications & Features

Overview

The Cisco QSFP-200G-SR4-S provides a high-bandwidth 200Gbps optical interface for modern data center switching and networking environments. It uses four parallel multimode-fiber channels and an 850nm optical wavelength to deliver short-range 200G Ethernet connectivity.

The transceiver is particularly suited to data center environments where high port density, short fiber runs and high-speed switch-to-switch or switch-to-server connectivity are required.

Buy Cisco QSFP-200G-SR4-S 200G Transceiver in Bangladesh

Purchase the Cisco QSFP-200G-SR4-S 200G QSFP56 SR4 transceiver from Datacom Technologies (BD). We supply Cisco optical transceivers, switches, routers, data center networking equipment and enterprise infrastructure products in Bangladesh with competitive pricing and technical consultation.

Key Features

• 200Gbps QSFP56 optical transceiver
• 200GBASE-SR4 compliance
• 850nm nominal wavelength
• MPO-12 UPC optical connector
• Multimode fiber operation
• Up to 70m over OM3 MMF
• Up to 100m over OM4 MMF
• Up to 100m over OM5 MMF
• 200GAUI-4 / CEI-56G-VSR-PAM4 electrical interface
• Supports 2×100GBASE-SR2 breakout
• Supports 4×50GBASE-SR breakout
• Maximum power consumption of 4.5W
• Class 1 laser safety
• Designed for high-density data center networking

200GBASE-SR4 Optical Connectivity

The QSFP-200G-SR4-S uses the 200GBASE-SR4 optical architecture. The 200Gbps Ethernet signal is carried over four parallel fiber pairs, with each optical lane operating at 50Gbps using PAM4 signaling.

The nominal optical wavelength is 850nm, making the module suitable for multimode fiber-based short-reach data center links. :contentReference[oaicite:3]{index=3}

850nm Multimode Fiber

The module operates at a nominal wavelength of 850nm over multimode fiber. Cisco specifies 50-micron MMF with modal bandwidth requirements of 2000 MHz·km for OM3 and 4700 MHz·km for OM4 and OM5. :contentReference[oaicite:4]{index=4}

OM4 and OM5 fiber are particularly suitable when taking advantage of the module's full 100-meter reach.

100-Meter Reach over OM4

Cisco specifies a maximum distance of 100 meters over OM4 MMF. The module can also reach 70 meters over OM3 and 100 meters over OM5. :contentReference[oaicite:5]{index=5}

MPO-12 UPC Connector

The Cisco QSFP-200G-SR4-S uses an MPO-12 UPC optical connector. Cisco specifically states that connections use patch cords with PC or Ultra-Physical Contact (UPC) connectors. :contentReference[oaicite:6]{index=6}

When deploying the module, ensure that the fiber polarity, MPO connector type and patch-cord configuration are compatible with the connected optical equipment.

200G QSFP56 Form Factor

The QSFP-200G-SR4-S uses the QSFP56 form factor. QSFP56 provides a compact, high-density pluggable architecture suitable for modern 200GbE switching platforms.

Cisco states that its QSFP modules are supported across Cisco switches, routers and NICs as well as selected third-party host platforms and NICs, subject to the applicable compatibility matrix. :contentReference[oaicite:7]{index=7}

2×100G and 4×50G Breakout

The QSFP-200G-SR4-S supports flexible breakout configurations. Cisco specifies that the module can be used as a 2×100GBASE-SR2 breakout or as 4×50GBASE-SR connections. :contentReference[oaicite:8]{index=8}

This allows a single 200G QSFP56 port to provide connectivity to multiple lower-speed interfaces when supported by the host platform and network configuration.

200GAUI-4 Electrical Interface

The module uses a 200GAUI-4 / CEI-56G-VSR-PAM4 electrical interface. Cisco identifies the module as compliant with the relevant 200GAUI-4 and CEI-56G-VSR-PAM4 standards. :contentReference[oaicite:9]{index=9}

The PAM4-based architecture enables high data rates while maintaining a compact QSFP56 form factor suitable for high-density networking.

Data Center Applications

The Cisco QSFP-200G-SR4-S is designed primarily for short-range high-bandwidth networking applications.

• Data center switch-to-switch connections
• Switch-to-server connectivity
• High-performance computing networks
• Enterprise data center interconnects
• 200GbE spine-and-leaf networks
• Network aggregation
• High-density server connectivity
• 2×100G breakout deployments
• 4×50G breakout deployments

Power Consumption

Cisco specifies maximum power consumption of approximately 4.5W for the QSFP-200G-SR4-S. :contentReference[oaicite:10]{index=10}

Actual power consumption can vary according to operating conditions, host platform and optical link characteristics.

FEC and Host Platform

Cisco specifies that FEC is performed on the host platform for the QSFP-200G-SR4-S. :contentReference[oaicite:11]{index=11}

Therefore, the switch, router, NIC or other host platform should be checked for appropriate FEC configuration and compatibility before deployment.

Standards Compliance

The Cisco QSFP-200G-SR4-S is designed according to relevant industry standards and Cisco's QSFP56 implementation requirements.

• 200GBASE-SR4
• IEEE 802.3
• IEEE 802.3bm
• QSFP56 MSA
• 200GAUI-4
• OIF CEI-56G-VSR-PAM4
• CMIS Rev. 4.0

Cisco's official documentation lists IEEE 802.3, QSFP56 MSA, OIF CEI-56G-VSR-PAM4 and CMIS 4.0 among the applicable standards and specifications. :contentReference[oaicite:12]{index=12}

Class 1 Laser Safety

The QSFP-200G-SR4-S uses a Class 1 laser configuration. Cisco lists compliance with applicable laser safety requirements including 21 CFR 1040 and IEC 60825-1. :contentReference[oaicite:13]{index=13}

Cisco QSFP-200G-SR4-S vs 200G FR4

Compatibility Considerations

The QSFP-200G-SR4-S should be installed only in platforms that support the Cisco module and its 200G QSFP56 interface.

• Verify switch or router QSFP56 compatibility
• Verify Cisco transceiver compatibility
• Use compatible MPO-12 UPC fiber cabling
• Confirm OM3, OM4 or OM5 fiber type
• Verify required link distance
• Confirm host-side FEC support
• Check breakout configuration support when using 2×100G or 4×50G

Cisco recommends consulting its Transceiver Modules Compatibility Matrix for detailed platform support. :contentReference[oaicite:14]{index=14}

Benefits

• 200Gbps high-speed Ethernet connectivity
• Compact QSFP56 form factor
• 850nm multimode optical transmission
• Up to 100m reach over OM4 and OM5
• MPO-12 UPC connector
• Supports 2×100G breakout
• Supports 4×50G breakout
• Suitable for high-density data centers
• Class 1 laser safety
• Maximum 4.5W power consumption

Why Buy Cisco QSFP-200G-SR4-S from Datacom Technologies (BD)?

Datacom Technologies (BD) supplies Cisco optical transceivers, QSFP modules, switches, routers and data center networking equipment in Bangladesh. Customers can receive competitive pricing, technical consultation, deployment assistance and nationwide delivery.

• Call/WhatsApp: +8801748173213
• Email: sales@datacom.com.bd
• Alternative Email: datacomtechnologiesbd@gmail.com
• Office: Tropical Center, 218, Dr. Kudroti Khuda Road, New Elephant Road, Dhaka-1205, Bangladesh

Frequently Asked Questions (FAQ)

Q1: What is the Cisco QSFP-200G-SR4-S?
It is a Cisco 200Gbps QSFP56 optical transceiver designed for 200GBASE-SR4 multimode-fiber networking.

Q2: What is the data rate?
The module supports 200Gbps / 200GE connectivity.

Q3: What wavelength does it use?
It operates at a nominal wavelength of 850nm.

Q4: What connector does the module use?
It uses an MPO-12 UPC multimode-fiber connector.

Q5: What is the maximum transmission distance?
Cisco specifies 70m over OM3 and up to 100m over OM4 or OM5 MMF. :contentReference[oaicite:15]{index=15}

Q6: Can the module work with OM3 fiber?
Yes. The maximum specified OM3 reach is 70 meters.

Q7: Can the module work with OM4 fiber?
Yes. OM4 provides a maximum specified reach of 100 meters.

Q8: Does the QSFP-200G-SR4-S support breakout?
Yes. Cisco specifies support for 2×100GBASE-SR2 or 4×50GBASE-SR breakout configurations. :contentReference[oaicite:16]{index=16}

Q9: What electrical interface does it use?
The module uses 200GAUI-4 / CEI-56G-VSR-PAM4.

Q10: What is the maximum power consumption?
Cisco specifies maximum power consumption of 4.5W.

Q11: Is it suitable for data centers?
Yes. The QSFP-200G-SR4-S is specifically designed for short-reach, high-bandwidth data center networking.

Q12: Is QSFP-200G-SR4-S a single-mode module?
No. It is a multimode-fiber module using an 850nm wavelength and MPO-12 connector.

Q13: Can it be used for a 2×100G connection?
Yes, Cisco specifies 2×100GBASE-SR2 breakout capability.

Q14: Can it be used for 4×50G?
Yes. Cisco specifies support for four 50GBASE-SR breakout links.
