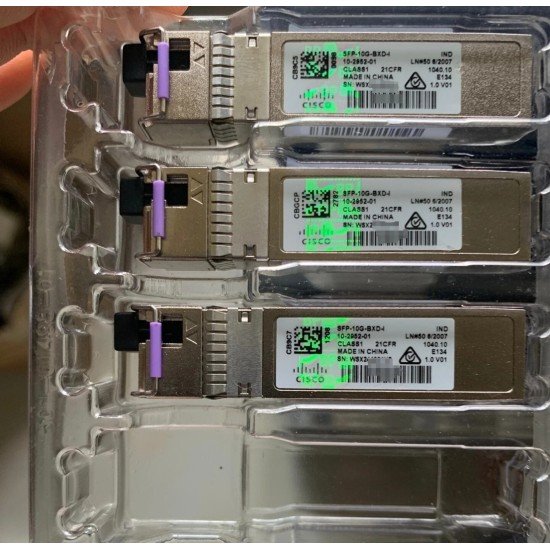

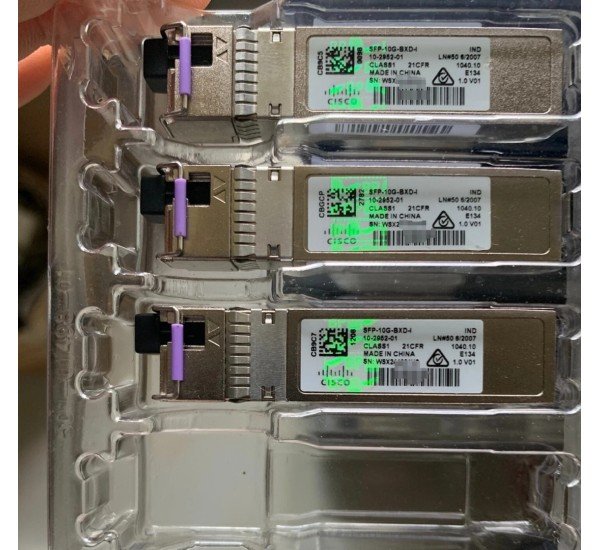

Cisco SFP-10G-BXD-I SFP+ Module
Overview — Cisco 10G SFP+ BXD-I Transceiver
The Cisco SFP-10G-BXD-I SFP+ Module is a high-performance 10 Gigabit SFP+ optical transceiver designed for long-distance fiber connectivity in enterprise networks. This 10GBASE-BX BiDi (bidirectional) transceiver enables high-speed data transmission over single-mode fiber (SMF) using a single strand of fiber, helping reduce cabling complexity and cost. It is ideal for backbone links, data center interconnects, and high-capacity network uplinks in Bangladesh.
Key Features of Cisco SFP-10G-BXD-I
- 10GBASE-BX BiDi Technology: Supports 10 Gbps bidirectional communication over one strand of single-mode fiber.
- Wavelength-Division Multiplexing: Transmits at 1330 nm and receives at 1270 nm, enabling efficient single-fiber operation.
- 10 Gbps High-Speed Connectivity: Designed for high-capacity uplinks and backbone links.
- LC Connector: Standard LC duplex interface for fiber connectivity.
- Hot-Swappable: Easy to install and replace without powering down network equipment.
- Long-Distance Reach: Typical modules support up to ~10 km over single-mode fiber (depending on specific version and link budget).
Cisco SFP-10G-BXD-I SFP+ Module Specifications
| Specification | Details |
|---|
| Model | Cisco SFP-10G-BXD-I |
| Module Type | SFP+ optical transceiver |
| Data Rate | 10 Gbps |
| Form Factor | SFP+ (hot-pluggable) |
| Fiber Type | Single-mode fiber (SMF) |
| Connector Type | LC duplex (via WDM on single fiber) |
| Wavelength (TX/RX) | 1330 nm (TX) / 1270 nm (RX) |
| Max Link Distance | Up to ~10 km (with paired SFP-10G-BXU-I) |
| Digital Optical Monitoring (DOM) | Supported |
| Compliance Standards | IEEE 802.3ae (10GBASE-BX10-D), SFF-8472 |
| Power Consumption | ~1 W |
| Operating Temp. | Typically industrial range (varies by vendor) |
| Compatibility | Cisco SFP+ ports on switches/routers supporting 10GBASE-BX |
| Use Case | Long-reach bidirectional 10 GbE links over single fiber |
What Is 10G BiDi (Bidirectional) SFP+?
BiDi (Bidirectional) SFP+ modules like the Cisco SFP-10G-BXD-I transmit and receive signals over a single fiber strand by using different wavelengths in each direction. This allows networks to reduce the number of fiber cables needed, lowering installation costs and simplifying infrastructure.
Ideal Applications
- Data Center Uplinks & Aggregation
- Metro & Campus Network Backbones
- High-Capacity Fiber Links
- Enterprise Core & Distribution Layers
- 10 GbE Optical Connectivity
This module is especially useful where fiber availability is limited or where simplifying cabling infrastructure is a priority.
Compatibility & Usage Tips
- The SFP-10G-BXD-I is designed for use in SFP+ ports on switches, routers, and optical platforms that support 10GBASE-BX BiDi optics.
- Ensure the network device supports BiDi optics and that a complementary module (with reversed wavelengths, e.g., 1270 nm Tx / 1330 nm Rx) is used at the other end of the fiber link.
Why Choose Cisco SFP+ Modules in Bangladesh?
- Reliable 10 Gbps Connectivity: Built for high-performance network environments.
- Reduced Cabling Costs: BiDi optics help minimize fiber usage.
- Hot-Swappable & Easy Installation: No downtime for upgrades or replacements.
- Enterprise-Grade Quality: Trusted for mission-critical network infrastructure.
Buy Cisco SFP-10G-BXD-I SFP+ Module in Bangladesh
Get the genuine Cisco SFP-10G-BXD-I SFP+ Transceiver at competitive prices from Datacom Technologies BD — your trusted supplier of Cisco networking optics and modules in Bangladesh.
