Cisco GLC-SX-MMD Transceiver Modules

About Cisco GLC-SX-MMD Transceiver Modules

Product Specification

Specification	Description
Type	Small Form-Factor Pluggable (SFP)
Data Rate	Up to 1.25 Gbps
Wavelength	850 nanometers (nm)
Fiber Type	Multi-mode (MMF)
Cable Distance	Up to 550 meters (OM2)
Connector	LC Duplex
Application	Short-range Gigabit Ethernet connections

Description:

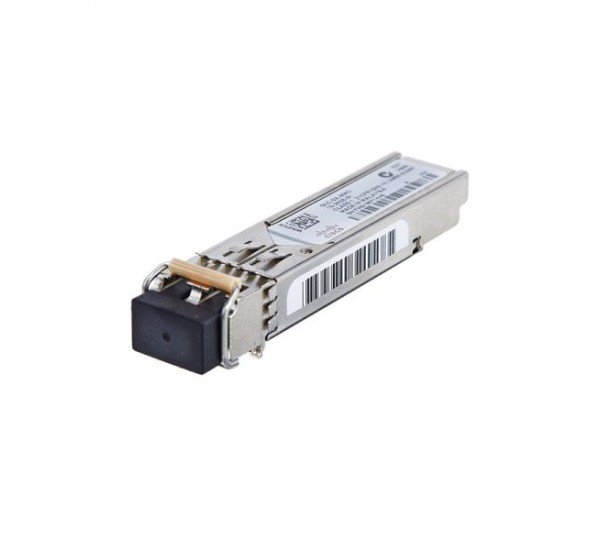

Cisco GLC-SX-MMD transceiver modules are SFP (Small Form-factor Pluggable) devices designed for use with Cisco networking equipment in Gigabit Ethernet applications. They are suited for short-range optical connections within data centers or local area networks (LANs). These hot-swappable modules support data rates of up to 1.25 Gbps and operate at a wavelength of 850 nm over multi-mode fiber optic cables. GLC-SX-MMD SFPs can be used with either 50/125µm or 62.5/125µm core diameter MMF cables and offer a maximum reach of up to 550 meters over OM2 multi-mode fiber. Featuring a standard LC duplex connector, these modules provide a reliable and cost-effective solution for short-distance Gigabit Ethernet deployments.
