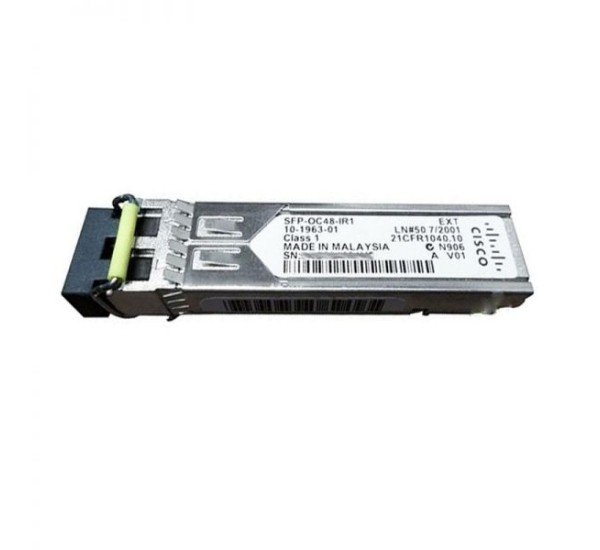

Cisco SFP-OC48-IR1 Transceiver Module – OC-48/STM-16 Intermediate-Reach SFP
The Cisco SFP-OC48-IR1 is an optical Small Form-Factor Pluggable (SFP) transceiver designed for OC-48/STM-16 SONET/SDH networking applications. It provides high-speed optical connectivity at approximately 2.488Gbps over single-mode fiber.
Operating at a nominal 1310nm wavelength, the SFP-OC48-IR1 is designed for intermediate-distance optical links of up to approximately 15 kilometers. It is suitable for compatible Cisco SONET/SDH, Packet-over-SONET (POS), and telecom networking platforms requiring OC-48/STM-16 connectivity.
Cisco SFP-OC48-IR1 Technical Specifications
| Specification |
Details |
| Manufacturer |
Cisco |
| Part Number |
SFP-OC48-IR1 |
| Form Factor |
SFP |
| Optical Standard |
OC-48 / STM-16 |
| Line Rate |
2.488Gbps |
| Wavelength |
1310nm |
| Fiber Type |
Single-Mode Fiber (SMF) |
| Connector |
Duplex LC |
| Maximum Distance |
Up to approximately 15km |
| Reach Classification |
Intermediate Reach (IR-1) |
| Applications |
SONET / SDH / POS |
Optical Performance
The Cisco SFP-OC48-IR1 uses 1310nm optical transmission over single-mode fiber for OC-48/STM-16 networking. Its intermediate-reach architecture provides considerably greater distance than short-reach OC-48 optics while remaining suitable for metropolitan and campus-scale optical links.
15km Single-Mode Fiber Connectivity
The SFP-OC48-IR1 is intended for optical spans of up to approximately 15km, subject to fiber characteristics and the complete optical link budget. Actual deployment distance depends on attenuation, connectors, patch panels, dispersion, and other link conditions.
Applications
- OC-48 SONET network connections
- STM-16 SDH optical links
- Packet-over-SONET/SDH (POS) applications
- Telecommunications backbone connections
- Metropolitan optical networks
- Enterprise and service-provider network interconnections
- Longer-distance Cisco optical transport links
- Legacy SONET/SDH network maintenance and expansion
Compatibility
The Cisco SFP-OC48-IR1 is designed for Cisco networking platforms that specifically support OC-48/STM-16 IR-1 SFP optics. Verify the exact host platform, software support, and supported transceiver list before installation.
The module uses a duplex LC optical interface and single-mode fiber. The remote end should use a compatible OC-48/STM-16 optical interface with matching wavelength and optical characteristics.
Cisco SFP-OC48-IR1 Price in Bangladesh
Looking for Cisco SFP-OC48-IR1 price in Bangladesh? Datacom Technologies (BD) can provide Cisco optical transceiver solutions according to your required quantity, product condition, warranty requirements, compatibility, and project specifications.
Price and availability may vary depending on stock condition, quantity, sourcing requirements, and warranty options. Contact Datacom Technologies (BD) for the latest quotation and suitable Cisco OC-48/STM-16 optical transceiver options.
Why Choose Cisco SFP-OC48-IR1?
- Designed for OC-48/STM-16 optical networking
- 2.488Gbps SONET/SDH line rate
- 1310nm single-mode fiber transmission
- Intermediate reach of approximately 15km
- Duplex LC optical interface
- Suitable for compatible Cisco SONET/SDH and POS platforms
- Useful for telecom, metro, and legacy optical network deployments
