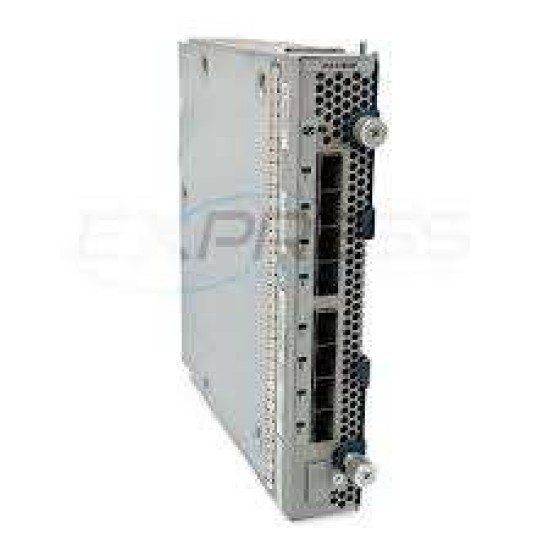

Cisco UCS-IOM-2208XP UCS 2208XP I/O Module – 8-Port 10Gb SFP+ / 32-Port Internal Fabric Extender
The Cisco UCS-IOM-2208XP is a Cisco UCS 2208XP I/O Module, also known as a Fabric Extender, designed for the Cisco UCS 5108 Blade Server Chassis. It extends the UCS fabric between the blade chassis and compatible Cisco UCS Fabric Interconnects while providing Ethernet and Fibre Channel over Ethernet (FCoE) connectivity.
The UCS 2208XP provides eight external 10 Gigabit Ethernet SFP+ ports for connections to the Fabric Interconnect and 32 internal 10 Gigabit Ethernet ports connected through the UCS 5108 chassis midplane. A single module provides up to 80Gbps of chassis I/O, while two modules configured for redundancy can provide up to 160Gbps of I/O to the chassis.
Cisco UCS 2208XP I/O Module Features
- Designed for Cisco UCS 5108 Blade Server Chassis
- 8 external 10Gb Ethernet SFP+ ports
- 32 internal 10Gb Ethernet ports through the chassis midplane
- External ports are Fibre Channel over Ethernet (FCoE) capable
- Up to 80Gbps total chassis I/O per I/O module
- Two I/O modules can provide up to 160Gbps of chassis I/O
- Operates as a Fabric Extender to compatible Cisco UCS Fabric Interconnects
- Supports unified Ethernet and FCoE connectivity within the UCS architecture
Cisco UCS-IOM-2208XP Technical Specifications
| Specification |
Details |
| Brand |
Cisco |
| Product Number |
UCS-IOM-2208XP |
| Product Family |
Cisco UCS 2200 Series |
| Product Type |
Fabric Extender / I/O Module |
| Model |
UCS 2208XP |
| External Ports |
8 x 10Gb Ethernet SFP+ |
| Internal Ports |
32 x 10Gb Ethernet |
| External Port Technology |
10 Gigabit Ethernet / FCoE-capable |
| External Interface |
SFP+ |
| Internal Connection |
UCS 5108 chassis midplane |
| Total I/O per Module |
Up to 80Gbps |
| Maximum with Two Modules |
Up to 160Gbps chassis I/O |
| Chassis Compatibility |
Cisco UCS 5108 Blade Server Chassis |
| Architecture |
Cisco UCS Fabric Extender |
Cisco UCS 2208XP Connectivity
The UCS-IOM-2208XP provides the network-facing interfaces between the UCS 5108 Blade Server Chassis and the Fabric Interconnect. The eight external SFP+ interfaces connect to compatible Cisco UCS Fabric Interconnect ports, while the 32 internal 10Gb interfaces connect through the chassis midplane to the blade servers.
Cisco UCS 2208XP I/O Modules are typically deployed as a pair in the UCS 5108 chassis to provide redundancy and increased chassis bandwidth. With two 2208XP modules, the chassis can provide up to 160Gbps of aggregate I/O capacity.
Compatible Cisco UCS Environment
- Cisco UCS 5108 Blade Server Chassis
- Compatible Cisco UCS Fabric Interconnects
- Cisco UCS Manager managed environments
- Cisco UCS B-Series blade server infrastructure
- 10Gb Ethernet and FCoE converged networking
Compatibility should be confirmed against the exact UCS 5108 chassis configuration, Fabric Interconnect model, UCS Manager release and supported hardware combination before installation.
Applications
- Cisco UCS blade server networking
- 10Gb Ethernet chassis connectivity
- Fibre Channel over Ethernet (FCoE)
- Data center converged networking
- UCS 5108 chassis fabric expansion
- Redundant UCS I/O module deployments
- Enterprise server and virtualization infrastructure
Cisco UCS-IOM-2208XP Price in Bangladesh
For the latest Cisco UCS-IOM-2208XP price in Bangladesh, contact Datacom Technologies (BD). Pricing and availability may vary depending on product condition, sourcing, warranty and stock status.
Why Choose Cisco UCS 2208XP?
- Purpose-built Fabric Extender for Cisco UCS 5108
- 8 external 10Gb SFP+ network-facing ports
- 32 internal 10Gb chassis-facing ports
- FCoE-capable external connectivity
- Up to 80Gbps I/O per module
- Supports redundant dual-IOM UCS chassis configurations
Buy Cisco UCS-IOM-2208XP in Bangladesh
To purchase the Cisco UCS-IOM-2208XP UCS 2208XP I/O Module in Bangladesh, contact Datacom Technologies (BD) for current pricing, compatibility confirmation and sourcing information.
