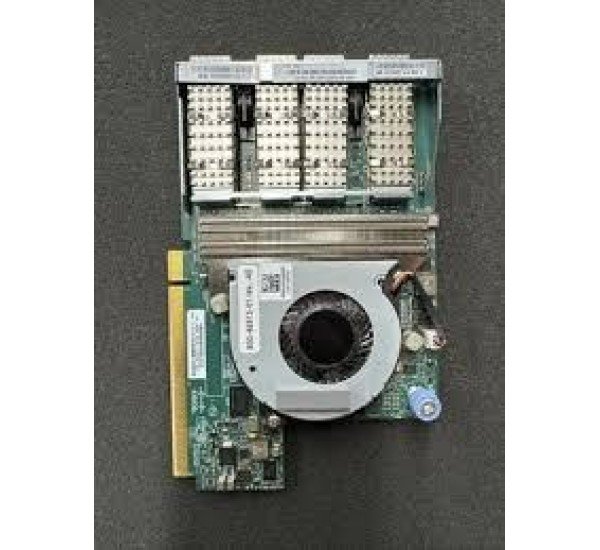

Cisco UCS VIC 1457 Quad Port 10/25Gb SFP28 mLOM Network Adapter – UCSC-MLOM-C25Q-04 V05
The Cisco UCSC-MLOM-C25Q-04 V05 is a Cisco UCS VIC 1457 Quad Port 10/25G SFP28 Modular LAN on Motherboard (mLOM) adapter designed for compatible Cisco UCS C-Series rack servers. It provides four SFP28 network ports supporting 10Gb and 25Gb Ethernet connectivity for enterprise data center and server networking environments.
The VIC 1457 uses the Cisco UCS mLOM architecture, allowing supported UCS servers to add high-speed network connectivity without occupying a standard PCIe expansion slot. Cisco identifies UCSC-MLOM-C25Q-04 as the VIC 1457 quad-port 10/25G SFP28 mLOM.
Cisco UCSC-MLOM-C25Q-04 V05 Key Features
- Cisco UCS VIC 1457 network adapter
- Quad-port 10/25Gb Ethernet connectivity
- Four SFP28 network interfaces
- Modular LAN on Motherboard (mLOM) form factor
- x16 electrical interface
- Designed for supported Cisco UCS C-Series M5 rack servers
- Supports high-speed data center networking applications
- Suitable for Cisco UCS integrated infrastructure environments
Cisco UCS VIC 1457 Technical Specifications
| Specification |
Details |
| Brand |
Cisco |
| Part Number |
UCSC-MLOM-C25Q-04 |
| Version |
V05 |
| Product |
Cisco UCS VIC 1457 |
| Adapter Type |
Modular LAN on Motherboard (mLOM) |
| Port Count |
4 Ports |
| Network Speed |
10GbE / 25GbE |
| Port Type |
SFP28 |
| Interface |
x16 electrical mLOM interface |
| Network Technology |
Ethernet |
| Adapter Family |
Cisco UCS Virtual Interface Card 1400 Series |
| Server Platform |
Cisco UCS C-Series M5 |
Cisco UCSC-MLOM-C25Q-04 Compatibility
Cisco identifies the UCSC-MLOM-C25Q-04 as a VIC 1457 quad-port 10/25G SFP28 mLOM for supported Cisco UCS C220 M5, C240 M5 and C240 SD M5 rack servers.
The adapter is installed in the server's dedicated mLOM position rather than a standard PCIe expansion slot. Cisco documentation specifies an x16 electrical interface for the mLOM implementation.
Server model, Cisco IMC firmware, VIC firmware, UCS Manager configuration and supported SFP28 transceiver or cable combinations should be checked before installation.
Cisco VIC 1457 Network Applications
- 10GbE and 25GbE server networking
- Cisco UCS data center infrastructure
- High-bandwidth server-to-switch connectivity
- Virtualized server environments
- Enterprise data center networks
- Cloud and private cloud infrastructure
- High-performance application and storage networks
- Cisco UCS C-Series M5 network expansion
Cisco UCSC-MLOM-C25Q-04 SFP28 Connectivity
The four SFP28 ports can be used with compatible Cisco 10GbE and 25GbE optical transceivers, direct-attach cables and supported cabling solut
