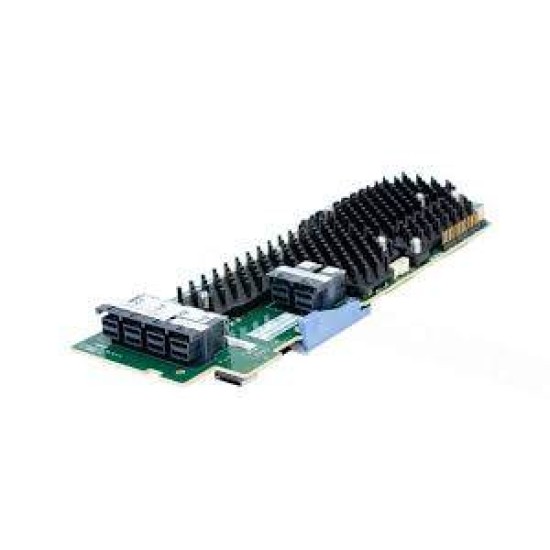

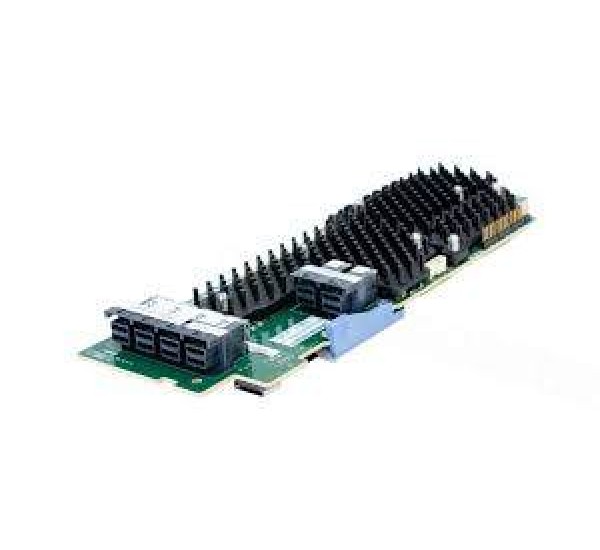

Cisco UCSC-RAID-M6HD 12G SAS RAID Controller – 4GB FBWC, High Drive Count

The Cisco UCSC-RAID-M6HD is a 12Gb SAS hardware RAID controller designed for high-drive-count Cisco UCS C-Series M6 server configurations. It provides hardware-based RAID management with 4GB Flash-Backed Write Cache (FBWC) for supported internal SAS and SAS/SATA storage environments.

The UCSC-RAID-M6HD is designed for Cisco UCS M6 servers requiring high internal storage capacity. In supported configurations, the controller can manage up to 32 internal SAS HDDs and SAS/SATA SSDs and supports multiple RAID levels as well as JBOD mode.

Cisco UCSC-RAID-M6HD 12G SAS RAID Controller Features

• 12Gb SAS hardware RAID controller
• 4GB Flash-Backed Write Cache (FBWC)
• High-drive-count storage controller
• Supports up to 32 internal SAS HDDs and SAS/SATA SSDs in supported configurations
• Supports RAID 0, 1, 5, 6, 10, 50 and 60
• Supports JBOD mode
• Supports mixed RAID and JBOD mode in supported configurations
• Designed for Cisco UCS C-Series M6 servers
• Suitable for high-capacity internal storage deployments

Cisco UCSC-RAID-M6HD Technical Specifications

Cisco UCSC-RAID-M6HD High Drive Count Configuration

Cisco documents the UCSC-RAID-M6HD for high-drive-count configurations including the UCS C240 M6 LFF server. In the supported 32-drive configuration, the controller can manage up to 32 internal SAS HDDs and SAS/SATA SSDs.

Actual drive support depends on the exact Cisco UCS server model, chassis configuration, backplane, drive type and cabling. The UCSC-RAID-M6HD should therefore be matched to the applicable Cisco storage configuration before installation.

RAID and Storage Capabilities

The UCSC-RAID-M6HD provides hardware RAID functionality for supported internal SAS storage. Cisco documents support for RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50 and RAID 60. JBOD mode is also supported, including mixed RAID and JBOD operation in applicable configurations.

Applications

• High-capacity Cisco UCS server storage
• Enterprise SAS HDD storage arrays
• SAS/SATA SSD storage configurations
• Database and virtualization servers
• High-drive-count Cisco C-Series M6 deployments
• RAID-protected enterprise storage
• Server storage expansion and controller replacement

Cisco UCSC-RAID-M6HD Compatibility

The UCSC-RAID-M6HD is a Cisco UCS M6 storage controller and is documented for supported Cisco UCS C-Series M6 server configurations. Cisco documentation specifically identifies the controller with high-drive-count configurations such as the UCS C240 M6 LFF.

Compatibility should be confirmed using the exact Cisco UCS server model, chassis/backplane configuration, drive count, storage cabling and firmware version before installation.

NVMe drives that are not connected through the supported SAS storage path are not automatically managed by this RAID controller. Cisco documentation explicitly notes that certain front NVMe drives are not managed by the RAID controller in supported M6 configurations.

Cisco UCSC-RAID-M6HD Price in Bangladesh

For the latest Cisco UCSC-RAID-M6HD 12G SAS RAID Controller price in Bangladesh, contact Datacom Technologies (BD). Pricing and availability may vary depending on sourcing, product condition, warranty and configuration.

Why Choose Cisco UCSC-RAID-M6HD?

• 12Gb SAS hardware RAID controller for Cisco UCS M6 servers
• 4GB Flash-Backed Write Cache for supported storage workloads
• High-drive-count design for large internal SAS/SATA storage configurations
• Supports RAID 0, 1, 5, 6, 10, 50 and 60
• Supports JBOD operation in applicable configurations
• Designed for enterprise Cisco UCS storage environments

Buy Cisco UCSC-RAID-M6HD in Bangladesh

To purchase the Cisco UCSC-RAID-M6HD 12G SAS RAID Controller in Bangladesh, contact Datacom Technologies (BD) for current pricing, compatibility confirmation and sourcing information.
