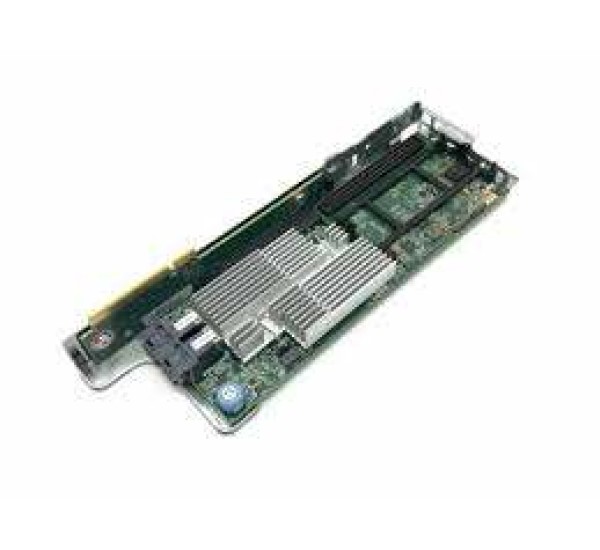

Cisco UCSC-RAID-M6T 12G SAS RAID Controller – 4GB FBWC, 16-Drive
The Cisco UCSC-RAID-M6T is a 12Gb SAS hardware RAID controller designed for compatible Cisco UCS C-Series M6 rack servers. It provides hardware-based RAID functionality with 4GB Flash-Backed Write Cache (FBWC) for supported internal SAS/SATA storage configurations.
Cisco identifies the UCSC-RAID-M6T as a 12G SAS RAID Controller with 4GB FBWC and a 16-drive designation. In the Cisco UCS C220 M6S, the controller is associated with up to 10 2.5-inch SFF front-loading drives, while supported C240 M6S configurations can use the controller with up to 14 drives depending on the chassis configuration.
Cisco UCSC-RAID-M6T 12G SAS RAID Controller Features
- 12Gb SAS hardware RAID controller
- 4GB Flash-Backed Write Cache (FBWC)
- Designed for internal Cisco UCS C-Series storage
- Supports compatible SAS and SATA storage devices
- PCIe-style controller architecture
- Hardware RAID processing for supported server storage configurations
- Available for compatible Cisco UCS C-Series M6 servers
- Related Cisco PID UCSC-RAID-220M6 refers to the same component in UCS C220 M6S documentation
Cisco UCSC-RAID-M6T Technical Specifications
| Specification |
Details |
| Brand |
Cisco |
| Product ID |
UCSC-RAID-M6T |
| Product Type |
SAS Hardware RAID Controller |
| SAS Interface |
12Gb SAS |
| Cache |
4GB Flash-Backed Write Cache (FBWC) |
| Controller Architecture |
PCIe-style internal storage controller |
| Drive Support |
Up to 16 drives according to Cisco PID designation; actual supported drive count depends on server configuration |
| C220 M6S Configuration |
Up to 10 2.5-inch SFF front-loading drives |
| C240 M6S Configuration |
Up to 14 drives in supported SFF configurations |
| Storage Type |
Compatible SAS/SATA drives |
| NVMe Support |
NVMe PCIe SSDs are not controlled by this SAS/SATA RAID controller |
| Controller Function |
Hardware RAID |
Supported RAID Functionality
Cisco documents the related UCSC-RAID-220M6 configuration as supporting RAID 0, 1, 5, 6, 10, 50 and 60, along with SRAID0 and JBOD mode. Cisco documentation should be checked against the exact server and firmware configuration before deployment.
Cisco UCSC-RAID-M6T Compatibility
The UCSC-RAID-M6T is documented for Cisco UCS C-Series M6 servers. Cisco lists it for the UCS C220 M6S and UCS C240 M6S, with the supported drive count and backplane configuration varying by server model.
In Cisco UCS C220 M6S documentation, UCSC-RAID-M6T and UCSC-RAID-220M6 refer to the same RAID controller component for replacement and maintenance purposes.
Controller firmware must also be compatible with the Cisco Integrated Management Controller (IMC) and BIOS versions installed on the server. Cisco recommends verifying storage-controller firmware compatibility before deployment.
Applications
- Cisco UCS C220 M6S server storage
- Cisco UCS C240 M6S server storage
- Internal SAS/SATA RAID configurations
- Enterprise server storage protection
- RAID-based virtualization storage
- Database and application server storage
- Server replacement and RAID controller upgrades
Cisco UCSC-RAID-M6T 12G SAS RAID Controller Price in Bangladesh
For the latest Cisco UCSC-RAID-M6T price in Bangladesh, contact Datacom Technologies (BD). Pricing and availability may vary depending on sourcing, product condition, warranty and stock status.
Why Choose Cisco UCSC-RAID-M6T?
- Genuine Cisco UCS C-Series storage controller PID
- 12Gb SAS hardware RAID connectivity
- 4GB Flash-Backed Write Cache for supported write-cache protection
- Designed specifically for compatible Cisco UCS M6 rack-server storage configurations
- Supports enterprise SAS/SATA RAID deployments
Buy Cisco UCSC-RAID-M6T in Bangladesh
To purchase the Cisco UCSC-RAID-M6T 12G SAS RAID Controller with 4GB FBWC in Bangladesh, contact Datacom Technologies (BD) for current pricing, compatibility confirmation and sourcing information.
