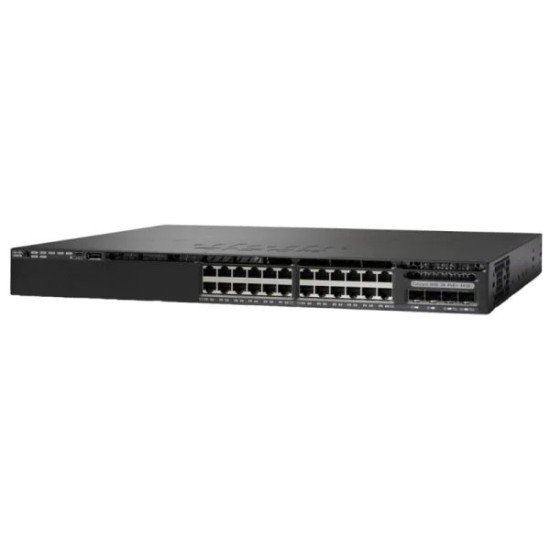

Cisco WS-C3650-24PS-E Catalyst 3650 Series Switch
The Cisco WS-C3650-24PS-E Catalyst 3650 Series Switch is an enterprise-grade, 24-port Gigabit PoE+ managed switch from Cisco Systems, designed for business and campus networks that need reliable connectivity, power over Ethernet, and advanced management features. It provides 24 x 10/100/1000 PoE+ ports plus 4 fixed 1G SFP uplinks, making it ideal for powering devices such as IP phones, wireless access points, and security cameras while also handling data traffic efficiently.
Key Features
- 24 x Gigabit Ethernet PoE+ ports for data + power delivery (IEEE 802.3at)
- 4 x 1G SFP uplink ports for fiber connectivity
- Cisco IOS XE software with advanced management and security features
- Layer 3 routing support with IP Base feature set
- Stackable with Cisco StackWise-160 technology for scalable networks
- Enterprise-grade QoS and security for optimized traffic handling
- 1U rack-mountable design
Cisco WS-C3650-24PS-E Specifications
| Specification | Details |
|---|
| Product Model | WS-C3650-24PS-E |
| Series | Cisco Catalyst 3650 Series Switches |
| Switch Type | Enterprise Access Switch (Managed) |
| Software Image | IP Services / Full Layer 3 capable (E-series) |
| Ports | 24 × 10/100/1000 Ethernet with PoE+ |
| Uplink Ports | Typically 4 × 1G SFP or combination uplinks (model family) |
| PoE Standard | IEEE 802.3af/802.3at PoE+ (Power over Ethernet Plus) |
| Total PoE Power Budget | ~390W (typical for 24-port PoE+ model) |
| Switching Capacity | ~92 Gbps (non-multigigabit 24-port model) |
| Forwarding Rate | ~68.5 Mpps (estimate for 24-port non-multigigabit models) |
| Stacking Technology | Cisco StackWise-160 (up to 9 switches) |
| Stack Bandwidth | 160 Gbps |
| MAC Address Table | Up to 32,000 entries |
| IPv4 Routes | Up to 24,000 routes |
| Flexible NetFlow Entries | Up to 48,000 flows |
| DRAM (RAM) | 4 GB (typical for 3650 Series) |
| Flash Memory | 2 GB (typical) |
| VLAN Support | Up to 4,094 VLAN IDs |
| Wireless Controller Support | Integrated wired + wireless controller capabilities |
| Power Supply | Field-replaceable AC PSU (model dependent) |
| Redundant Power Support | Yes (external RPS support) |
| Form Factor | 1U Rack Mount |
| Management Interfaces | Console, USB, Out-of-Band Management Ethernet |
Key Benefits
- Power over Ethernet (PoE+) delivers power and data over the same cable — ideal for access points, VoIP phones, and cameras.
- Fiber uplinks provide reliable backbone connectivity.
- Layer 3 routing enables advanced network segmentation and routing.
- Stacking capability allows multiple switches to function as one logical unit for easier management and scalability.
- Designed for enterprise, campus, and branch-office networks.
How to Install Cisco WS-C3650-24PS-E
Step-by-Step Installation Guide:
- Unbox & Inspect – Check the switch, rack ears, power cable, and console cable.
- Rack Mount – Install into a standard 19-inch rack.
- Power Up – Connect AC power and turn on the switch.
- Console Setup – Connect a console cable to a PC using a terminal app (e.g., PuTTY).
- Initial Configuration – Configure hostname, IP address, and admin credentials.
- Connect Devices – Plug in Ethernet cables to PoE devices and SFP uplinks to the network core.
- Configure VLANs & Routing – Set up VLANs, inter-VLAN routing, and access policies.
- Save Configuration – Use: write memory
Tip: Update IOS XE to the latest version for improved security and performance.
Compatibility
This switch is compatible with:
- Cisco Catalyst and Nexus switches for end-to-end networking
- PoE devices like wireless access points, IP phones, and cameras
- Fiber uplink modules (1G SFP)
- Network management tools like Cisco Prime and DNA Center
Best Use Cases
- Enterprise campus access layer
- Branch-office networking
- PoE device deployment (VoIP, APs, cameras)
- Scalable stacked network infrastructure
FAQ (Frequently Asked Questions)
Q1: What does “24PS” mean?
It means 24 Gigabit Ethernet ports with PoE+ support.
Q2: Does this switch support stacking?
Yes — with Cisco StackWise-160.
Q3: What is the PoE budget?
Typically around 390 W for all PoE+ ports combined.
Q4: Is it a Layer 3 switch?
Yes, with the IP Base feature set.
Q5: What uplinks does it have?
It has 4 x 1G SFP uplink ports.
Buy Cisco WS-C3650-24PS-E Catalyst 3650 Series Switch at the Best Price in Bangladesh.
In Bangladesh, you can get Cisco WS-C3650-24PS-E Catalyst 3650 Series Switch From
Datacom Technologies BD. We have a large collection of latest
Cisco 3650 Series Switch to purchase for your Data Center. Order Online Or Visit our Office to get yours at lowest price. The
Cisco WS-C3650-24PS-E Catalyst 3650 Series Switch comes with 1 Year warranty.
