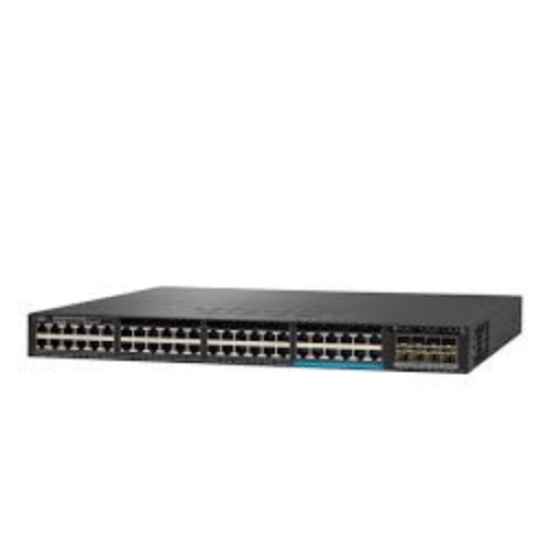

Cisco WS-C3650-48TD-L Catalyst 3650 Series Switch
The Cisco WS‑C3650‑48TD‑L Catalyst 3650 Series Switch is a reliable, enterprise-grade 48-port Gigabit Ethernet managed switch from Cisco Systems designed for campus and business network access layers. It delivers robust Layer 2 and basic Layer 3 switching with 48 x 10/100/1000 Ethernet ports and 2 x 10G SFP+ uplinks, making it ideal for medium to large networks requiring high throughput, scalability, and performance.
Key Features
- 48 x 10/100/1000 RJ-45 Ethernet ports for high-density connectivity
- 2 x 10G SFP+ uplink ports for high-speed aggregation
- LAN Base software feature set with essential Layer 2/Layer 3 capabilities
- Optional stacking support via Cisco StackWise-160 technology
- Enterprise-grade security and QoS features
- 1U rack-mountable design for standard data center and network racks
Cisco WS-C3650-48TD-L Specifications
| Specification | Details |
|---|
| Product Model | WS-C3650-48TD-L |
| Series | Cisco Catalyst 3650 Series Switches |
| Switch Type | Managed Enterprise Access Switch (Layer 3 capable) |
| Software Image | LAN Base (Layer 2 + basic Layer 3) |
| Ports | 48 × 10/100/1000 Ethernet Ports (Gigabit) |
| Uplink Ports | 2 × 10G SFP+ uplinks |
| Switching Capacity | 176 Gbps (48-port non-multigigabit model) |
| Forwarding Rate | 104.16 Mpps |
| Stacking Technology | Cisco StackWise-160 (up to 9 switches) |
| Stacking Bandwidth | 160 Gbps |
| MAC Address Table | 32,000 entries |
| IPv4 Routes | 24,000 routes |
| Flexible NetFlow Entries | 48,000 flows |
| DRAM (RAM) | 4 GB |
| Flash Memory | 2 GB |
| VLAN Support | Up to 4,094 VLAN IDs |
| SVI (Routed Interfaces) | Up to 1,000 SVIs |
| Jumbo Frame Support | Up to 9,198 bytes |
| Wireless Support | Up to 25 APs & 1,000 wireless clients per switch/stack |
| Power Supply | Field-replaceable AC PSU (varies by config) |
| Redundant Power Support | Yes (optional external RPS) |
| Form Factor | 1U Rack Mount |
| Management Interfaces | Console, USB, Out-of-Band Management Ethernet |
Key Benefits
- High-density port count for large network access deployments
- High-speed uplinks for aggregation to core switches
- Scalable stacking allows multiple switches to operate as a single unit
- Reliable performance with Cisco IOS support
- Suitable for enterprise networks, campus access layers, and branch offices
How to Install Cisco WS-C3650-48TD-L
Step-by-Step Installation Guide:
- Unbox & Inspect – Verify the switch, rack ears, power cable, and console cable are included.
- Rack Mount – Install the switch into a standard 19-inch rack using the supplied brackets.
- Power Connection – Connect the AC power cable and power on the switch.
- Console Access – Use a console cable to connect the switch to a laptop/PC and open a terminal (e.g., PuTTY).
- Initial Setup – Configure basic settings like hostname, IP address, and admin password.
- Connect Devices – Plug in Ethernet cables from servers, workstations, and access points.
- Configure VLANs & Routing – Create VLANs, trunks, and basic routing as needed.
- Save Configuration – Run: write memory
Tip: Keep the IOS version updated for security and performance improvements.
Compatibility
This switch is compatible with:
- Cisco routers and switches for end-to-end network connectivity
- 10G SFP+ modules for uplink and backbone connections
- Network management tools like Cisco Prime and DNA Center
- IP phones, wireless access points, servers, and storage devices
Best Use Cases
- Enterprise campus and building access networks
- Aggregation layer for medium to large networks
- Branch office network infrastructure
- High-density wired device environments
FAQ (Frequently Asked Questions)
Q1: What does “48TD” mean?
It indicates 48 Gigabit Ethernet ports with 2 x 10G uplinks.
Q2: Can this switch be stacked with others?
Yes — with Cisco StackWise-160 stacking modules (optional).
Q3: Is this a Layer 3 switch?
It supports basic Layer 3 features with the LAN Base feature set.
Q4: Is it suitable for enterprise use?
Yes, it’s designed for enterprise access layer networks and medium to large deployments.
Q5: What uplinks does it support?
It supports 2 x 10G SFP+ uplink ports for high-speed connections.
Buy Cisco WS-C3650-48TD-L Catalyst 3650 Series Switch at the Best Price in Bangladesh.
In Bangladesh, you can get Cisco WS-C3650-48TD-L Catalyst 3650 Series Switch From
Datacom Technologies BD. We have a large collection of latest
Cisco 3650 Series Switch to purchase for your Data Center. Order Online Or Visit our Office to get yours at lowest price. The Cisco WS-C3650-48TD-L Catalyst 3650 Series Switch comes with 1 Year warranty.
