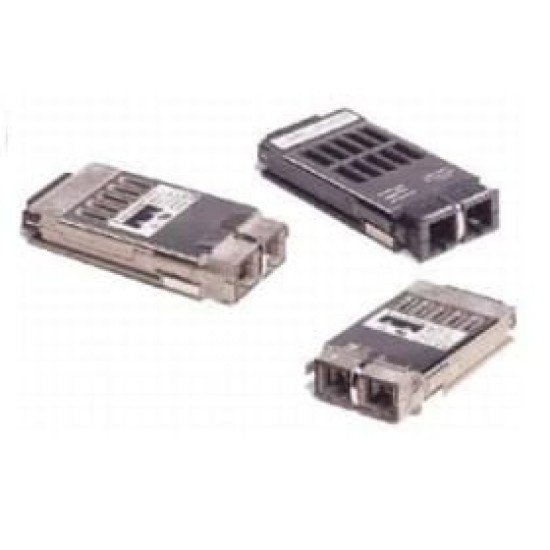

Cisco WS-G5484 GBIC Transceiver Module – 1000BASE-SX 850nm Multimode Fiber
The Cisco WS-G5484 is a Gigabit Interface Converter (GBIC) designed to provide 1000BASE-SX Gigabit Ethernet connectivity over multimode fiber. It operates at an 850nm wavelength and is designed for compatible Cisco Gigabit Ethernet switching and routing platforms equipped with GBIC interfaces.
The module provides short- to medium-range Gigabit Ethernet connectivity using multimode fiber and an SC optical connector. Depending on the installed fiber type and bandwidth characteristics, the WS-G5484 can support distances of up to 550 meters.
Cisco WS-G5484 Key Features
- 1000BASE-SX Gigabit Ethernet GBIC transceiver
- 850nm multimode fiber optical technology
- SC optical connector
- Up to 550m reach on supported multimode fiber
- 1Gbps Gigabit Ethernet data rate
- Designed for compatible Cisco GBIC-based platforms
- Suitable for enterprise and data center Gigabit Ethernet networks
- Hot-swappable GBIC form factor for supported Cisco equipment
Cisco WS-G5484 Technical Specifications
| Specification |
Details |
| Brand |
Cisco |
| Model |
WS-G5484 |
| Product Type |
Gigabit Interface Converter (GBIC) |
| Ethernet Standard |
1000BASE-SX |
| Data Rate |
1Gbps |
| Optical Wavelength |
850nm |
| Fiber Type |
Multimode Fiber (MMF) |
| Connector |
SC |
| Maximum Reach |
Up to 550m, depending on fiber type |
| Fiber Compatibility |
50/62.5-micron multimode fiber |
| Form Factor |
GBIC |
| Application |
Gigabit Ethernet |
| Product Status |
Legacy / End-of-Sale |
Optical Reach
The Cisco WS-G5484 is intended for multimode fiber Gigabit Ethernet links. Actual transmission distance depends on the fiber core size, modal bandwidth, connector quality, and overall optical link budget. For supported 50/62.5-micron multimode fiber, the module can provide distances up to approximately 550 meters.
Applications
- Gigabit Ethernet LAN networks
- Enterprise network backbone connections
- Data center switch-to-switch links
- Server and network equipment uplinks
- Cisco Catalyst Gigabit Ethernet switching environments
- Short- and medium-distance multimode fiber deployments
- Legacy Cisco GBIC-based networking infrastructure
Compatibility
The Cisco WS-G5484 is designed for compatible Cisco networking equipment supporting 1000BASE-SX GBIC modules. It uses an SC optical interface and requires compatible multimode fiber cabling.
Important: Do not confuse the WS-G5484 with the Cisco WS-G5483. The WS-G5484 is an 850nm 1000BASE-SX optical GBIC, while the WS-G5483 is a 1000BASE-T copper GBIC with an RJ-45 interface.
Cisco WS-G5484 Price in Bangladesh
Looking for the Cisco WS-G5484 price in Bangladesh? Pricing can vary depending on product condition, sourcing, warranty, and availability. As this is a legacy Cisco GBIC, availability may depend on remaining inventory or specialized sourcing. Contact Datacom Technologies (BD) for current pricing and procurement options.
Why Choose Cisco WS-G5484?
- 1Gbps Gigabit Ethernet optical connectivity
- 850nm 1000BASE-SX multimode fiber technology
- SC connector for compatible legacy fiber infrastructure
- Up to 550m reach on supported multimode fiber
- Designed for compatible Cisco GBIC-based equipment
- Useful for legacy Cisco Gigabit Ethernet network deployments
Buy Cisco WS-G5484 in Bangladesh
Datacom Technologies (BD) supplies Cisco networking equipment, optical modules, legacy GBICs, and network accessories in Bangladesh. For the Cisco WS-G5484, including price, availability, compatibility verification, and procurement support, contact our sales team.
Email: sales@datacom.com.bd
Note: The WS-G5484 is a legacy/End-of-Sale Cisco product. Verify the exact Cisco part number, host platform, GBIC slot compatibility, fiber type, connector, optical distance, and product condition before ordering.
