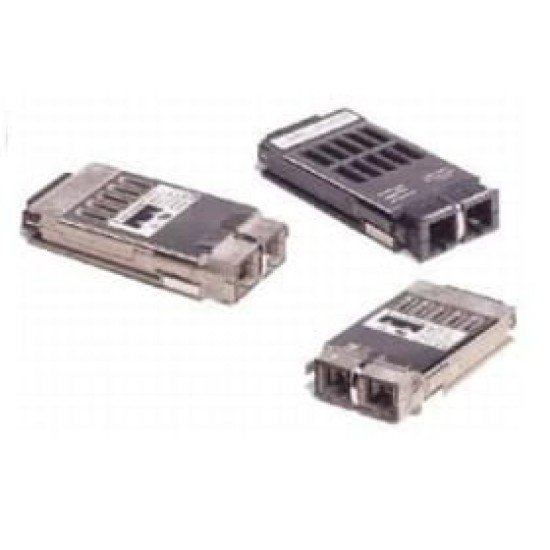

Cisco WS-G5487 GBIC Transceiver Module – 1000BASE-ZX 1550nm, Duplex SC, Up to 100km
The Cisco WS-G5487 is a 1Gbps Gigabit Interface Converter (GBIC) designed for extended-distance Gigabit Ethernet fiber networking. It supports the 1000BASE-ZX interface and operates at a nominal wavelength of 1550nm over single-mode fiber.
With its long-distance optical design, the WS-G5487 can support link spans of up to 70km over ordinary single-mode fiber. Cisco documentation states that distances of up to 100km are possible when using premium single-mode fiber or dispersion-shifted single-mode fiber, subject to the optical loss and dispersion characteristics of the installed link.
Cisco WS-G5487 Key Features
- 1000BASE-ZX extended-distance Gigabit Ethernet GBIC
- 1550nm long-wavelength optical transmission
- Duplex SC fiber connector
- Designed for single-mode fiber long-haul applications
- Up to 70km over ordinary single-mode fiber
- Up to 100km possible over suitable premium or dispersion-shifted single-mode fiber
- Hot-swappable GBIC form factor for compatible Cisco equipment
Technical Specifications
| Specification |
Details |
| Brand |
Cisco |
| Model |
WS-G5487 |
| Product Type |
Gigabit Interface Converter (GBIC) |
| Ethernet Standard |
1000BASE-ZX |
| Data Rate |
1Gbps Gigabit Ethernet |
| Wavelength |
1550nm |
| Fiber Type |
Single-Mode Fiber (SMF) |
| Connector |
Duplex SC |
| Standard SMF Reach |
Up to 70km |
| Extended SMF Reach |
Up to 100km with suitable premium or dispersion-shifted SMF |
| Optical Interface |
Single-mode long-haul optical interface |
| Operating Temperature |
0°C to 50°C |
| Storage Temperature |
-40°C to 85°C |
| Form Factor |
GBIC |
Long-Distance Fiber Connectivity
The Cisco WS-G5487 is intended for long-distance Gigabit Ethernet links where extended optical reach is required. Unlike the WS-G5484 1000BASE-SX GBIC designed for multimode fiber or the WS-G5486 1000BASE-LX/LH GBIC designed for approximately 10km single-mode links, the WS-G5487 is an extended-distance 1000BASE-ZX solution.
Cisco specifies up to 70km on ordinary single-mode fiber. Up to 100km can be achieved with appropriate premium single-mode or dispersion-shifted fiber. Actual achievable distance depends on fiber attenuation, dispersion, connectors, splices, and the complete optical link budget.
Optical Link Budget
The WS-G5487 provides a substantial optical power budget for extended-distance applications. Cisco documentation specifies a minimum optical power budget of approximately 23dB. Optical loss testing should be performed on the installed cable plant to verify that the total link loss remains within the supported optical budget.
Applications
- Long-distance Gigabit Ethernet backbone links
- Campus network interconnection
- Metro-area fiber network connectivity
- Switch-to-switch long-haul fiber links
- Router-to-router Gigabit Ethernet connectivity
- Legacy Cisco Catalyst and router GBIC deployments
- Telecommunications and extended-distance fiber infrastructure
Compatibility
The WS-G5487 is designed for Cisco networking equipment with compatible GBIC ports and software support for the 1000BASE-ZX interface. Cisco documentation lists the WS-G5487 for compatible Catalyst switches, routers, and Gigabit Ethernet line cards.
Compatibility should be verified against the exact Cisco platform and software release before purchase. The WS-G5487 is a legacy GBIC form factor and is not interchangeable with modern SFP or SFP+ modules.
Important Fiber Compatibility Note
The WS-G5487 is intended for single-mode fiber and should not be connected to multimode fiber. For links approaching the maximum supported distance, the complete optical path should be engineered and tested for attenuation and chromatic dispersion.
Cisco WS-G5487 Price in Bangladesh
For the latest Cisco WS-G5487 price in Bangladesh, product condition, and availability, contact Datacom Technologies (BD). As a legacy Cisco GBIC, pricing and availability may vary depending on sourcing and product condition.
Why Choose Cisco WS-G5487?
- Genuine Cisco 1000BASE-ZX extended-distance GBIC platform
- 1550nm optical wavelength for long-distance fiber transmission
- Up to 70km on ordinary single-mode fiber
- Up to 100km with suitable premium or dispersion-shifted fiber
- Duplex SC fiber connectivity
- Suitable for compatible legacy Cisco Gigabit Ethernet infrastructure
Buy Cisco WS-G5487 in Bangladesh
Datacom Technologies (BD) supplies Cisco networking equipment, GBIC modules, SFP transceivers, optical modules, and fiber networking solutions in Bangladesh.
Email: sales@datacom.com.bd
Contact Datacom Technologies (BD) for Cisco WS-G5487 pricing, compatibility verification, and current availability.
