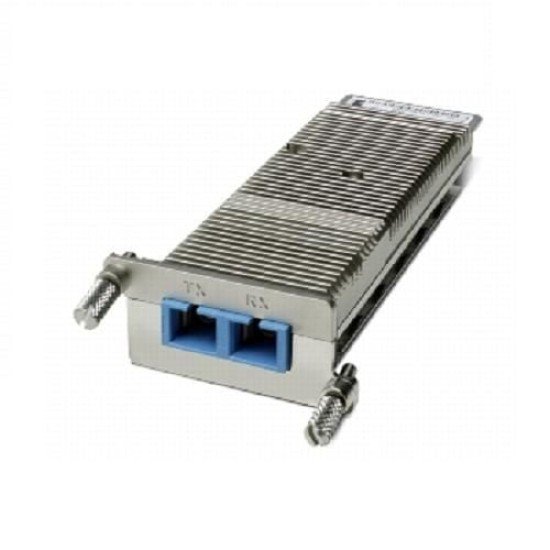

Cisco XENPAK-10GB-LRM XENPAK Transceiver Module
Cisco XENPAK-10GB-LRM XENPAK Transceiver Module
XENPAK-10GB-LRM Specification
| Property |
Value |
| General |
|
| Device Type |
XENPAK transceiver module |
| Form Factor |
Plug-in module |
| Networking |
|
| Connectivity Technology |
Wired |
| Cabling Type |
10GBase-LRM |
| Data Link Protocol |
10 GigE |
| Data Transfer Rate |
10 Gbps |
| Optical Wavelength |
1310 nm |
| Max Transfer Distance |
722 ft |
| Features |
Digital Optical Monitoring (DOM) support |
| Compliant Standards |
IEEE 802.3aq |
| Expansion / Connectivity |
|
| Interfaces |
1 x Ethernet 10GBase-LRM - SC/PC multi-mode x 2 |
| Compatible Slots |
1 x XENPAK |
| Dimensions & Weight |
|
| Width |
1.4 in |
| Depth |
4.8 in |
| Height |
0.7 in |
| Environmental Parameters |
|
| Min Operating Temperature |
32 °F |
| Max Operating Temperature |
104 °F |
| Compatibility Information |
|
| Designed For |
P/N: 4-10GE, 4-10GE=, 8-10GBE, 8-10GBE=, 8-10GBE-RF, WS-SUP32-10GE-3B, WS-SUP32-10GE-3B=, WS-SUP32-10GE-3B-RF, WS-X6704-10GE, WS-X6704-10GE=, WS-X6704-10GE-RF |
Technical Information
| Property |
Value |
| Product Code |
XENPAK-10GB-LRM |
| Description |
Cisco XENPAK-10GB-LRM 10GBase-LRM XENPAK Module |
| Product Type |
XENPAK |
| Interfaces/Ports Details |
1 x SC Duplex 10GBase-LRM |
| Interfaces/Ports |
1 x 10GBase-LRM |
| Application/Usage |
Data Networking |
| Dimensions |
0.5" Height x 1.4" Width x 4.8" Depth |
Specification
The
Cisco XENPAK-10GB-LRM XENPAK Module is a network transceiver designed for 10 Gigabit Ethernet connections over long distances using multimode fiber optic cables. Here's a breakdown of its key features:
Functionality:
Enables data transmission at speeds of 10 Gigabit per second (Gbps).
Supports connections over multimode fiber optic cables using the 10GBase-LRM standard.
Offers a maximum reach of approximately 722 feet (220 meters) with FDDI-grade or OM1/OM2 fiber. Longer distances are possible with higher-grade fibers like OM3 or OM4.
Physical Specifications:
XENPAK form factor: This allows hot-swapping for easy installation and removal in compatible Cisco networking devices like switches and routers.
Compact size: 0.5" height x 1.4" width x 4.8" depth for space-efficient deployment.
Additional details:
Supports Digital Optical Monitoring (DOM) for real-time monitoring of module parameters.
Complies with the IEEE 802.3aq standard for 10 Gigabit Ethernet over multimode fiber.
What is the price of Cisco XENPAK-10GB-LRM XENPAK in BD?
Datacom Tech BD offers all models of Cisco Transceiver Module including Cisco XENPAK-10GB-LR+ at the best price in Bangladesh. Call now.
