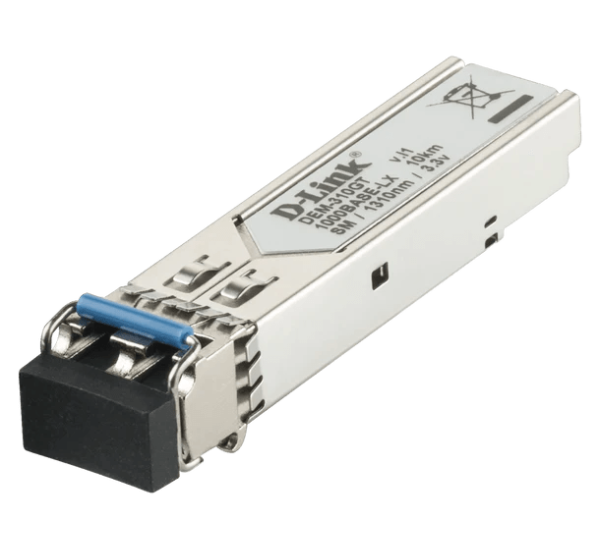

D-Link DEM-310GT 1000BASE-LX 10KM Single-Mode SFP Transceiver Module
The D-Link DEM-310GT is a high-performance SFP optical transceiver designed for 1000BASE-LX Gigabit Ethernet connectivity over single-mode fiber. It operates at a nominal 1310nm wavelength and supports transmission distances of up to 10km.
The module uses a compact SFP form factor with a Duplex LC connector and is designed for full-duplex Gigabit network connections. Its hot-pluggable design allows installation or replacement without requiring the connected networking equipment to be powered down. :contentReference[oaicite:0]{index=0}
1000BASE-LX Gigabit Ethernet Connectivity
The DEM-310GT supports the IEEE 802.3z 1000BASE-LX standard and provides a 1.25Gbps optical interface for compatible Gigabit Ethernet networking equipment.
It is suitable for connecting switches, network aggregation equipment, and other compatible devices across single-mode fiber infrastructure where extended Gigabit Ethernet reach is required. :contentReference[oaicite:1]{index=1}
10KM Single-Mode Fiber Transmission
The transceiver is designed for 9/125μm single-mode fiber and supports distances of up to 10km. This makes it suitable for longer Gigabit Ethernet links across enterprise, campus, and network infrastructure environments. :contentReference[oaicite:2]{index=2}
1310nm Optical Transmission
The DEM-310GT operates at 1310nm, providing optical transmission over compatible single-mode fiber. The D-Link datasheet specifies a 16dB link budget for this transceiver revision. :contentReference[oaicite:3]{index=3}
Duplex LC SFP Interface
The module features a Duplex LC connector for separate transmit and receive optical paths. Its standard SFP form factor enables installation in compatible SFP ports on networking equipment.
Hot-Pluggable Design
The DEM-310GT is hot pluggable, allowing the transceiver to be installed or replaced while the compatible system remains powered. This can simplify maintenance and reduce network downtime during module replacement. :contentReference[oaicite:4]{index=4}
Technical Specifications
| Specification |
Details |
| Brand |
D-Link |
| Model |
DEM-310GT |
| Product Type |
1000BASE-LX SFP Optical Transceiver |
| Form Factor |
SFP |
| Data Rate |
1.25Gbps |
| Optical Standard |
IEEE 802.3z 1000BASE-LX |
| Wavelength |
1310nm |
| Fiber Type |
Single-Mode Fiber |
| Fiber Specification |
9/125μm |
| Maximum Distance |
10km |
| Connector |
Duplex LC |
| Direction |
Single-Direction |
| Power Supply |
3.3V |
| Link Budget |
16dB |
| Hot Pluggable |
Yes |
| MSA Compliant |
Yes |
| RoHS Compliant |
Yes |
| Operating Temperature |
0°C to +70°C |
Applications
- 1000BASE-LX Gigabit Ethernet networks
- Enterprise network connectivity
- Campus network infrastructure
- Switch-to-switch connections
- Network aggregation links
- 10km single-mode fiber connections
- Long-distance Gigabit Ethernet deployments
Compatibility
The D-Link DEM-310GT is designed for compatible networking equipment supporting 1000BASE-LX SFP optical transceivers. D-Link notes that third-party devices must comply with the specified supported industry-standard specifications. :contentReference[oaicite:5]{index=5}
Before installation, verify the host device's supported SFP transceiver list, 1000BASE-LX compatibility, Duplex LC interface, single-mode fiber requirements, and required transmission distance.
Buy D-Link DEM-310GT in Bangladesh
Datacom Technologies (BD) supplies D-Link optical transceivers, networking equipment, fiber connectivity products, and data center hardware in Bangladesh. The DEM-310GT is suitable for compatible Gigabit Ethernet environments requiring 10km single-mode fiber connectivity.
For enterprise, ISP, telecom, campus network, and project requirements, customers can request a quotation based on the required transceiver, host equipment, fiber type, connector, and transmission distance.
