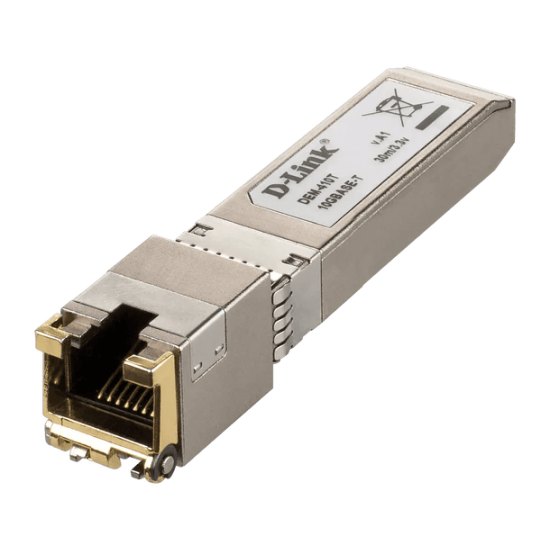

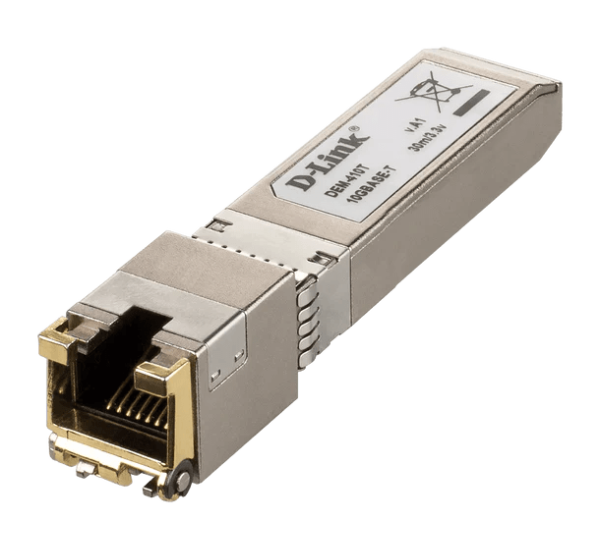

D-Link DEM-410T 10Gbps 10GBASE-T SFP+ Copper Transceiver Module
The D-Link DEM-410T is a 10Gbps copper transceiver designed to provide 10GBASE-T Ethernet connectivity through an SFP+ interface. It uses a standard RJ-45 connector and Cat6a copper cabling, providing a practical alternative to fiber-based SFP+ modules for short-distance network connections.
The module is designed for compatible networking equipment with SFP+ ports and supports 10Gbps Ethernet connectivity over distances of up to 30 meters with Cat6a cabling. It is suitable for data center, enterprise, top-of-rack, and other high-density network environments.
10GBASE-T High-Speed Copper Connectivity
The DEM-410T supports 10GBASE-T Ethernet connectivity at up to 10Gbps. It allows compatible SFP+ network ports to connect directly to copper-based Ethernet infrastructure using standard twisted-pair cabling.
This provides an alternative to 10GBASE-SR or 10GBASE-LR optical modules when a short-range copper connection is preferred.
RJ-45 Interface with Cat6a Cabling
The transceiver uses a standard RJ-45 interface and is designed for Cat6a structured cabling. This allows compatible SFP+ equipment to connect to existing copper Ethernet infrastructure without requiring optical fiber.
30m 10GBASE-T Reach
For 10GBASE-T operation, the DEM-410T supports distances of up to 30 meters over Cat6a cable. The supported distance makes it suitable for short network links between equipment located within the same rack, adjacent racks, or nearby data center locations.
SFP+ Form Factor
The SFP+ form factor provides a compact, hot-pluggable interface for compatible networking equipment. This allows network administrators to add copper 10Gbps connectivity to supported SFP+ ports while maintaining high port density.
Power-Optimized Copper Connectivity
D-Link describes the DEM-410T as a power-optimized 10GBASE-T solution for links up to 30 meters. Its compact design is intended for applications such as top-of-rack, mid-row, and end-of-row switch connectivity.
Technical Specifications
| Specification |
Details |
| Brand |
D-Link |
| Model |
DEM-410T |
| Product Type |
10GBASE-T SFP+ Copper Transceiver |
| Form Factor |
SFP+ |
| Data Rate |
10Gbps |
| Standard |
IEEE 802.3an 10GBASE-T |
| Additional Standard |
IEEE 802.3ab 1000BASE-T |
| Connector |
RJ-45 |
| Cable Type |
Cat6a |
| Maximum Distance |
30m at 10Gbps |
| Power Supply |
3.3V |
| Hot Pluggable |
Yes |
| MSA Compliant |
Yes |
| RoHS Compliant |
Yes |
| Operating Temperature |
0°C to +65°C |
Applications
- 10GBASE-T Ethernet networks
- 10Gbps SFP+ copper connectivity
- Data center network connections
- Top-of-rack switch connectivity
- Mid-row and end-of-row network connections
- Switch-to-server connections
- Short-distance Cat6a Ethernet links
Compatibility
The D-Link DEM-410T is designed for compatible networking equipment supporting 10GBASE-T SFP+ copper transceivers. Before installation, verify the host device's supported SFP+ transceiver list, 10GBASE-T compatibility, firmware requirements, and port specifications.
For 10Gbps operation, use suitable Cat6a copper cabling and keep the total link within the supported 30-meter distance.
Buy D-Link DEM-410T in Bangladesh
Datacom Technologies (BD) supplies D-Link networking products, SFP+ transceivers, copper Ethernet modules, fiber connectivity products, and data center hardware in Bangladesh. The DEM-410T is suitable for compatible 10Gbps network environments requiring short-range RJ-45 copper connectivity through an SFP+ interface.
For enterprise, ISP, telecom, data center, and project requirements, customers can request a quotation based on the required transceiver, host equipment, network speed, cabling type, and transmission distance.
