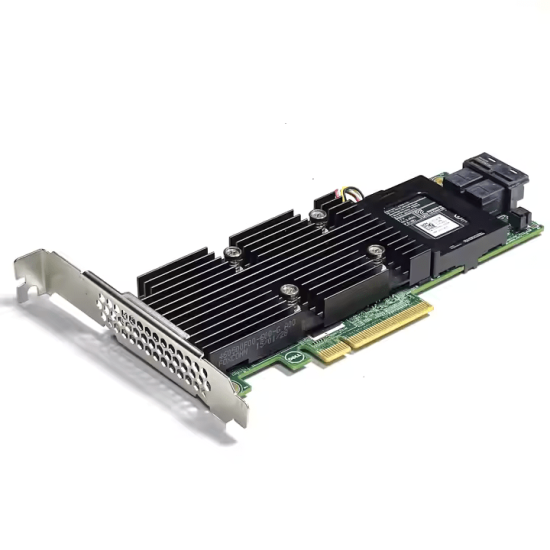

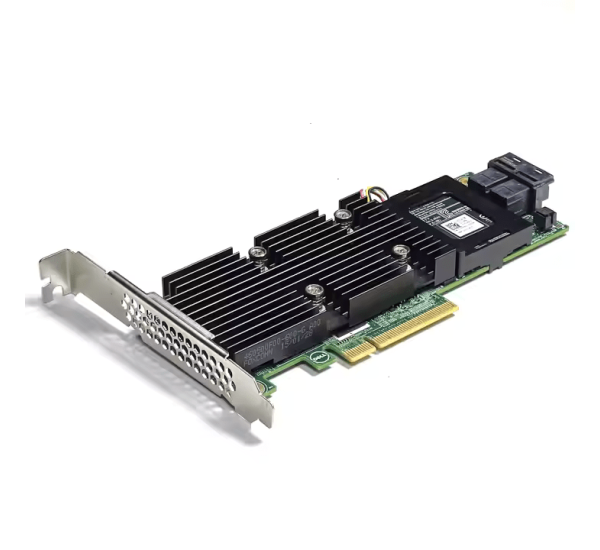

About Dell PERC H730 RAID controller 8 Channel - SATA 6Gb/s / SAS 12G
Specification
| Feature |
Value |
| Interface |
8-lane PCI Express 3.0 compliant |
| SAS Controller |
LSI SAS 3108 1200MT/s PowerPC 476 dual-core 12Gbps ROC |
| Cache Memory |
1GB 1333MT/s DDR3 SDRAM (optional 2GB) |
| Supported RAID Levels |
0, 1, 5, 6, 10, 50, 60 |
| Supported Drive Types |
SAS, SATA |
| Maximum Supported Drives |
255 |
| Data Transfer Rates |
Up to 12Gbps per port |
| Form Factor |
Low profile (MD2) |
| Connectors |
Two internal HD Mini-SAS SFF8643 |
| Features |
Hot-spare support, Patrol read, Battery-backed write cache (BBWC), Advanced data protection, Optional SSD optimization |
Dell PERC H730 RAID Controller Description
The Dell PowerEdge RAID Controller (PERC) H730 is a high-performance storage solution designed to enhance the data management and protection capabilities of Dell servers. It offers a combination of advanced features and robust performance, making it suitable for a wide range of applications, including database servers, virtualization environments, and high-performance computing workloads.
At the core of the PERC H730 is its powerful LSI SAS 3108 dual-core PowerPC RAID-on-Chip (ROC) processor, which delivers exceptional I/O performance and enables efficient data handling. The controller also features 1GB of non-volatile cache memory, which ensures rapid data processing and improved system responsiveness, even during power outages.
The PERC H730 supports a variety of RAID levels, including RAID 0, 1, 5, 6, 10, 50, and 60, providing flexible data redundancy and performance options to meet different storage needs. RAID 0 offers maximum performance but no data redundancy, while RAID 1 provides complete data redundancy but with a performance penalty. RAID 5 and 6 offer a balance of performance and data protection, with RAID 6 providing higher levels of fault tolerance.
In addition to its RAID capabilities, the PERC H730 also offers advanced data protection features such as hot-spare support, patrol read, and battery-backed write cache (BBWC). Hot-spare support allows the controller to automatically replace failed drives with spare drives, minimizing downtime. Patrol read is a proactive media scanning feature that helps to identify and prevent potential drive failures. BBWC ensures that data is written to non-volatile storage during power outages, preventing data loss.
The PERC H730 is compatible with a wide range of Dell PowerEdge servers and can be used in various form factors, including low profile and full height. It offers excellent performance, reliability, and data protection capabilities, making it a valuable asset for businesses of all sizes.
Supported/Comparable Models
The Dell PERC H730 is compatible with various Dell PowerEdge server models, including:
PowerEdge R730
PowerEdge R730xd
PowerEdge R630
PowerEdge R530
PowerEdge T630
PowerEdge M630
PowerEdge S630
Comparable RAID controllers from other vendors include:
LSI MegaRAID SAS 9300-8i
Adaptec RAID 750 Series
Areca ARC-1883
What is the price of a Dell PERC H730 RAID controller in Bangladesh?
The Dell PERC H730 RAID controller typically ranges in price from TK45,000/= to TK55,000/= in Bangladesh. However, please note that actual pricing may vary due to factors such as quantity, warranty, and current market conditions.
For a quote, contact
Datacom Technologies BD:
Call/WhatsApp: +8801748173213
Email: sales@datacomtechbd.com or datacomtechnologiesbd@gmail.com
