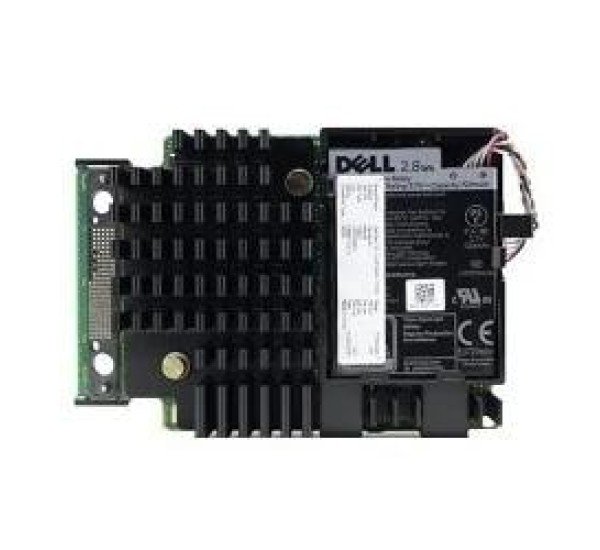

Dell PERC H740P RAID Controller Card
The Dell PERC H740P RAID Controller Card is a high‑performance storage controller designed for Dell PowerEdge servers, delivering fast and reliable data management for enterprise environments. It supports multiple SAS/SATA drives with advanced RAID levels and enhanced cache, ensuring improved data protection and optimized performance. With robust management tools and scalable storage capabilities, it’s ideal for demanding workloads and mission‑critical applications.
Dell PERC H740P RAID Controller Card – Specifications
| Specification | Details |
|---|
| Model | Dell PERC H740P RAID Controller |
| Host Bus | PCI Express 3.1 x8 |
| Controller | Dell Adapter SAS RAID‑on‑Chip (LSISAS3508) |
| Cache Memory | 8 GB non‑volatile cache |
| Data Transfer Rate | Up to 12 Gb/s SAS & 6 Gb/s SATA per port |
| Ports | 8 internal SAS/SATA (4× Mini‑SAS HD SFF‑8643) |
| Supported Drive Types | SAS, SATA HDD/SSD |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60 |
| Maximum Drives Supported | Up to ~32 without expanders (server dependent) |
| Features | Online Capacity Expansion (OCE), Online RAID Level Migration (RLM), Load Balancing, DDF support, S.M.A.R.T., 4K native sector, SED support |
| Supported OS | Windows Server, Linux (RHEL, SUSE), etc. |
| Form Factor | Low profile / full height PCIe card |
| Operating Temperature | Up to ~60 °C |
| Designed For | Dell PowerEdge servers |
Dell PERC H740P RAID Controller Card – Description
The Dell PERC H740P RAID Controller Card is a high‑performance enterprise RAID adapter designed for use in Dell PowerEdge servers, delivering advanced storage capabilities for demanding data center and server workloads. It connects via a PCI Express 3.1 x8 bus, providing ample throughput for managing multiple high‑speed drives. The controller is built around a Dell Adapter SAS RAID‑on‑Chip design with the LSISAS3508 chipset, supporting 12 Gb/s SAS and 6 Gb/s SATA interfaces to maximize data transfer performance across SAS and SATA HDDs or SSDs.
Equipped with a generous 8 GB non‑volatile cache, the PERC H740P accelerates I/O performance and protects data during unexpected power events, making it suitable for mission‑critical applications and mixed workloads. The controller supports a wide range of RAID levels including RAID 0, 1, 5, 6, 10, 50, and 60, giving administrators flexibility to balance performance, capacity, and redundancy according to their needs.
With eight internal SAS/SATA lanes delivered through dual Mini‑SAS HD (SFF‑8643) connectors, the card can manage configurations of up to around 32 drives within compatible server platforms, and can scale further with supported expanders. Enterprise‑grade features such as Online Capacity Expansion (OCE), Online RAID Level Migration (RLM), load balancing, and support for self‑encrypting drives (SED) further enhance its suitability for versatile storage deployments.
Key Features
- High-Performance Enterprise RAID Controller – Designed for Dell PowerEdge servers.
- 12Gb/s SAS Data Transfer – Fast and reliable throughput for storage-intensive workloads.
- Supports Multiple RAID Levels – RAID 0, 1, 5, 6, 10, 50, 60 for performance and data protection.
- 8 Internal SAS/SATA Ports – Connect multiple HDDs or SSDs via Mini-SAS HD (SFF-8643) connectors.
- 2GB DDR4 Cache Memory – Enhances read/write performance and reduces latency.
- PCIe 3.0 x8 Interface – High-bandwidth connection with modern server motherboards.
- Enterprise Reliability – Hot-swap support, online RAID migration, and advanced error handling.
Where It Can Be Used
- Dell PowerEdge Servers in enterprise environments
- Data centers and cloud infrastructure
- Virtualization servers (VMware, Hyper-V, KVM)
- Database and application servers needing high-speed storage
- Backup, archival, and high-performance storage servers
Installing Steps
- Power Off the Server – Disconnect all power sources before installation.
- Install the RAID Controller – Insert into a PCIe 3.0 x8 slot on the motherboard.
- Connect SAS/SATA Drives – Attach Mini-SAS HD (SFF-8643) cables to drives or backplane.
- Install Optional Battery or Cache Module – Protects cached data during power failure.
- Power On the Server – Enter RAID BIOS utility (Ctrl+R or Ctrl+H).
- Create RAID Arrays – Select drives and configure the desired RAID levels.
- Install Drivers & Management Software – Use Dell OpenManage Storage Services or MegaRAID Storage Manager.
Compatible Server Models for DELL PERC H740P RAID Controller Card
The Dell PERC H740P RAID Card is a high‑performance 12 Gb/s SAS + 6 Gb/s SATA RAID controller with up to 8 ports and support for advanced RAID levels (0, 1, 5, 6, 10, 50, 60). It’s designed primarily for Dell EMC PowerEdge server platforms with PCIe 3.1 support, offering scalable storage performance and reliability for enterprise applications such as virtualization, databases, and cloud infrastructure.
✅ Dell PowerEdge Rackmount & Tower Servers
- Dell PowerEdge R440 — 1U rack server
- Dell PowerEdge R540 — 2U rack server
- Dell PowerEdge R640 — 1U rack server
- Dell PowerEdge R740 — 2U rack server
- Dell PowerEdge R740xd — Storage‑optimized 2U rack server
- Dell PowerEdge R7425 — Dual‑socket rack server
- Dell PowerEdge R840 — High‑performance rack server
- Dell PowerEdge R940 — Scalable 3U rack server
- Dell PowerEdge R940xa — Extended capacity server
- Dell PowerEdge T440 — Tower server
- Dell PowerEdge T640 — Enterprise tower server
FAQ for Dell PERC H740P RAID Controller Card
1. What is the Dell PERC H740P used for?
It is a RAID controller for Dell PowerEdge servers, providing high-speed storage performance, data protection, and advanced RAID functionality.
2. How many drives can it support?
It supports up to 8 internal drives directly, expandable via SAS expanders.
3. Does it support SSDs and HDDs?
Yes, it supports both SAS and SATA SSDs/HDDs.
4. Which RAID levels are supported?
RAID 0, 1, 5, 6, 10, 50, and 60 for flexible storage configurations.
5. Can it be used in virtualization environments?
Yes, fully compatible with VMware, Hyper-V, and KVM virtualization platforms.
What is the price of Dell PERC H740P RAID Controller Card in Bangladesh?
The lowest price of Dell PERC H740P RAID Controller Card in Bangladesh is 35,000৳. You can buy the Dell PERC H740P RAID Controller at best price from our website or visit our Office.
For the most accurate pricing, stock availability, and warranty details, we recommend contacting us before placing your order.
