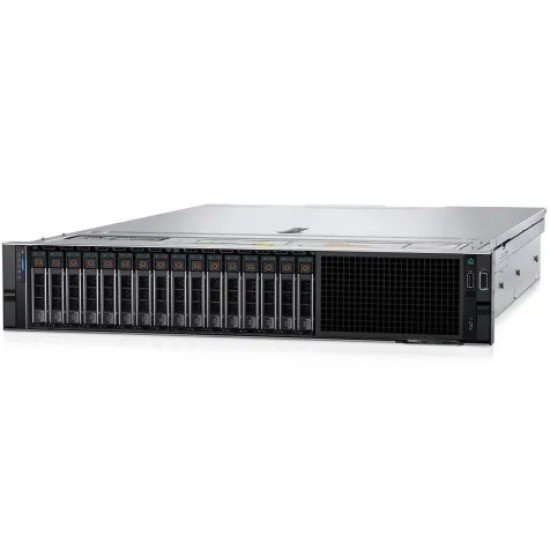

Dell PowerEdge R750xs Rack Server

Dell PowerEdge R750xs Rack Server

The Dell PowerEdge R750xs Rack Server, available at Datacom Technologies BD, delivers unmatched performance and reliability for enterprise workloads. With support for up to 2 × 3rd Gen Intel Xeon processors, 1TB DDR4 memory, and versatile storage options, it ensures high-speed computing and scalability. Ideal for data centers, virtualization, and demanding applications, this server combines robust hardware with advanced management features like iDRAC9 for seamless operation.

Dell PowerEdge R750xs Full Specification

Feature	Details
Brand	Dell
Model	PowerEdge R750xs
Form Factor	2U Rack Server
Processor Support	Up to 2 × 3rd Generation Intel® Xeon® Scalable processors (up to 32 cores per CPU)
Memory	Up to 16 × DDR4 DIMM slots, Supports RDIMM / LRDIMM, Maximum 1TB
Memory Speed	Up to 3200 MT/s (depends on CPU)
Storage Options	Supports up to 12 × 3.5" SAS/SATA (HDD/SSD) or 16 × 2.5" SAS/SATA/NVMe drives
RAID Controllers	PERC H745, H755, or Software RAID options
Networking	Dual 1GbE LOM, Optional OCP 3.0 NIC for 10/25/100GbE
Expansion Slots	Up to 3 × PCIe Gen4 slots
Power Supply	Dual Hot-plug redundant 800W / 1100W Platinum PSU
Management	iDRAC9 with Lifecycle Controller
Dimensions	Height: 2U, Depth: ~710mm (varies by config)
Weight	~26 – 30 Kg (depending on config)

Dell PowerEdge R750xs Description The Dell PowerEdge R750xs Rack Server is a high-performance, cost-optimized solution designed to handle modern workloads in enterprise and data center environments. As a member of Dell’s 15th generation PowerEdge lineup, the R750xs delivers a balance of scalability, performance, and flexibility, making it ideal for virtualization, database management, software-defined storage, and cloud applications. Powered by up to two 3rd Generation Intel Xeon Scalable processors, it can support up to 32 cores per CPU, enabling businesses to run demanding applications with ease. With support for up to 1TB of DDR4 memory running at speeds of up to 3200 MT/s, the R750xs ensures smooth data processing and fast response times for critical workloads. The server supports versatile storage configurations, allowing enterprises to choose between high-capacity HDDs or performance-driven NVMe SSDs, making it adaptable for both traditional and modern storage needs. It includes iDRAC9 with Lifecycle Controller, providing advanced remote management capabilities for efficient monitoring, updates, and automation. With redundant hot-plug power supplies, multiple PCIe Gen4 expansion slots, and flexible networking options up to 100GbE, the Dell PowerEdge R750xs ensures reliable uptime and future scalability. Overall, it’s an excellent choice for businesses seeking a powerful yet optimized rack server.

✅ Key Features

• Processor Options: Dual 3rd Gen Intel® Xeon® Scalable processors (up to 32 cores per CPU)
• Memory Capacity: Supports up to 1TB DDR4 ECC Registered DIMM @ 3200MT/s
• Storage Flexibility: Up to 12 x 3.5" SAS/SATA (HDD/SSD) or 16 x 2.5" SAS/SATA/NVMe drives
• RAID Options: PERC H755, H750, or S150 controllers for data protection
• Expansion Slots: Up to 6 PCIe Gen4 slots for additional networking or GPU support
• Power Supply: Dual hot-plug redundant PSU (800W/1100W options)
• Management: Integrated Dell iDRAC9 with Lifecycle Controller for remote monitoring & updates
• Form Factor: 2U rack-mounted design, optimized for performance & density
• Networking: Flexible NIC options with OCP 3.0 support, 1GbE/10GbE/25GbE

⚙️ Installation Steps

1. Unboxing & Preparation

• Inspect the server and ensure all components (rails, power cords, documentation) are included.
• Prepare the rack space (2U) and ensure sufficient airflow.

2. Rack Installation

• Mount the sliding rails into the rack.
• Carefully slide the server into the rails and secure it with screws/latches.

3. Hardware Setup

• Install memory modules, drives, or expansion cards if not pre-configured.
• Connect redundant power supplies to separate UPS units for reliability.

4. Networking & Console

• Connect Ethernet cables to the iDRAC port and data NICs.
• Attach a monitor, keyboard, or use iDRAC for remote setup.

5. Initial Power On

• Power on the system and enter BIOS/RAID configuration.
• Set up RAID levels and boot devices as required.

6. Operating System Installation

• Insert installation media (USB/DVD/Network boot).
• Install Windows Server, Linux (RHEL, Ubuntu), or VMware ESXi as per requirements.

7. Post-Installation Configuration

• Update firmware and drivers via Dell Lifecycle Controller.
• Configure iDRAC for remote monitoring & alerts.
• Apply security policies, create backups, and finalize deployment.

Buy Dell PowerEdge R750xs Rack Server at the Best Price from Datacom BD

In Bangladesh, you can get Dell PowerEdge R750xs Rack Server From Datacom. We have a large collection of latest Dell Server to purchase for your Data Center. Order Online Or Visit our Office to get yours at lowest price. The Dell PowerEdge R750xs Rack Server comes with 1 Year warranty.
