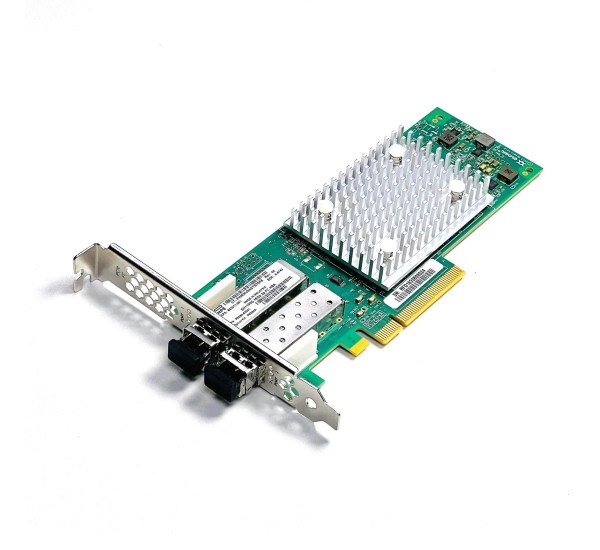

Dell XV3MV QLogic QL45252 25Gb 2-Port SFP+ Adapter Short Intro
The Dell XV3MV QLogic QL45252 25Gb 2-Port SFP+ Adapter is a high-speed enterprise network interface card designed for Dell PowerEdge servers. It provides dual 25Gb Ethernet connectivity over SFP28-compatible ports, ensuring fast, stable, and low-latency data transfer for modern data center workloads. Built on the QLogic FastLinQ 45000 series architecture, it supports advanced features like SR-IOV, RDMA, and hardware offloading, making it ideal for virtualization, cloud computing, and storage-intensive environments.
Dell XV3MV QLogic QL45252 Adapter Specification Table:
| Specification | Details |
|---|
| Product Name | Dell XV3MV QLogic QL45252 25Gb 2-Port SFP+ Adapter |
| Dell Part Number | XV3MV (0XV3MV) |
| Chipset | QLogic FastLinQ 45000 Series (QL45252) |
| Adapter Type | 25 Gigabit Ethernet Network Interface Card (NIC) |
| Ports | 2 × SFP28 (25GbE) |
| Data Rate | 25 Gbps per port |
| Total Bandwidth | Up to 50 Gbps full duplex |
| Interface | PCI Express 3.0 x8 |
| Form Factor | Low-profile / Full-height PCIe card |
| Connector Type | SFP28 (backward compatible with SFP+ modules depending on setup) |
| Supported Media | DAC (Direct Attach Copper), AOC, Fiber SFP28/SFP+ |
| Network Standards | IEEE 802.3by (25GbE), 10GbE compatible modes |
| Virtualization | SR-IOV, VMware NetQueue, Hyper-V |
| RDMA Support | RoCE v1 / RoCE v2 |
| Offload Features | TCP/IP checksum offload, TSO, LRO, RSS |
| Advanced Features | VXLAN, NVGRE, overlay network offload |
| Boot Support | PXE Boot, UEFI Boot |
| Power Consumption | ~9W (typical) |
| Operating Temperature | 0°C to 55°C |
| OS Support | Windows Server, Linux, VMware ESXi |
| Server Compatibility | Dell PowerEdge servers (PCIe 3.0 x8 supported systems) |
| Use Case | Data center, cloud computing, virtualization, storage networking |
Dell XV3MV QLogic QL45252 Adapter 25Gb 2-Port SFP+ Network Card – Full Description
The Dell XV3MV QLogic QL45252 Adapter 25Gb 2-Port SFP+ Network Card is a powerful enterprise-grade networking solution designed to deliver ultra-fast data transfer, low latency performance, and high scalability for modern data center and cloud infrastructures. Built on the advanced QLogic FastLinQ 45000 Series chipset, this network interface card provides exceptional efficiency and reliability for demanding server environments.
Featuring dual 25GbE SFP+ ports, the adapter delivers up to 25 Gigabits per second per port, ensuring high-bandwidth connectivity for virtualization, cloud computing, storage networking, and high-performance enterprise applications. With its PCIe 3.0 x8 interface, it ensures seamless integration with compatible Dell PowerEdge servers while maximizing throughput and minimizing latency.
The Dell XV3MV is engineered for next-generation data center performance, supporting advanced networking technologies such as RDMA (Remote Direct Memory Access), RoCE and RoCEv2, SR-IOV virtualization, NVMe over Fabrics (NVMe-oF), and hardware offloading. These features significantly reduce CPU overhead, improve system efficiency, and enable faster data processing across networked environments.
One of the key advantages of this 25Gb network card is its ability to deliver high-density virtualization support. With SR-IOV technology, multiple virtual machines can share a single physical NIC while maintaining isolated and high-speed network performance. This makes it ideal for cloud service providers, enterprise virtualization platforms, and large-scale hosting environments.
The QLogic QL45252 chipset is designed for energy-efficient and stable performance, consuming low power while handling heavy workloads. Its intelligent hardware offloading capabilities ensure that tasks such as packet processing, checksum calculations, and tunneling protocols are handled directly by the NIC, freeing up CPU resources for core business applications.
Built for enterprise reliability, the Dell XV3MV adapter supports continuous 24/7 operation in data center environments. Its low-profile design allows easy installation in rack servers with limited space, while maintaining excellent thermal performance under heavy network loads.
This adapter is compatible with major operating systems including Windows Server, Linux distributions, and VMware ESXi, making it a flexible solution for diverse IT infrastructures. It is widely used in Dell PowerEdge servers and other PCIe-based enterprise systems.
Key Features of Dell XV3MV QLogic QL45252 25Gb NIC:
- Dual 25GbE SFP+ ports for high-speed networking
- PCIe 3.0 x8 interface for stable data throughput
- QLogic FastLinQ 45000 Series chipset
- Supports RDMA and RoCE for ultra-low latency
- SR-IOV virtualization support for cloud environments
- NVMe over Fabrics (NVMe-oF) compatibility
- Advanced hardware offloading for CPU efficiency
- Low power consumption (~enterprise optimized design)
- Compatible with Windows, Linux, and VMware
Best Applications in Bangladesh:
The Dell XV3MV 25Gb NIC is ideal for data centers, enterprise servers, cloud computing platforms, virtualization clusters, storage networks, and high-performance computing environments. In Bangladesh, it is especially useful for IT companies, hosting providers, and enterprises upgrading from 10GbE to 25GbE high-speed infrastructure.
Why Choose Dell XV3MV QLogic QL45252:
If your organization needs high-speed, scalable, and reliable networking performance, this 25Gb adapter is an excellent choice. It bridges the gap between 10Gb and 100Gb networking, offering a cost-effective upgrade path with enterprise-grade stability and advanced networking features.
FAQ – Dell XV3MV QLogic QL45252 25Gb Network Card
1. What is Dell XV3MV QLogic QL45252 Network Adapter?
Dell XV3MV QLogic QL45252 is a dual-port 25 Gigabit Ethernet SFP+ server network interface card (NIC) designed for enterprise data centers, cloud infrastructure, and high-performance computing systems.
2. What is the speed of this network card?
It supports up to 25Gbps per port, allowing ultra-fast data transfer for virtualization, storage networking, and high-bandwidth applications.
3. How many ports does Dell XV3MV have?
This adapter comes with 2 x 25Gb SFP+ ports (dual-port design) for high throughput and network redundancy.
4. What chipset is used in XV3MV QL45252?
It is powered by the QLogic FastLinQ 45000 series chipset, which is known for low latency, high reliability, and advanced data center features.
5. Is Dell XV3MV a fiber or RJ45 network card?
It is a fiber-based SFP+ NIC, meaning it does NOT use RJ45 ports. It works with:
- Fiber optic transceivers
- DAC (Direct Attach Copper) cables
- AOC cables
6. What is the PCIe interface of this card?
The card uses a PCIe 3.0 x8 interface, ensuring stable high-speed communication between server and network adapter.
7. Is this NIC suitable for data centers in Bangladesh?
Yes, it is widely used in Bangladesh data centers, ISP backbone networks, cloud servers, and enterprise IT infrastructure due to its 25Gb performance.
Where to buy Dell XV3MV Qlogic QL45252 Adapter 25GB 2-Ports SFP+ Adapter in Bangladesh?
You can buy your desired Dell XV3MV Qlogic QL45252 Adapter 25GB 2-Ports SFP+ Adapter From Datacom Technologies BD. We are the authorized Server Network Card Supplier in Bangladesh. You buy online and enjoy free home delivery.
