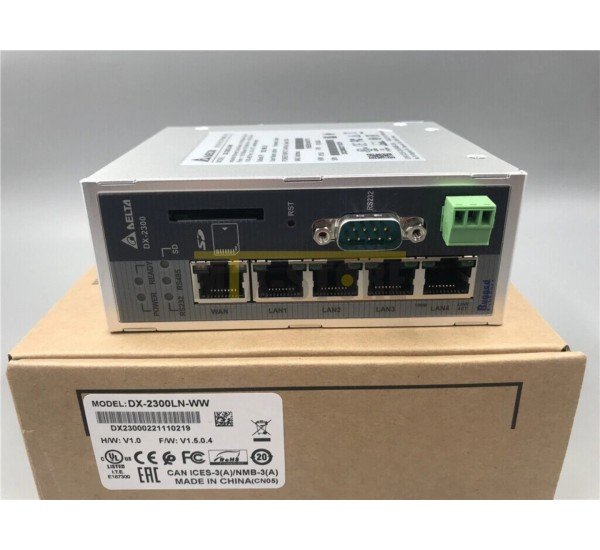

Delta DX-2300LN-WW Industrial Ethernet Cloud Router

Delta DX-2300LN-WW Industrial Ethernet Cloud Router

The Delta DX-2300LN-WW is an industrial-grade wired Ethernet cloud router designed for industrial automation, IIoT communication, remote monitoring and remote device management. It provides Ethernet, RS-232 and RS-485 interfaces to connect industrial equipment and intelligent devices to network and cloud-based applications.

The router works with Delta's DIACloud platform to provide secure point-to-point connectivity between users and remote devices. This allows authorized users to perform remote monitoring, device management, configuration and firmware-related maintenance without requiring an additional private VPN server for the cloud-based connection.

Delta DX-2300LN-WW Features

• Industrial-grade wired Ethernet cloud router
• 1 × 10/100Mbps WAN Ethernet port
• 4 × 10/100Mbps LAN Ethernet ports
• Auto MDI/MDI-X and auto-negotiation on Ethernet ports
• 1 × RS-232 DB9 male serial interface
• 1 × RS-485 terminal-block interface
• 15kV isolation protection for serial communication
• Supports Modbus TCP and Modbus RTU/ASCII
• DIACloud cloud platform connectivity
• Secure tunnel between user and remote device through the cloud service
• Static IP and DHCP client WAN connection methods
• Built-in RTC and NTP network time synchronization
• Stateful Packet Inspection (SPI) firewall
• NAT, port triggering and port mapping
• IP address, MAC address and URL filtering
• DoS attack prevention features
• DHCP server/client, DNS, HTTP, SSH and other TCP/IP services
• Scheduled task management
• Network data-flow statistics and network-failure diagnostics
• Configuration export and import
• Custom alarm conditions with email notification support
• Android and iOS online monitoring support
• DIN-rail and wall-mount installation

Detailed Technical Specifications

DIACloud Remote Connectivity

The DX-2300LN-WW integrates with the DIACloud platform for remote industrial connectivity. The platform can establish a secure tunnel between the user and a remote DX router, enabling remote access and management without requiring an additional private VPN server for this cloud connection.

DIACloud can be used for remote device monitoring, configuration, firmware upgrading, maintenance and point-to-point data transmission. This makes the DX-2300LN-WW suitable for distributed industrial installations where equipment needs to be monitored or maintained remotely.

Industrial Communication and Protocol Support

The router provides both RS-232 and RS-485 serial interfaces for industrial equipment. It supports Modbus TCP together with Modbus RTU/ASCII, allowing compatible industrial devices and controllers to exchange data across Ethernet and serial communication environments.

The Ethernet interfaces support WAN and LAN networking using 10/100Mbps connectivity. The WAN interface supports connection methods including static IP and DHCP client configurations.

Compatibility

The DX-2300LN-WW is intended for compatible industrial Ethernet equipment, controllers, automation devices and serial communication equipment. Compatibility depends on the communication protocol, Ethernet configuration, RS-232/RS-485 electrical interface and device communication parameters.

For Modbus deployments, verify the connected equipment's Modbus TCP or Modbus RTU/ASCII configuration, addressing, baud rate, parity, stop bits and other serial parameters before installation. The RS-485 interface should also be connected according to the requirements of the connected industrial network.

The DIACloud service requires an appropriate cloud account and network connectivity. Availability of specific cloud functions can depend on the applicable Delta service and software environment.

Applications and Use Cases

• Industrial automation networking
• Industrial IoT and IIoT communication
• PLC remote monitoring and maintenance
• Modbus TCP and Modbus RTU/ASCII communication
• Smart building automation
• Smart power grid applications
• Video surveillance infrastructure
• Intelligent transportation systems
• Remote industrial equipment management
• Distributed machine and factory automation

Industrial Installation

The DX-2300LN-WW uses an IP30 metal enclosure and supports both industrial DIN-rail and wall mounting. Its -20°C to 70°C operating-temperature range is designed for industrial environments within the specified environmental limits.

The device accepts 9 to 40VDC through a 2-pin terminal block. The manufacturer specifies a maximum input current of 0.53A and overload current protection up to 1.5A. Reverse polarity protection is not provided, so the DC power connection should be wired according to the manufacturer's requirements.

Why Choose Delta DX-2300LN-WW?

The Delta DX-2300LN-WW combines Ethernet routing, industrial serial communication and cloud connectivity in a compact industrial device. Its four LAN ports, dedicated WAN port, RS-232/RS-485 interfaces, Modbus support, firewall functions and DIACloud integration make it suitable for remote industrial monitoring and communication projects.
