| Specification | Details |
|---|
| Product Name | Jetson Y-C8-DEV-AGX32 Carrier Board |
| Compatibility | NVIDIA Jetson AGX Orin, Jetson AGX Xavier modules |
| Form Factor | Full-sized carrier board for development and prototyping |
| Memory Support | Matches installed Jetson module (varies by module) |
| Storage Support | M.2 NVMe slot, microSD slot (depends on module) |
| PCIe Slots | PCIe Gen4 / Gen3 lanes for high-speed expansion |
| USB Ports | Multiple USB 3.2 and USB 2.0 ports |
| Networking | 1 × Gigabit Ethernet port |
| Display Interface | HDMI, DisplayPort, and eDP interfaces |
| Camera Interface | Multiple MIPI CSI-2 connectors for cameras |
| I/O Interfaces | UART, SPI, I2C, GPIO, CAN, PWM, Audio |
| Power Supply | 12–19 V DC input via barrel connector or ATX |
| LED Indicators | Status LEDs for power, activity, and module health |
| Cooling Support | Fan header and heatsink support for active cooling |
| Software Support | NVIDIA JetPack SDK (Linux + AI libraries) |
| Development Focus | AI, robotics, vision, autonomous machines, embedded systems |
Description

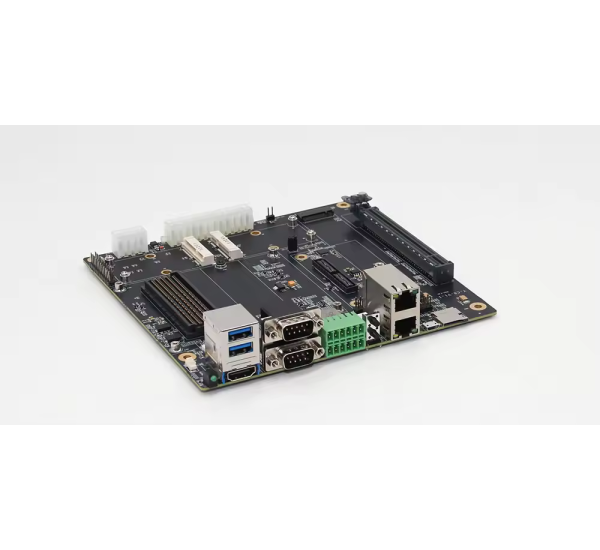

The Jetson Y-C8-DEV-AGX32 Carrier Board is a versatile development platform designed to maximize the capabilities of NVIDIA’s AGX Orin and AGX Xavier modules. It provides developers with a full-featured interface to prototype and deploy advanced AI, robotics, and autonomous machine solutions. By exposing essential connectivity, the carrier board allows seamless access to high-speed interfaces such as PCIe Gen4, USB 3.2, Gigabit Ethernet, and multiple MIPI CSI-2 camera inputs.
The board supports high-resolution HDMI, DisplayPort, and eDP display outputs, making it ideal for computer vision and visualization applications. Developers can integrate a wide variety of sensors and peripherals using standard embedded interfaces like UART, SPI, I2C, CAN, GPIO, and PWM, while onboard audio connections and status LEDs ensure easy monitoring and debugging.
With flexible power options, the carrier board can be powered via barrel connector or ATX, supporting active cooling solutions to maintain optimal performance during heavy workloads. Combined with the NVIDIA JetPack SDK, the board enables full Linux-based development and access to AI libraries such as CUDA, TensorRT, and cuDNN, allowing rapid prototyping and deployment of complex AI models at the edge. This makes the Y-C8-DEV-AGX32 carrier board an ideal solution for developers and engineers building intelligent systems, autonomous machines, and robotics applications.
