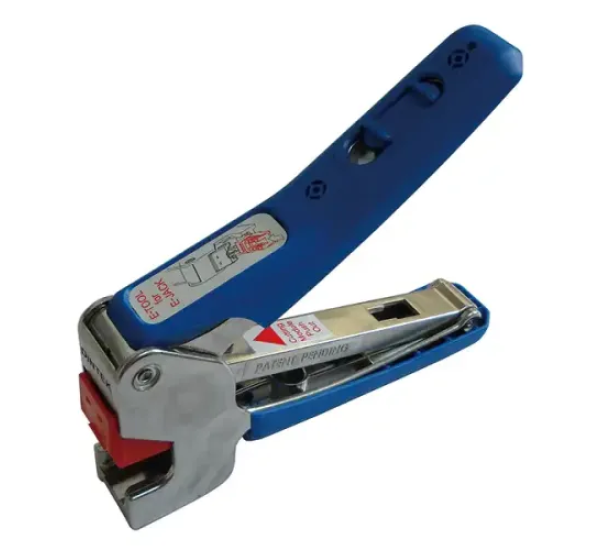

Dintek 6103-01005 ezi-TOOL90 Keystone E-Jack Termination Tool
The Dintek 6103-01005 ezi-TOOL90 is a specialized termination tool designed for compatible horizontal DINTEK ezi-JACK keystone modules. It combines wire insertion and trimming in one operation, helping network installers terminate all eight conductors evenly and efficiently.
Unlike conventional impact-style punch-down tools, the ezi-TOOL90 presses conductors onto the insulation displacement contact (IDC) terminals and trims excess wire together. This helps create consistent terminations, reduce installation time, and support reliable structured cabling performance.
Key Features and Benefits
- All-in-One Termination: Inserts all eight conductors and trims excess wire in a single operation.
- Horizontal E-Jack Compatibility: Designed for compatible DINTEK ezi-JACK90 horizontal keystone jacks.
- Multiple Cabling Categories: Supports compatible Cat5e, Cat6, and Cat6A installations.
- Consistent IDC Connections: Helps maintain uniform conductor seating for dependable terminations.
- Reduced Installation Time: Combines wire insertion and trimming to streamline repeated jack termination.
- Reduced Risk of Jack Damage: Designed for the intended E-Jack system to help avoid problems associated with incorrect termination methods.
Technical Specifications
| Brand | DINTEK |
| Model / Part Number | 6103-01005 |
| Product Name | ezi-TOOL90 Horizontal Tool |
| Product Type | Keystone E-Jack termination tool |
| Termination Method | Combined conductor insertion and wire trimming |
| Conductor Capacity | Eight wires per operation |
| Compatible Jack Type | DINTEK horizontal ezi-JACK90 E-Jacks |
| Supported Cabling Categories | Cat5e, Cat6, and Cat6A, with compatible jacks |
| Primary Application | Structured network cabling installation and termination |
Applications
- Horizontal keystone E-Jack termination
- Structured cabling installation in offices and commercial buildings
- Cat5e, Cat6, and Cat6A network cabling projects
- Network outlet and patch-panel installation using compatible jacks
- Telecommunications and LAN infrastructure deployment
- Professional network installer and technician toolkits
Compatibility and Usage Notes
The 6103-01005 is the horizontal ezi-TOOL90 version. It should be used with compatible DINTEK horizontal ezi-JACK90 modules; it is not the same as the 6103-01006 vertical ezi-TOOL180 version. Confirm the jack type and orientation before purchasing. Compatible multi-use E-Jacks may also support termination with a standard punch-down tool, according to DINTEK documentation.
Dintek 6103-01005 e-Tool Price in Bangladesh
Looking for the Dintek 6103-01005 ezi-TOOL90 in Bangladesh? Datacom Technologies (BD) can help you check current pricing, stock availability, and compatibility with your DINTEK keystone jacks. Price and availability may vary depending on stock, sourcing, and warranty or package conditions.
For product details or a quotation, contact sales@datacom.com.bd.
