Moxa EDS-P206A Series Specification TableSpecification |
Details |
|---|
| Series / Model | Moxa EDS-P206A Series (e.g., EDS-P206A-4PoE) |
| Switch Type | 6-port Unmanaged Industrial Ethernet Switch with PoE+ |
| Ethernet Ports | 6 × 10/100BaseT(X) RJ45 |
| PoE+ Ports | 4 ports with IEEE 802.3af/at PoE/PoE+ support (Ports 1–4) |
| Uplink Ports | 2 × 10/100BaseT(X) standard RJ45 |
| PoE Power per Port | Up to 30 W / port |
| Total PoE Power Budget | ~120 W total |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af/at |
| Switching Type | Store-and-forward |
| MAC Table Size | ~2 K entries |
| Packet Buffer Size | ~768 kbits |
| Power Input | Redundant 12/24/48 VDC (12–57 VDC range) |
| Protection | Overload & reverse polarity protection |
| Housing / IP Rating | Rugged metal housing, IP30 |
| Mounting | DIN-rail (standard); optional wall mount kit |
| Operating Temp. (Std) | –10 °C to 60 °C |
| Operating Temp. (-T) | –40 °C to 75 °C (extended models) |
| Storage Temp. | –40 °C to 85 °C |
| Humidity | 5 %–95 % non-condensing |
| Certifications | CE, FCC, UL508, EMC/EMS industrial standards |
| MTBF | ~1,398,743 hrs |
| Dimensions | ~50.3 × 114 × 70 mm |
| Weight | ~375 g |
Description For Moxa EDS-P206A Series
The Moxa EDS-P206A Series are rugged 6-port unmanaged Ethernet switches designed for industrial networking applications where both Ethernet connectivity and Power-over-Ethernet (PoE+) power delivery are required. These switches come with four IEEE 802.3af/at-compliant PoE+ ports that can supply up to 30 W of power per port, and two standard 10/100 Mbps RJ45 ports for uplink connectivity. By centralizing data and power over a single cable, the EDS-P206A simplifies installations of IP cameras, wireless access points, sensors, and other powered devices in automation, surveillance, and IoT edge deployments.
With unmanaged plug-and-play operation, the switch requires no configuration, making it ideal for straightforward networking. It supports standard Ethernet features such as full/half duplex, auto-negotiation, and auto MDI/MDI-X to ensure broader device compatibility. The EDS-P206A also includes redundant dual DC power inputs (12/24/48 VDC) with protection against overload and reverse polarity for enhanced reliability in industrial environments.
The compact IP30 metal housing and DIN-rail mount design allow easy integration into control cabinets or field panels, while extended temperature models (-40 °C to 75 °C) provide dependable operation in harsh conditions. Industrial certifications such as CE, FCC, and UL508 ensure compliance with electromagnetic and safety standards, and its long MTBF rating demonstrates strong long-term reliability. Overall, the EDS-P206A Series is a cost-effective and robust solution for deploying PoE+ networks in demanding industrial settings.

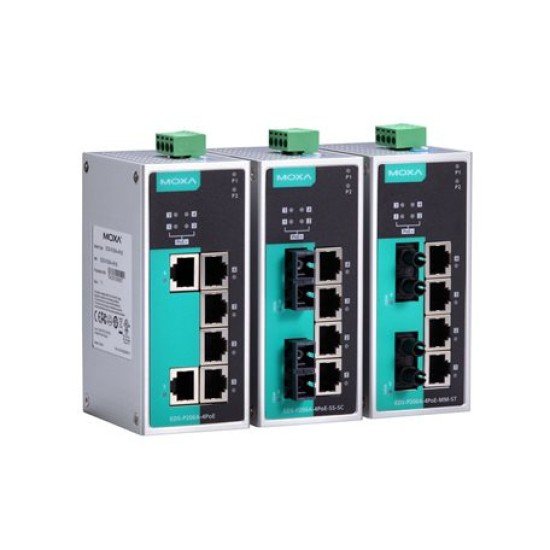

EDS-P206A Series Reliable 6-Port Unmanaged PoE+ Ethernet Switches
Looking for a durable, reliable, and high-performance industrial Ethernet switch with Power-over-Ethernet support? The EDS-P206A Series 6-Port Unmanaged PoE+ Ethernet Switches are engineered for industrial automation, CCTV surveillance, access control, IoT systems, and smart building networks. With simplified plug-and-play setup and robust industrial-grade design, these switches deliver stable data and power delivery over Ethernet, reducing installation cost and complexity.
Key Features
✔ 6 Ports with PoE+ Support
- The EDS-P206A Series includes 4 PoE+ ports and 2 standard 10/100Base-T(X) ports, which supply both data and power to connected devices like IP cameras, wireless access points, VoIP phones, sensors, and automation controllers.
✔ PoE+ Power Delivery
- Supports IEEE 802.3at PoE+ standard, providing up to 30 W per port, which eliminates the need for separate power adaptors and simplifies cabling.
✔ Unmanaged & Plug-and-Play Design
- No configuration required — just connect your devices and the switch begins working. Perfect for integrators who want quick deployment and reduced setup time.
✔ Redundant Power Inputs
- Dual 12/24/48 VDC power inputs ensure the switch keeps operating even if one power source fails — a must-have for critical network applications.
✔ Industrial-Grade Rugged Design
- Built with IP30 metal housing and DIN-rail mountable design, the EDS-P206A Series withstands shock, vibration, and electrical noise found in factories, plants, outdoor cabinets, and other demanding environments.
✔ Wide Operating Temperature Range
- Standard models operate from -10 °C to 60 °C, and extended models can function from -40 °C to 75 °C, making them suitable for extreme environmental conditions.
Why Choose EDS-P206A Series?
The EDS-P206A Series combines industrial reliability with PoE+ power delivery in a compact, plug-and-play package. Whether you are setting up security cameras, powering wireless devices, or building IoT infrastructure, these switches deliver dependable performance with minimal maintenance.
Applications
- IP CCTV Surveillance Systems
- Factory Automation & Control Networks
- Smart Building & Access Control
- Wireless AP and IoT Deployments
- Transportation & Energy Systems
Buy From Datacom Technologies BD
Get authentic EDS-P206A Series Unmanaged PoE+ Ethernet Switches with local warranty, technical support, and competitive pricing from Datacom Technologies BD. Fast delivery across Bangladesh, expert advice, and genuine products make your purchase safe and reliable.
Buy Moxa EDS-P206A Series Reliable 6-Port Unmanaged PoE+ Ethernet Switches at the Best Price from Datacom Technologies BD.
In Bangladesh, you can get Moxa EDS-P206A Series Reliable 6-Port Unmanaged PoE+ Ethernet Switches From Datacom Technologies BD. We have a large collection of latest Moxa Ethernet Switch to purchase. Order Online Or Visit our Office to get yours at lowest price. The Moxa EDS-P206A Series Reliable 6-Port Unmanaged PoE+ Ethernet Switches comes with 1 Year warranty.
