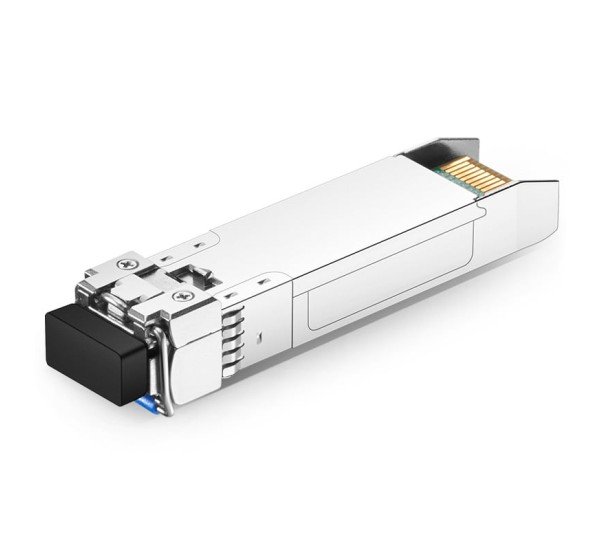

Extreme Networks® 10310-DW4851 Compatible TAA 10GBase-DWDM SFP+ Transceiver

About Extreme Networks® 10310-DW4851 Compatible TAA 10GBase-DWDM SFP+ Transceiver in Bangladesh

The Extreme Networks® 10310-DW4851 Compatible TAA 10GBase-DWDM SFP+ Transceiver is a high-performance DWDM optical transceiver designed for 10 Gigabit Ethernet connectivity over long-distance single-mode fiber networks. It supports transmission distances of up to 80km using a 1548.52nm wavelength and LC optical connector.

This compatible transceiver uses C-Band DWDM Channel 36 with 100GHz channel spacing and is designed to provide reliable optical connectivity for compatible Extreme Networks® networking equipment. It also supports Digital Optical Monitoring (DOM) for real-time monitoring of operating parameters.

Extreme Networks® 10310-DW4851 10GBase-DWDM SFP+ Specifications & Features

Overview

The 10310-DW4851 compatible transceiver is designed for long-distance 10Gbps optical networking. Its DWDM technology allows multiple optical wavelengths to be used over the same single-mode fiber infrastructure, making it suitable for high-capacity network links and long-haul connectivity.

The transceiver operates at 1548.52nm on DWDM Channel 36 and provides up to 80km reach over single-mode fiber. The LC connector provides a standard optical interface for compatible fiber infrastructure.

Buy Extreme Networks® 10310-DW4851 Compatible SFP+ in Bangladesh

Purchase the Extreme Networks® 10310-DW4851 Compatible TAA 10GBase-DWDM SFP+ Transceiver from Datacom Technologies (BD). We supply Extreme Networks® compatible optical transceivers, SFP/SFP+ modules, QSFP/QSFP28 optics and enterprise networking hardware in Bangladesh with competitive pricing and technical support.

Key Features

• 10Gbps 10GBase-DWDM connectivity
• 80km long-distance transmission
• 1548.52nm optical wavelength
• DWDM C-Band Channel 36
• 100GHz channel spacing
• Single-Mode Fiber (SMF) support
• LC optical connector
• SFP+ form factor
• Digital Optical Monitoring (DOM)
• 0°C to 70°C operating temperature
• TAA compliant
• Compatible with Extreme Networks® 10310-DW4851

Applications

• Extreme Networks® Switches
• 10 Gigabit Ethernet Networks
• DWDM Optical Networks
• Long-Distance Data Center Connectivity
• Metro Ethernet Networks
• Enterprise WAN Connectivity
• Service Provider Networks
• Campus Network Interconnection
• Data Center Interconnects
• Long-Haul Fiber Links

10Gbps DWDM Connectivity

The 10310-DW4851 compatible SFP+ provides 10Gbps optical connectivity for high-bandwidth network applications. It is designed for networks requiring reliable long-distance transmission over single-mode fiber.

Its DWDM capability allows multiple optical channels to share the same fiber infrastructure, helping organizations increase fiber capacity without deploying additional physical fiber pairs.

80km Transmission Distance

With a specified reach of up to 80km, this transceiver is designed for long-distance optical links. It can be suitable for connecting geographically separated network locations, data centers, enterprise facilities and other sites where extended optical reach is required.

Actual transmission distance depends on fiber characteristics, optical loss, connector quality, link budget, network equipment and environmental conditions.

1548.52nm DWDM Wavelength

The transceiver operates at approximately 1548.52nm within the C-Band DWDM spectrum. This wavelength is associated with ITU Channel 36 and 100GHz channel spacing.

Using the specified wavelength and channel is important when deploying DWDM optics in a wavelength-division multiplexed system. The optical channel should match the corresponding DWDM equipment and network design.

Single-Mode Fiber Support

The 10310-DW4851 compatible module is designed for Single-Mode Fiber (SMF). SMF is used for long-distance optical communication because it provides lower attenuation and supports significantly longer transmission distances than typical multimode fiber deployments.

LC Connector

The transceiver uses an LC optical connector. LC connectors are widely used in enterprise, data center and telecommunications fiber infrastructure.

Before installation, verify that the existing fiber patch cable and optical infrastructure use the correct LC interface and are suitable for the required wavelength and single-mode transmission.

DWDM C-Band Channel 36

The module operates on C-Band DWDM Channel 36 with 100GHz channel spacing. DWDM channel planning is essential when multiple wavelengths are multiplexed onto a shared fiber.

The transmitting and receiving optical equipment at both ends of the link must be designed to operate on compatible DWDM channels and wavelengths.

Digital Optical Monitoring (DOM)

The transceiver supports Digital Optical Monitoring (DOM). DOM provides access to operating information that can assist network administrators with optical link monitoring and troubleshooting.

Depending on the compatible networking platform, DOM information can include parameters such as module temperature, supply voltage and optical transmit/receive levels.

TAA Compliant Transceiver

This compatible 10310-DW4851 transceiver is specified as TAA compliant. Trade Agreements Act compliance can be an important procurement requirement for organizations operating under applicable government purchasing regulations.

Temperature Range

The module is specified for an operating temperature range of 0°C to 70°C, making it suitable for standard commercial-temperature networking environments.

For installations in environments outside this temperature range, an appropriate extended-temperature optical solution should be selected.

Extreme Networks® Compatibility

The transceiver is specifically designed as a compatible replacement for Extreme Networks® 10310-DW4851. Compatible optical modules should always be matched with the network switch or router model, software/firmware requirements and optical specifications of the existing network.

Compatibility should be verified before deployment, particularly in systems that enforce vendor-specific optical module identification or coding.

Long-Distance Network Applications

The 80km reach makes this transceiver appropriate for long-distance optical network applications where standard short-range 10Gbps optics are insufficient.

• Data center interconnects
• Metro network links
• Enterprise WAN connections
• Campus-to-campus connectivity
• Service provider infrastructure
• Long-distance backbone links

DWDM vs Standard 10G SFP+

Compatibility Considerations

Before purchasing or installing the 10310-DW4851 compatible transceiver, verify the following:

• Extreme Networks® equipment compatibility
• 10Gbps SFP+ port availability
• DWDM Channel 36 compatibility
• 1548.52nm wavelength compatibility
• Single-mode fiber infrastructure
• LC connector compatibility
• 80km optical link budget
• Compatible firmware and optical-module support

For DWDM deployments, the optical channel at both ends of the link must be planned correctly. A standard 10G SFP+ optic operating at another wavelength should not be substituted without confirming optical compatibility.

Benefits

• 10Gbps high-speed optical connectivity
• Up to 80km transmission distance
• DWDM C-Band Channel 36
• 1548.52nm wavelength
• 100GHz channel spacing
• Single-mode fiber support
• LC connector
• SFP+ form factor
• DOM monitoring support
• TAA compliant
• Suitable for long-distance enterprise and data center networks

Why Buy from Datacom Technologies (BD)?

Datacom Technologies (BD) supplies Extreme Networks® compatible optical transceivers, SFP/SFP+ modules, QSFP/QSFP28 optics and enterprise networking equipment in Bangladesh. Customers can receive competitive pricing, technical consultation, compatibility assistance and nationwide delivery.

• Call/WhatsApp: +8801748173213
• Email: sales@datacom.com.bd
• Alternative Email: datacomtechnologiesbd@gmail.com
• Office: Tropical Center, 218, Dr. Kudroti Khuda Road, New Elephant Road, Dhaka-1205, Bangladesh

Frequently Asked Questions (FAQ)

Q1: What is the Extreme Networks® 10310-DW4851 compatible transceiver?
It is a TAA-compliant 10GBase-DWDM SFP+ optical transceiver compatible with Extreme Networks® 10310-DW4851.

Q2: What network speed does it support?
The transceiver supports 10Gbps 10GBase connectivity.

Q3: What is the maximum transmission distance?
The specified reach is up to 80km over compatible single-mode fiber.

Q4: What wavelength does it use?
It operates at approximately 1548.52nm.

Q5: Which DWDM channel does it use?
The module uses ITU DWDM Channel 36 with 100GHz channel spacing.

Q6: What type of fiber does it require?
It is designed for Single-Mode Fiber (SMF).

Q7: What connector does it use?
The optical interface uses an LC connector.

Q8: Does it support DOM?
Yes. The module supports Digital Optical Monitoring (DOM).

Q9: Is the transceiver TAA compliant?
Yes. The compatible module is specified as TAA compliant.

Q10: What is the operating temperature?
The specified operating temperature is 0°C to 70°C.

Q11: Is this a standard 10G SFP+ module?
It is a 10G SFP+ module specifically designed for DWDM applications. It should be used with compatible DWDM equipment and the correct optical channel.

Q12: Can I use it with multimode fiber?
No. This module is designed for Single-Mode Fiber (SMF), which is appropriate for its long-distance DWDM application.

Q13: Can it be used for an 80km link?
Yes, it is specified for up to 80km. Actual achievable distance depends on fiber attenuation, connectors, optical budget and the complete network configuration.

Q14: Is it compatible with Extreme Networks® equipment?
It is specifically designed as a compatible alternative to Extreme Networks® part number 10310-DW4851. Verify the exact switch/router model and software requirements before installation.

Q15: Where can I buy the 10310-DW4851 compatible transceiver in Bangladesh?
You can contact Datacom Technologies (BD) for Extreme Networks® compatible SFP/SFP+ and DWDM transceivers with competitive pricing and technical support.
