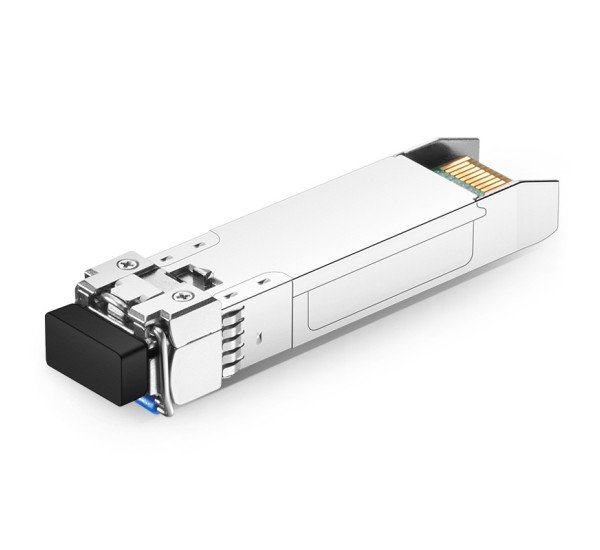

Extreme Networks 10053-1590 1000Base-CWDM SFP Transceiver Module
The Extreme Networks 10053-1590 is a 1Gbps CWDM optical transceiver designed for long-distance Ethernet connectivity over single-mode fiber. Operating at a 1590nm wavelength, the module provides a transmission reach of up to 70km through a standard LC optical interface.
The compact SFP form factor makes the transceiver suitable for compatible Extreme Networks switches and other networking equipment requiring long-reach 1000Base-CWDM connectivity.
Extreme Networks 1000Base-CWDM Connectivity
The 10053-1590 is designed for 1000Base-CWDM Gigabit Ethernet applications. Its CWDM architecture uses the 1590nm optical channel as part of a wavelength-division multiplexed fiber network, allowing multiple optical channels to share the same fiber infrastructure.
The module is suitable for long-distance network links where standard short-range Gigabit Ethernet optics do not provide sufficient reach.
1590nm Single-Mode Fiber Transmission
The transceiver operates at 1590nm and is designed for single-mode fiber (SMF). The specified reach is up to 70km, making it suitable for extended network connections between geographically separated network locations.
Long-Distance 1Gbps Connectivity
The 70km optical reach makes the module appropriate for telecommunications infrastructure, enterprise backbone links, metro network connections, and other long-distance Gigabit Ethernet deployments.
SFP Form Factor and LC Interface
The compact SFP form factor provides a hot-swappable interface for compatible networking equipment. The optical connection uses an LC connector for single-mode fiber connectivity.
Optical Link Considerations
The specified 70km reach is dependent on the optical link budget and deployed fiber conditions. Fiber attenuation, connector losses, splices, and the characteristics of the complete CWDM system should be considered when planning a long-distance link.
Technical Specifications
| Specification | Details |
| Brand | Extreme Networks |
| Part Number | 10053-1590 |
| Product Type | 1000Base-CWDM SFP Optical Transceiver |
| Form Factor | SFP |
| Data Rate | 1Gbps |
| Optical Standard | 1000Base-CWDM |
| Wavelength | 1590nm |
| Maximum Distance | 70km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector | LC |
| Transceiver Type | CWDM |
| Operating Temperature | 0°C to 70°C |
Applications
- 1000Base-CWDM Ethernet networks
- Long-distance Gigabit Ethernet links
- Enterprise backbone networks
- Telecommunications infrastructure
- Metro network connectivity
- CWDM fiber networks
- Long-distance single-mode fiber connections
Compatibility
The Extreme Networks 10053-1590 is designed for compatible Extreme Networks equipment supporting 1000Base-CWDM SFP optical transceivers. The exact switch or network platform should be checked against the manufacturer's supported transceiver list before installation.
The 1590nm CWDM channel should also be matched with the appropriate CWDM multiplexer, demultiplexer, and optical infrastructure when used in a wavelength-division multiplexed network.
Buy Extreme Networks 10053-1590 in Bangladesh
Datacom Technologies (BD) supplies Extreme Networks optical transceivers, networking equipment, fiber connectivity products, and enterprise network hardware in Bangladesh. The Extreme Networks 10053-1590 is suitable for compatible Gigabit Ethernet environments requiring long-distance 1590nm CWDM connectivity.
For enterprise, ISP, telecom, data center, and project requirements, customers can contact Datacom Technologies (BD) for product selection assistance, technical consultation, and professional networking equipment supply.
