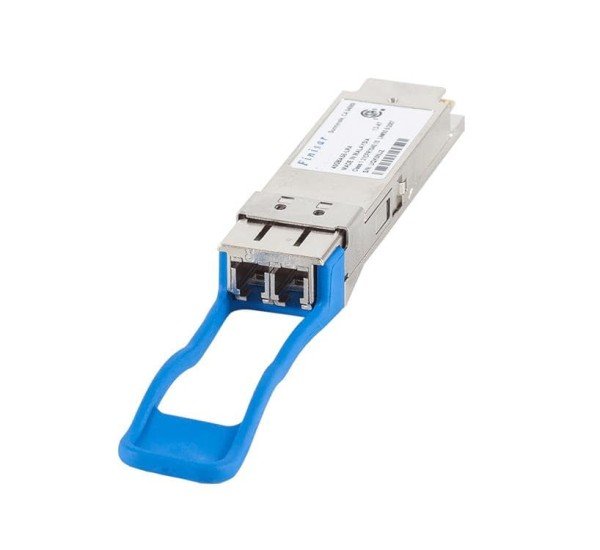

Finisar FTLC1151RDPL 100Gbps 10KM QSFP28 Transceiver Module
The Finisar FTLC1151RDPL is a 100Gbps QSFP28 optical transceiver designed for high-speed network connectivity over single-mode fiber. It is built for 100GBASE-LR4 applications and supports optical links of up to 10km, making it suitable for data center interconnects, enterprise networks, and other high-bandwidth infrastructure.
The module uses a four-channel LAN-WDM optical architecture to carry the 100Gbps signal over a duplex LC fiber connection. Its QSFP28 form factor provides a compact, hot-pluggable interface for compatible 100Gbps networking equipment.
Finisar FTLC1151RDPL 100GBASE-LR4 Connectivity
The FTLC1151RDPL is designed around the 100GBASE-LR4 optical standard for long-reach 100GbE connectivity. It supports an aggregate data rate of approximately 103.1Gbps and is designed for transmission over up to 10km of single-mode fiber.
The four optical channels operate across the LAN-WDM wavelength grid at 1295.56nm, 1300.05nm, 1304.58nm, and 1309.14nm. These channels are multiplexed into the fiber connection for high-capacity optical transmission.
10KM Single-Mode Fiber Transmission
The transceiver is designed for single-mode fiber (SMF) and supports a maximum link length of 10km. This makes it suitable for longer optical connections where short-reach multimode 100G modules are not appropriate.
LAN-WDM Optical Architecture
The FTLC1151RDPL uses four LAN-WDM optical channels based on a 4 × 26Gbps transmitter architecture. The wavelength channels are combined for transmission and separated at the receiving end to provide the required 100Gbps optical link.
QSFP28 and Duplex LC Interface
The QSFP28 form factor provides a compact, hot-pluggable interface for compatible 100Gbps network equipment. The module uses duplex LC receptacles for connection to the single-mode fiber infrastructure.
Digital Diagnostic Monitoring
The FTLC1151RDPL provides digital diagnostic functions through its I2C management interface. Compatible host equipment can use these functions to monitor operating parameters of the optical transceiver.
Technical Specifications
| Specification | Details |
| Brand | Finisar |
| Model | FTLC1151RDPL |
| Product Type | 100Gbps QSFP28 Optical Transceiver |
| Form Factor | QSFP28 |
| Optical Standard | 100GBASE-LR4 |
| Aggregate Data Rate | 103.1Gbps |
| Maximum Distance | 10km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Wavelengths | 1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm |
| Connector | Duplex LC |
| Power Consumption | < 3.5W |
| Operating Temperature | 0°C to 70°C |
Applications
- 100GbE data center interconnects
- Enterprise backbone networks
- High-speed switch-to-switch connectivity
- Network aggregation
- High-performance computing networks
- 10km single-mode fiber links
Compatibility
The Finisar FTLC1151RDPL is designed for compatible networking equipment supporting QSFP28 100GBASE-LR4 optical transceivers. Before installation, verify the host device's supported transceiver list, QSFP28 interface, firmware requirements, and optical link specifications.
The connected fiber infrastructure should also meet the requirements for a 10km single-mode optical link to ensure reliable operation.
Buy Finisar FTLC1151RDPL in Bangladesh
Datacom Technologies (BD) supplies Finisar optical transceivers, enterprise networking equipment, fiber connectivity products, and data center hardware in Bangladesh. The Finisar FTLC1151RDPL is suitable for compatible 100Gbps network environments requiring 10km single-mode fiber connectivity.
For corporate, data center, ISP, and project requirements, customers can contact Datacom Technologies (BD) for product selection assistance, technical consultation, and professional networking equipment supply.
