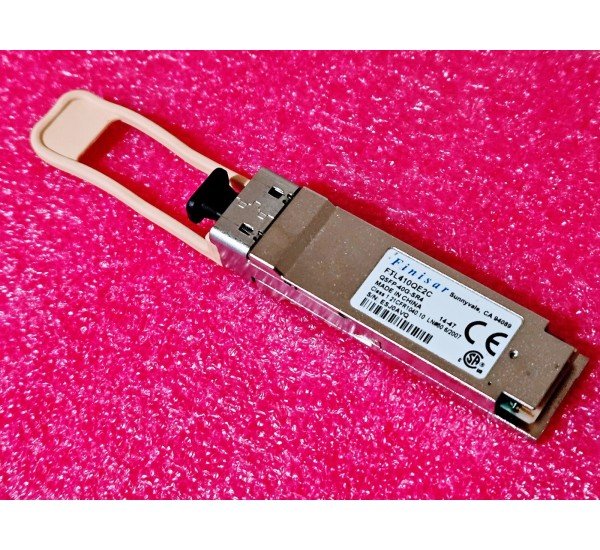

Finisar FTL410QE2C QSFP-40G-SR4 QSFP+ Transceiver Module

About Finisar FTL410QE2C QSFP-40G-SR4 QSFP+ Transceiver Module in Bangladesh

The Finisar FTL410QE2C QSFP-40G-SR4 is a high-speed 40Gbps QSFP+ optical transceiver designed for short-reach 40 Gigabit Ethernet networking over multimode fiber. It uses 850nm VCSEL optical technology and four parallel optical lanes to provide high-bandwidth connectivity for data center, enterprise, and high-performance networking environments.

The FTL410QE2C follows the 40GBASE-SR4 architecture, using four optical lanes operating at approximately 10.3125Gbps each to deliver an aggregate 40Gbps connection. The module is designed for short-distance multimode fiber links and is suitable for switch-to-switch, server-to-switch, network aggregation, and other 40G data center applications.

The compact QSFP+ form factor allows high-density 40G connectivity on compatible networking equipment. The optical interface uses an MPO/MTP connector and is designed for multimode fiber infrastructure. Transmission distance depends on the fiber grade and complete optical link; typical SR4 deployment supports up to 100 meters over OM3 and up to 150 meters over OM4 multimode fiber.

Before deployment, the exact host platform, transceiver compatibility, fiber grade, MPO/MTP polarity, lane mapping, optical budget, and supported optics list should be verified.

Finisar FTL410QE2C QSFP-40G-SR4 Specifications & Features

Overview

The Finisar FTL410QE2C QSFP-40G-SR4 Transceiver Module provides high-speed 40Gbps optical connectivity for short-reach multimode fiber networks. Its 850nm VCSEL-based design and four-lane parallel optical architecture make it suitable for high-density 40G Ethernet deployments.

The module is particularly useful for connecting switches, servers, storage systems, network aggregation devices, and other compatible 40G equipment inside data centers and enterprise facilities.

The 40GBASE-SR4 architecture uses four parallel optical lanes. Each lane operates at approximately 10.3125Gbps, resulting in an aggregate 40Gbps optical connection. The parallel optical interface requires appropriate MPO/MTP cabling with correct polarity and lane mapping.

Buy Finisar FTL410QE2C QSFP-40G-SR4 in Bangladesh

Purchase the Finisar FTL410QE2C QSFP-40G-SR4 QSFP+ Transceiver Module from Datacom Technologies (BD). We supply Finisar optical transceivers, QSFP+ modules, SFP/SFP+ optics, fiber-optic networking products, enterprise switches, data center equipment, and high-speed optical connectivity solutions with competitive pricing, technical consultation, deployment assistance, and nationwide delivery throughout Bangladesh.

Key Features

• 40Gbps high-speed optical connectivity
• 40GBASE-SR4 optical technology
• QSFP+ compact pluggable form factor
• 850nm VCSEL-based optical transmission
• Four parallel 10.3125Gbps optical lanes
• Multimode fiber support
• Up to 100m over OM3 fiber
• Up to 150m over OM4 fiber
• MPO/MTP parallel optical connector
• Hot-pluggable QSFP+ design
• Suitable for high-density data center networking
• Ideal for short-reach 40G Ethernet links

Applications

• 40G Data Center Networking
• Switch-to-Switch Connectivity
• Server-to-Switch Connectivity
• Rack-to-Rack Fiber Links
• Network Aggregation
• Enterprise Core Networking
• Storage Networking
• High-Performance Computing
• Data Center Network Upgrades
• Short-Reach Multimode Fiber Links

40GBASE-SR4 Optical Technology

40GBASE-SR4 is a short-reach 40Gbps Ethernet optical standard designed for multimode fiber. The Finisar FTL410QE2C uses four parallel optical lanes to transmit the aggregate 40Gbps data stream.

The 850nm VCSEL architecture is optimized for short-distance multimode fiber applications commonly found in data centers. This provides a high-bandwidth solution while maintaining the compact QSFP+ form factor.

850nm Multimode Fiber Connectivity

The FTL410QE2C uses 850nm optical transmission and is designed for multimode fiber. Typical 40GBASE-SR4 deployment supports up to 100 meters over OM3 fiber and up to 150 meters over OM4 fiber, subject to the complete optical channel and link budget.

For reliable operation, the fiber grade, connector loss, polarity, lane mapping, patching and total optical budget should be checked before installation.

MPO/MTP Optical Interface

The Finisar FTL410QE2C uses an MPO/MTP parallel optical interface. Unlike duplex-LC 40G solutions, SR4 uses multiple parallel fibers for transmission and reception.

Correct MPO/MTP connector polarity and lane mapping are essential for establishing a 40GBASE-SR4 link. The cabling system should be selected according to the transceiver and network architecture.

QSFP+ Form Factor

The QSFP+ form factor provides a compact, high-density interface for 40Gbps networking. Compatible switches, routers, servers, storage systems, and network adapters can use supported QSFP+ ports for 40G optical connectivity.

The pluggable design simplifies optical module installation, replacement, maintenance, and network expansion on compatible host platforms.

Compatibility

• Compatible Finisar 40G QSFP+ networking platforms
• Compatible 40G QSFP+ switches
• Compatible 40G routers
• Compatible data center networking equipment
• Compatible enterprise networking platforms
• Compatible 40G network adapters
• Compatible OM3 multimode fiber infrastructure
• Compatible OM4 multimode fiber infrastructure

Actual compatibility depends on the host equipment, firmware, transceiver coding, supported optics list, optical specifications, and platform requirements. Always verify the exact host model before purchase or installation.

Benefits

• 40Gbps high-bandwidth optical connectivity
• Short-reach 850nm optical technology
• Supports OM3 and OM4 multimode fiber
• Up to 100m over OM3
• Up to 150m over OM4
• Compact QSFP+ form factor
• High-density data center connectivity
• Parallel MPO/MTP optical interface
• Suitable for switch-to-switch links
• Suitable for server and storage networking

Why Buy from Datacom Technologies (BD)?

Datacom Technologies (BD) supplies networking and data center infrastructure products in Bangladesh, including Finisar optical transceivers, QSFP+ modules, SFP/SFP+ optics, fiber-optic equipment, enterprise switches, server networking components, and high-speed data center connectivity solutions. Customers can receive competitive pricing, technical consultation, deployment assistance, and after-sales support.

• Call/WhatsApp: +8801748173213
• Email: sales@datacom.com.bd
• Alternative Email: datacomtechnologiesbd@gmail.com
• Office: Tropical Center, 218, Dr. Kudroti Khuda Road, New Elephant Road, Dhaka-1205, Bangladesh

Frequently Asked Questions (FAQ)

Q1: What is the Finisar FTL410QE2C?
The FTL410QE2C is a 40Gbps QSFP+ optical transceiver designed for 40GBASE-SR4 short-reach Ethernet connectivity over multimode fiber.

Q2: What is the data rate?
The module provides an aggregate 40Gbps optical data rate through four parallel optical lanes.

Q3: What wavelength does the FTL410QE2C use?
The module uses 850nm VCSEL-based optical transmission.

Q4: What type of fiber does it use?
The FTL410QE2C is designed for multimode fiber, including OM3 and OM4 infrastructure.

Q5: What is the transmission distance?
Typical 40GBASE-SR4 reach is up to 100 meters over OM3 and up to 150 meters over OM4, subject to the complete optical link budget.

Q6: What connector does the Finisar FTL410QE2C use?
It uses an MPO/MTP parallel optical connector.

Q7: Is the FTL410QE2C suitable for data centers?
Yes. Its 40GBASE-SR4 architecture, compact QSFP+ form factor, and multimode fiber support make it suitable for high-density data center networking.

Q8: Is the FTL410QE2C hot-pluggable?
The QSFP+ form factor is designed for pluggable installation. Actual hot-plug functionality depends on the host networking platform.

Q9: Can the FTL410QE2C be used with single-mode fiber?
No. The SR4 architecture is intended for short-reach multimode fiber. A suitable single-mode 40G LR4 or equivalent transceiver should be used for longer-distance links.

Q10: Is the FTL410QE2C the same as a 40G LR4 module?
No. The FTL410QE2C is a 40GBASE-SR4 short-reach multimode module using 850nm optics and MPO/MTP connectivity. LR4 modules are designed for longer-distance single-mode fiber and normally use duplex LC connectivity.

Q11: What cabling is required?
A compatible MPO/MTP multimode fiber assembly with the correct polarity and lane mapping is required for a 40GBASE-SR4 connection.

Q12: Where can I buy the Finisar FTL410QE2C in Bangladesh?
You can contact Datacom Technologies (BD) for Finisar 40G QSFP+ optical transceivers, SFP/SFP+ modules, fiber-optic networking products, data center equipment, and high-speed optical connectivity solutions with competitive pricing and nationwide delivery.
