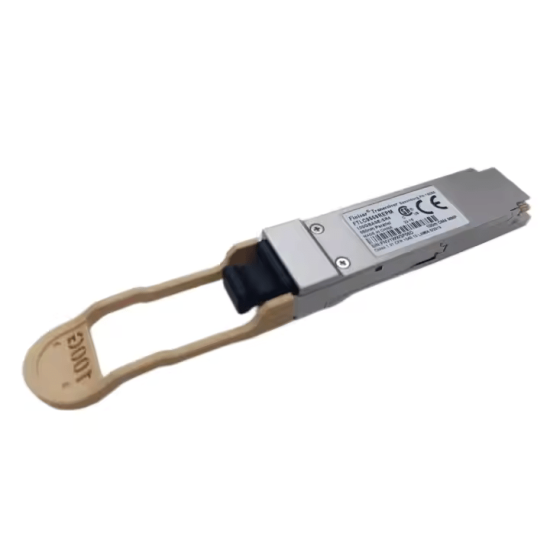

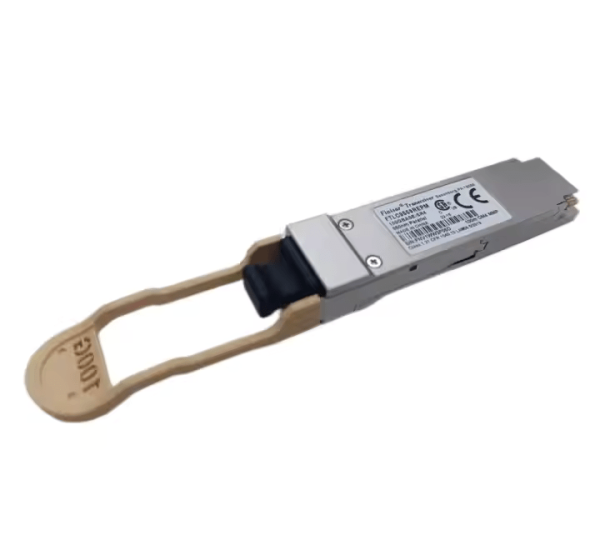

FINISAR FTLC9559REPM 100G Transceiver Module

About Finisar FTLC9559REPM 100G QSFP28 SR4 850nm 100m Optical Transceiver in Bangladesh

The Finisar FTLC9559REPM is a 100Gb/s QSFP28 optical transceiver designed for high-speed Ethernet connectivity over multimode fiber. It supports the 100GBASE-SR4 standard and is designed for short-reach 100 Gigabit Ethernet links in data centers, enterprise networks and high-performance networking environments.

The FTLC9559REPM uses an 850nm VCSEL-based optical transmitter and supports up to 100 meters over OM4 multimode fiber. It uses four 25Gb/s optical lanes to provide an aggregate 100Gb/s Ethernet connection. :contentReference[oaicite:1]{index=1}

Finisar FTLC9559REPM 100G QSFP28 Specifications & Features

Overview

The Finisar FTLC9559REPM provides high-bandwidth 100GbE connectivity in a compact QSFP28 form factor. It is designed for short-distance data center and enterprise network links where high throughput and efficient fiber connectivity are required.

The module complies with the QSFP28 MSA and IEEE 802.3bm 100GBASE-SR4 specifications. Digital diagnostic functionality is available through the I²C interface. :contentReference[oaicite:2]{index=2}

Buy Finisar FTLC9559REPM 100G QSFP28 Transceiver in Bangladesh

Purchase the Finisar FTLC9559REPM 100G QSFP28 SR4 optical transceiver from Datacom Technologies (BD). We supply enterprise optical transceivers, fiber networking products, data center switches, server connectivity equipment and high-speed networking hardware in Bangladesh with competitive pricing and technical support.

Key Features

• 100Gb/s aggregate data rate
• QSFP28 hot-pluggable form factor
• 100GBASE-SR4 Ethernet support
• 850nm VCSEL-based optical transmission
• Up to 100m reach over OM4 multimode fiber
• 4 × 25Gb/s optical lanes
• 4 × 25G electrical interface
• MPO-12 fiber connection
• 3.3V single power supply
• Power dissipation below 2.5W
• Commercial temperature range of 0°C to 70°C
• Digital diagnostics through I²C
• QSFP28 MSA compliant
• IEEE 802.3bm compliant
• RoHS-6 compliant

Applications

• 100 Gigabit Ethernet Networks
• Data Center Interconnects
• Enterprise Data Centers
• High-Speed Server Networking
• Core Network Switching
• Data Center Switch Uplinks
• High-Performance Computing Networks
• Storage Area Network Infrastructure
• Network Aggregation
• Short-Reach 100GbE Links

100Gb/s High-Speed Networking

The FTLC9559REPM is designed for 100 Gigabit Ethernet applications, providing an aggregate data rate of up to 103.1Gb/s at the optical module level. The module uses four optical channels operating at 25Gb/s each to provide high-bandwidth network connectivity. :contentReference[oaicite:3]{index=3}

This makes it suitable for high-density switching environments, server aggregation, data center uplinks and other applications requiring 100GbE connectivity.

100GBASE-SR4 Optical Standard

The FTLC9559REPM supports 100GBASE-SR4, a short-reach 100GbE optical standard designed for multimode fiber infrastructure.

The SR4 architecture uses four parallel optical lanes, each operating at approximately 25Gb/s. This parallel-fiber approach enables high-speed connectivity over short data center distances.

850nm VCSEL Transmission

The module uses an 850nm VCSEL-based transmitter. VCSEL technology is widely used for short-reach multimode fiber applications because it provides an efficient optical solution for high-speed data center links.

The FTLC9559REPM uses four 25Gb/s VCSEL optical channels for the 100GbE connection. :contentReference[oaicite:4]{index=4}

100m OM4 Multimode Fiber Reach

The FTLC9559REPM supports a maximum link length of 100 meters over OM4 multimode fiber. :contentReference[oaicite:5]{index=5}

It is therefore well suited to short-distance connections within data centers, server rooms and network facilities. Actual achievable distance depends on the installed fiber type, connector quality, link loss and network equipment.

MPO-12 Connectivity

The 100GBASE-SR4 implementation uses a parallel-fiber architecture and is designed around an MPO-12 optical connection.

When deploying the FTLC9559REPM, ensure that the fiber patch cable, polarity, connector type and switch transceiver configuration are appropriate for 100GBASE-SR4 operation.

QSFP28 Hot-Pluggable Form Factor

The FTLC9559REPM uses the compact QSFP28 form factor and is designed to be hot-pluggable. This allows compatible network switches and other networking equipment to install or replace the optical module without shutting down the entire system.

Hot-plug operation depends on the host equipment and its operating procedures. Always follow the switch or router manufacturer's installation instructions.

Low-Power 100G Connectivity

The FTLC9559REPM is designed for efficient high-speed networking, with documented power dissipation of less than 2.5W and a single 3.3V power supply. :contentReference[oaicite:6]{index=6}

Low module power consumption is particularly useful in high-density data center environments where many 100GbE ports may be populated in a single switch.

Digital Diagnostics

Digital diagnostic functionality is available through the module's I²C interface, allowing compatible host equipment to monitor optical module operating information. :contentReference[oaicite:7]{index=7}

Actual diagnostic parameters displayed by the host switch depend on the switch platform, firmware and module implementation.

Operating Temperature

The documented commercial operating case-temperature range is 0°C to 70°C. :contentReference[oaicite:8]{index=8}

This range is appropriate for controlled data center and enterprise networking environments. Proper rack airflow and equipment cooling remain important for reliable operation.

100G Data Center Applications

The FTLC9559REPM is particularly suitable for short-distance high-bandwidth connections inside modern data centers.

• Switch-to-switch 100GbE links
• Switch-to-server connectivity
• Data center aggregation
• Core switch uplinks
• High-performance computing clusters
• Storage networking
• Network spine-and-leaf architectures

Finisar FTLC9559REPM vs 100GBASE-LR4

Compatibility Considerations

The FTLC9559REPM is a 100GBASE-SR4 QSFP28 optical module. The host switch, router or server adapter must support QSFP28 100GbE transceivers and the 100GBASE-SR4 standard.

• Compatible QSFP28 port
• 100GBASE-SR4 support
• OM4 multimode fiber for the specified 100m reach
• MPO-12 compatible fiber connection
• Compatible host firmware
• Appropriate optical link polarity

Transceiver compatibility can depend on the host manufacturer's coding, firmware and supported optical-module list. Verify the exact switch or network adapter compatibility before purchase.

Benefits

• 100Gb/s high-speed connectivity
• Compact QSFP28 form factor
• 100GBASE-SR4 support
• 850nm VCSEL technology
• Up to 100m reach over OM4 MMF
• Four-channel 25Gb/s parallel optics
• Hot-pluggable design
• Low power consumption
• Digital diagnostic support
• Ideal for data center networking
• Suitable for high-density 100GbE deployments

Why Buy from Datacom Technologies (BD)?

Datacom Technologies (BD) supplies enterprise optical transceivers, QSFP/QSFP28 modules, fiber networking equipment, data center switches and server connectivity products in Bangladesh. Customers can receive competitive pricing, technical consultation, deployment assistance and nationwide delivery.

• Call/WhatsApp: +8801748173213
• Email: sales@datacom.com.bd
• Alternative Email: datacomtechnologiesbd@gmail.com
• Office: Tropical Center, 218, Dr. Kudroti Khuda Road, New Elephant Road, Dhaka-1205, Bangladesh

Frequently Asked Questions (FAQ)

Q1: What is the Finisar FTLC9559REPM?
The Finisar FTLC9559REPM is a 100Gb/s QSFP28 optical transceiver designed for 100GBASE-SR4 Ethernet over multimode fiber.

Q2: What is the data rate?
The module supports 100Gb/s Ethernet connectivity and a documented aggregate optical bit rate of 103.1Gb/s. :contentReference[oaicite:9]{index=9}

Q3: What form factor does FTLC9559REPM use?
It uses the QSFP28 hot-pluggable form factor.

Q4: What wavelength does FTLC9559REPM use?
It uses an 850nm optical wavelength with VCSEL-based transmission.

Q5: What is the maximum transmission distance?
The documented maximum link length is 100 meters over OM4 multimode fiber. :contentReference[oaicite:10]{index=10}

Q6: Is FTLC9559REPM single-mode or multimode?
It is designed for multimode fiber (MMF) and 100GBASE-SR4 applications.

Q7: What connector does FTLC9559REPM use?
The FTLC9559REPM uses a parallel-optics MPO-12 connection for the SR4 implementation.

Q8: Is FTLC9559REPM hot-pluggable?
Yes. It uses a hot-pluggable QSFP28 form factor. :contentReference[oaicite:11]{index=11}

Q9: What is the operating temperature?
The documented commercial case-temperature range is 0°C to 70°C. :contentReference[oaicite:12]{index=12}

Q10: What type of transmitter does it use?
It uses a 4 × 25Gb/s 850nm VCSEL-based transmitter. :contentReference[oaicite:13]{index=13}

Q11: Does FTLC9559REPM support digital diagnostics?
Yes. Digital diagnostic functions are available through the I²C interface. :contentReference[oaicite:14]{index=14}

Q12: How much power does the module consume?
The documented power dissipation is less than 2.5W. :contentReference[oaicite:15]{index=15}

Q13: Is FTLC9559REPM suitable for 100GBASE-LR4?
No. FTLC9559REPM is a 100GBASE-SR4 multimode-fiber module. It should not be substituted for a 100GBASE-LR4 single-mode module.

Q14: Can FTLC9559REPM be used with OM4 fiber?
Yes. OM4 multimode fiber is the specified medium for the documented 100m maximum link length. :contentReference[oaicite:16]{index=16}
